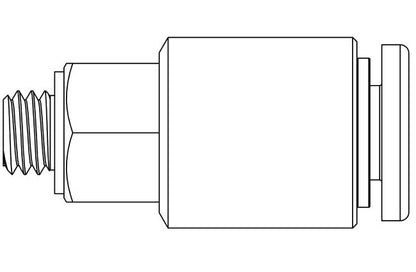

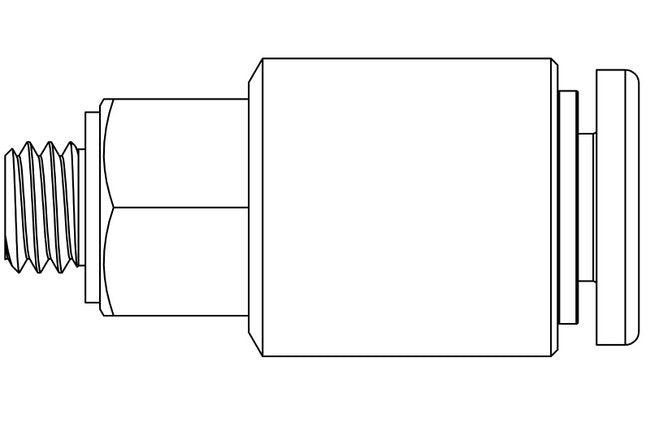

Precision Metal Orifice Tube Adapters, 10-32 UNF x Tube
Precision Metal Orifice Tube Adapters, 10-32 UNF x Tube
SKU:PRE-99152a
Enhance fluid control with Precision Metal Orifice Tube Adapters. Brass/Plastic construction, 0.0071 in Orifice Diameter, and 140 psig capacity. Compliant with Federal standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifice Tube Adapters, 10-32 UNF x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Tube Adapters, 10-32 UNF x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

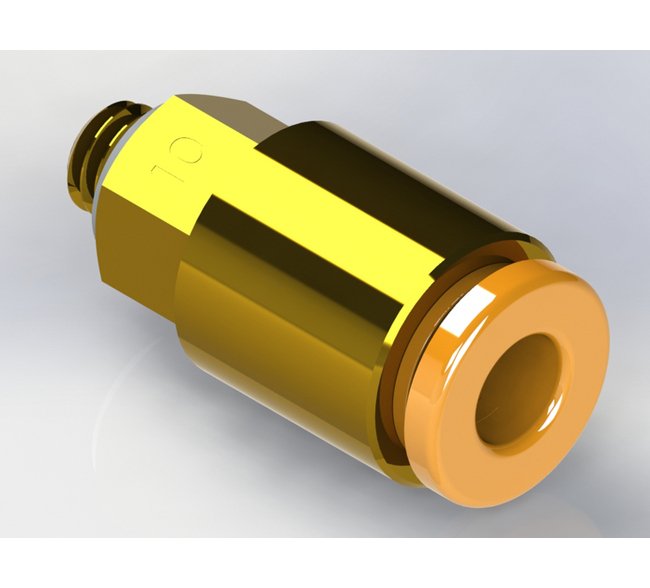

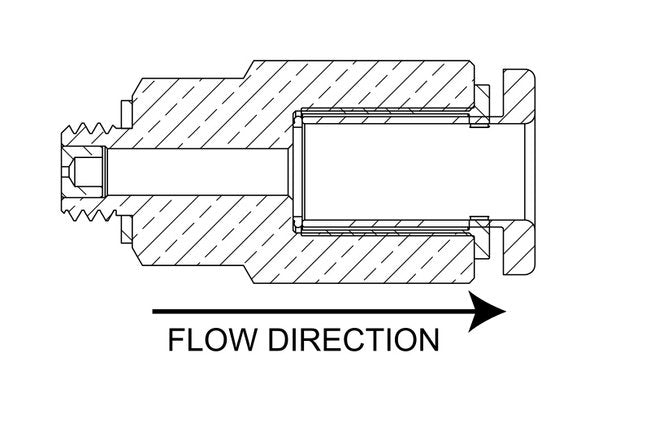

Enhance your fluid control systems with our Precision Metal Orifice Tube Adapters. Crafted from Brass/Plastic with Buna-N seals, these adapters offer precision with an Orifice Diameter of 0.0071 in. They can withstand up to 140 psig pressure, ensuring reliable performance. Ideal for air and water flow applications. Complies with Federal/DoD procurement standards and FAR compliance factors, meeting the highest quality requirements.
Product Specifications
Dimensions Orifice Diameter
0.0071 in
Dimensions Total Length
0.95 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.269 | 5 psig: 0.64 | 10 psig: 0.91 | 15 psig: 1.14 | 20 psig: 1.38 | 25 psig: 1.59 | 30 psig: 1.80 | 40 psig: 2.22 | 50 psig: 2.67 | 60 psig: 3.09 | 70 psig: 3.54 | 80 psig: 3.96 | 90 psig: 4.41 | 100 psig: 4.83
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.127 | 5 psig (34.5 kPag): 0.30 | 10 psig (69.0 kPag): 0.43 | 15 psig (103.4 kPag): 0.54 | 20 psig (137.9 kPag): 0.65 | 25 psig (172.4 kPag): 0.75 | 30 psig (206.9 kPag): 0.85 | 40 psig (275.8 kPag): 1.05 | 50 psig (344.8 kPag): 1.26 | 60 psig (413.7 kPag): 1.46 | 70 psig (482.7 kPag): 1.67 | 80 psig (551.6 kPag): 1.87 | 90 psig (620.6 kPag): 2.08 | 100 psig (689.5 kPag): 2.28
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.568 | 20 In. Hg.: 0.568 | 30 In. Hg.: 0.568
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.268 | 20 In. Hg. (508 Mm. Hg.): 0.268 | 30 In. Hg. (762 Mm. Hg.): 0.268
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.405 | 10 In. Hg.: 0.521
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.191 | 10 In. Hg. (254 Mm. Hg.): 0.246
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0012 | 2 psig: 0.0017 | 3 psig: 0.0021 | 4 psig: 0.0024 | 5 psig: 0.0027 | 6 psig: 0.0029 | 7 psig: 0.0032 | 8 psig: 0.0034 | 9 psig: 0.0036 | 10 psig: 0.0038 | 15 psig: 0.0046 | 20 psig: 0.0054 | 30 psig: 0.0066 | 40 psig: 0.0076 | 50 psig: 0.0085 | 60 psig: 0.0093 | 70 psig: 0.0100 | 80 psig: 0.0107 | 90 psig: 0.0114 | 100 psig: 0.0120
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0045 | 2 psig (13.8 kPag): 0.0064 | 3 psig (20.7 kPag): 0.0079 | 4 psig (27.6 kPag): 0.0091 | 5 psig (34.5 kPag): 0.0102 | 6 psig (41.4 kPag): 0.0102 | 7 psig (48.3 kPag): 0.0120 | 8 psig (55.2 kPag): 0.0128 | 9 psig (62.1 kPag): 0.0136 | 10 psig (69 kPag): 0.0144 | 15 psig (103.4 kPag): 0.0176 | 20 psig (137.9 kPag): 0.0203 | 30 psig (206.9 kPag): 0.0249 | 40 psig (275.8 kPag): 0.0287 | 50 psig (344.8 kPag): 0.0321 | 60 psig (413.7 kPag): 0.0352 | 70 psig (482.7 kPag): 0.0380 | 80 psig (551.6 kPag): 0.0406 | 90 psig (620.6 kPag): 0.0431 | 100 psig (689.5 kPag): 0.0454
Specifications Connection A
10-32 UNF Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.0012
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
7
Specifications Screened
None
Specifications Seal Material
Buna-N
