Precision Metal Orifice Tube Adapters
Precision Metal Orifice Tube Adapters
SKU:PRE-35875e
Reliable Precision Metal Orifice Tube Adapters for industrial use with Buna-N seal, Brass/Plastic material, and 1/4" NPT Male connection. Ensure consistent air and water flow.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifice Tube Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Tube Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

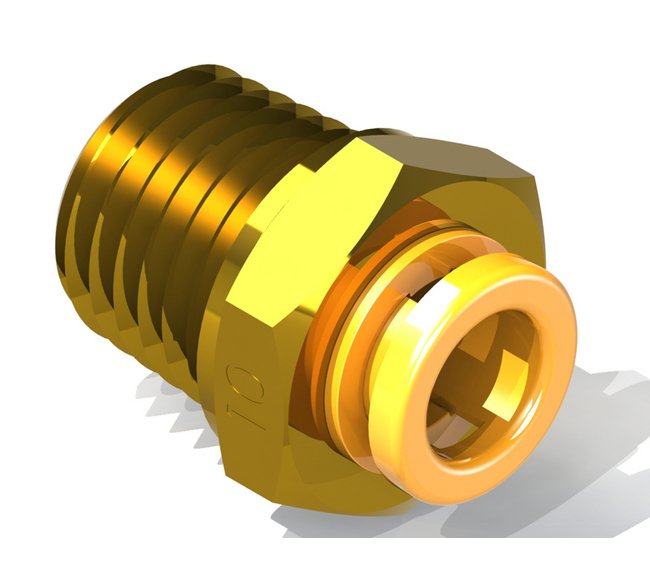

The Precision Metal Orifice Tube Adapters are meticulously crafted for seamless integration in industrial systems. Featuring a Buna-N seal and Brass/Plastic construction, these adapters ensure reliable performance. With a Nominal Orifice Size of 17, CV of 0.0067, and a Maximum Operating Pressure of 140 psig, they deliver consistent air and water flow. Trusted for accuracy, these adapters are designed with 1/4" NPT Male and 1/4" OD Tube Push-Lock connections, meeting stringent quality standards for precise applications.

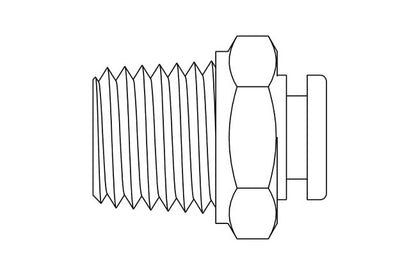

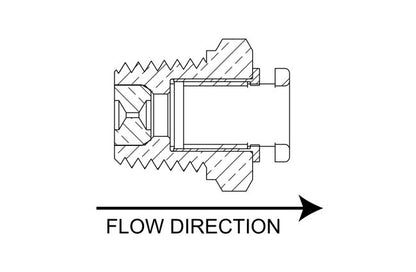

Product Specifications
Dimensions Orifice Diameter
0.017 in
Dimensions Total Length
0.91 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.64 | 5 psig: 3.73 | 10 psig: 4.79 | 15 psig: 6.04 | 20 psig: 7.20 | 25 psig: 8.31 | 30 psig: 9.39 | 40 psig: 11.6 | 50 psig: 13.8 | 60 psig: 16.0 | 70 psig: 18.2 | 80 psig: 20.5 | 90 psig: 22.7 | 100 psig: 25.0
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.77 | 5 psig (34.5 kPag): 1.76 | 10 psig (69.0 kPag): 2.26 | 15 psig (103.4 kPag): 2.85 | 20 psig (137.9 kPag): 3.40 | 25 psig (172.4 kPag): 3.92 | 30 psig (206.9 kPag): 4.43 | 40 psig (275.8 kPag): 5.47 | 50 psig (344.8 kPag): 6.51 | 60 psig (413.7 kPag): 7.56 | 70 psig (482.7 kPag): 8.61 | 80 psig (551.6 kPag): 9.67 | 90 psig (620.6 kPag): 10.7 | 100 psig (689.5 kPag): 11.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 3.28 | 20 In. Hg.: 3.28 | 30 In. Hg.: 3.28
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.55 | 20 In. Hg. (508 Mm. Hg.): 1.55 | 30 In. Hg. (762 Mm. Hg.): 1.55
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.41 | 10 In. Hg.: 2.99
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.14 | 10 In. Hg. (254 Mm. Hg.): 1.41
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0067 | 2 psig: 0.0095 | 3 psig: 0.0116 | 4 psig: 0.0134 | 5 psig: 0.0150 | 6 psig: 0.0164 | 7 psig: 0.0177 | 8 psig: 0.0190 | 9 psig: 0.0201 | 10 psig: 0.0212 | 15 psig: 0.0259 | 20 psig: 0.0300 | 30 psig: 0.0367 | 40 psig: 0.0424 | 50 psig: 0.0474 | 60 psig: 0.0519 | 70 psig: 0.0561 | 80 psig: 0.0599 | 90 psig: 0.0636 | 100 psig: 0.0670
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0254 | 2 psig (13.8 kPag): 0.0359 | 3 psig (20.7 kPag): 0.0439 | 4 psig (27.6 kPag): 0.0507 | 5 psig (34.5 kPag): 0.0567 | 6 psig (41.4 kPag): 0.0567 | 7 psig (48.3 kPag): 0.0671 | 8 psig (55.2 kPag): 0.0717 | 9 psig (62.1 kPag): 0.0761 | 10 psig (69 kPag): 0.0802 | 15 psig (103.4 kPag): 0.0982 | 20 psig (137.9 kPag): 0.1134 | 30 psig (206.9 kPag): 0.1389 | 40 psig (275.8 kPag): 0.1604 | 50 psig (344.8 kPag): 0.1793 | 60 psig (413.7 kPag): 0.1965 | 70 psig (482.7 kPag): 0.2122 | 80 psig (551.6 kPag): 0.2268 | 90 psig (620.6 kPag): 0.2406 | 100 psig (689.5 kPag): 0.2536
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.0067
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
17
Specifications Screened
None
Specifications Seal Material
Buna-N
