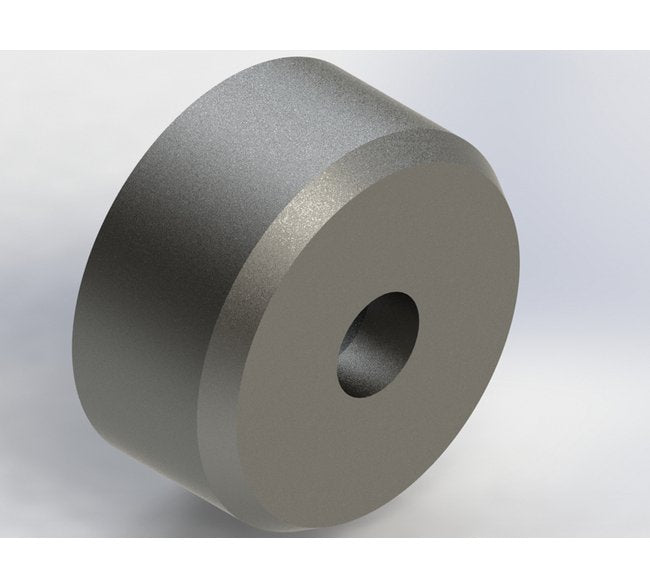

The Precision Metal Orifices - 0.124" OD Press-Fit Inserts are meticulously engineered for precise press-fitting into fittings, manifolds, and custom components with exceptional dimensional accuracy. Crafted from durable 303 SS material, these inserts offer a tight press fit range of 0.1230 to 0.1235 inches, ensuring secure installation. With a maximum operating pressure of 4000 psig and a CV of 0.00035, these orifices excel in controlling flow rates for both liquids and gases. Their compatibility with a wide range of fittings and customizable assemblies makes them ideal for applications requiring reliable flow control.
Product Specifications
Application 0

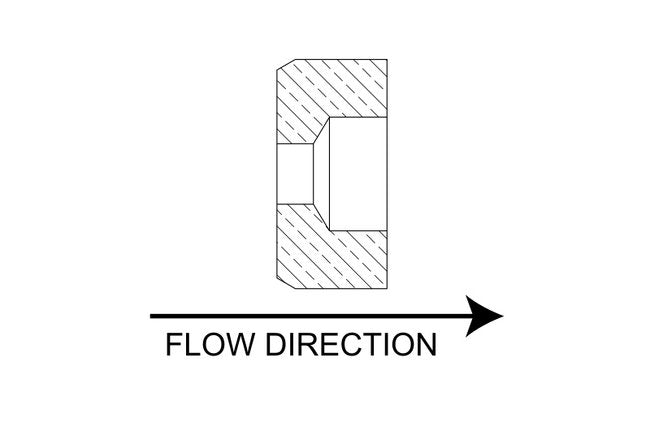

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

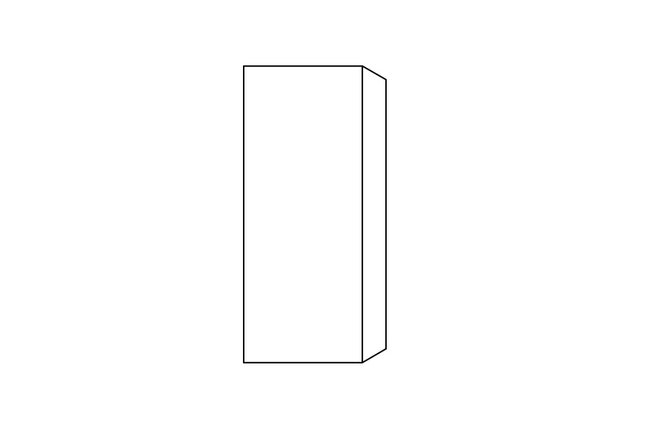

Dimensions Maximum Outside Diameter
0.1250 in
Dimensions Minimum Outside Diameter
0.1240 in
Dimensions Orifice Diameter
0.0039 in | 0.1 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.1230 to 0.1235 in
Dimensions Total Length
0.060 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.075 | 5 psig: 0.18 | 10 psig: 0.25 | 15 psig: 0.30 | 20 psig: 0.40 | 25 psig: 0.47 | 30 psig: 0.53 | 40 psig: 0.64 | 50 psig: 0.76 | 60 psig: 0.89 | 70 psig: 1.02 | 80 psig: 1.14 | 90 psig: 1.27 | 100 psig: 1.40
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.035 | 5 psig (34.5 kPag): 0.09 | 10 psig (69.0 kPag): 0.12 | 15 psig (103.4 kPag): 0.16 | 20 psig (137.9 kPag): 0.19 | 25 psig (172.4 kPag): 0.22 | 30 psig (206.9 kPag): 0.25 | 40 psig (275.8 kPag): 0.30 | 50 psig (344.8 kPag): 0.36 | 60 psig (413.7 kPag): 0.42 | 70 psig (482.7 kPag): 0.48 | 80 psig (551.6 kPag): 0.54 | 90 psig (620.6 kPag): 0.60 | 100 psig (689.5 kPag): 0.66
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.158 | 20 In. Hg.: 0.158 | 30 In. Hg.: 0.158
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.075 | 20 In. Hg. (508 Mm. Hg.): 0.075 | 30 In. Hg. (762 Mm. Hg.): 0.075
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.113 | 10 In. Hg.: 0.145
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.053 | 10 In. Hg. (254 Mm. Hg.): 0.069
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.00035 | 2 psig: 0.00049 | 3 psig: 0.00061 | 4 psig: 0.00070 | 5 psig: 0.00078 | 6 psig: 0.00086 | 7 psig: 0.00093 | 8 psig: 0.00099 | 9 psig: 0.00105 | 10 psig: 0.00111 | 15 psig: 0.00136 | 20 psig: 0.00157 | 30 psig: 0.00192 | 40 psig: 0.00221 | 50 psig: 0.00247 | 60 psig: 0.00271 | 70 psig: 0.00293 | 80 psig: 0.00313 | 90 psig: 0.00332 | 100 psig: 0.00350
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0013 | 2 psig (13.8 kPag): 0.0019 | 3 psig (20.7 kPag): 0.0023 | 4 psig (27.6 kPag): 0.0026 | 5 psig (34.5 kPag): 0.0030 | 6 psig (41.4 kPag): 0.0030 | 7 psig (48.3 kPag): 0.0035 | 8 psig (55.2 kPag): 0.0037 | 9 psig (62.1 kPag): 0.0040 | 10 psig (69 kPag): 0.0042 | 15 psig (103.4 kPag): 0.0051 | 20 psig (137.9 kPag): 0.0059 | 30 psig (206.9 kPag): 0.0073 | 40 psig (275.8 kPag): 0.0084 | 50 psig (344.8 kPag): 0.0094 | 60 psig (413.7 kPag): 0.0103 | 70 psig (482.7 kPag): 0.0111 | 80 psig (551.6 kPag): 0.0119 | 90 psig (620.6 kPag): 0.0126 | 100 psig (689.5 kPag): 0.0132
Specifications Connection A
.124" Press-Fit Insert
Specifications Cv
0.00035
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
4
Specifications Screened
None
