Precision Metal Orifices - 0.124" Press-Fit Inserts
Precision Metal Orifices - 0.124" Press-Fit Inserts
SKU:PRE-45e16d
High-quality Precision Metal Orifices for accurate flow control in fittings, manifolds, and custom parts. Crafted from 303 SS material with 0.124" OD.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - 0.124" Press-Fit Inserts
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 0.124" Press-Fit Inserts
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

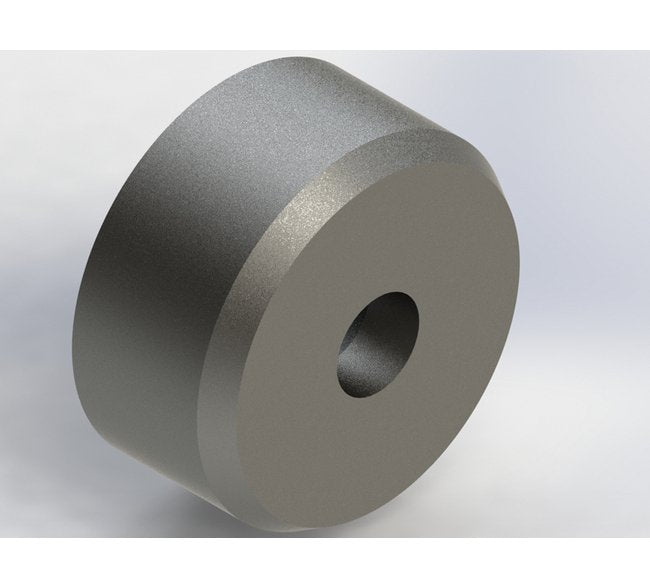

The Precision Metal Orifices are meticulously designed for precise press-fit insertion into various fittings, manifolds, and custom parts, ensuring accurate flow control of liquids or gases. Crafted from high-quality 303 SS material, these inserts feature a 0.124" OD with exceptional dimensional accuracy of ±0.0005". With a maximum operating pressure of 4000 psig, these orifices offer reliable performance for diverse applications, meeting stringent industry standards for durability and functionality.
Product Specifications
Application 0

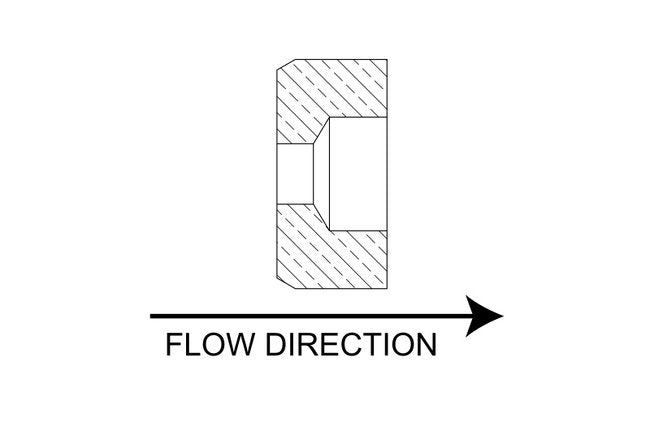

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.1250 in
Dimensions Minimum Outside Diameter
0.1240 in
Dimensions Orifice Diameter
0.019 in | 0.48 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.1230 to 0.1235 in
Dimensions Total Length
0.060 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.03 | 5 psig: 4.70 | 10 psig: 6.00 | 15 psig: 7.56 | 20 psig: 9.03 | 25 psig: 10.4 | 30 psig: 11.8 | 40 psig: 14.5 | 50 psig: 17.3 | 60 psig: 20.0 | 70 psig: 22.9 | 80 psig: 25.6 | 90 psig: 28.4 | 100 psig: 31.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.96 | 5 psig (34.5 kPag): 2.22 | 10 psig (69.0 kPag): 2.83 | 15 psig (103.4 kPag): 3.57 | 20 psig (137.9 kPag): 4.26 | 25 psig (172.4 kPag): 4.91 | 30 psig (206.9 kPag): 5.56 | 40 psig (275.8 kPag): 6.85 | 50 psig (344.8 kPag): 8.15 | 60 psig (413.7 kPag): 9.46 | 70 psig (482.7 kPag): 10.8 | 80 psig (551.6 kPag): 12.1 | 90 psig (620.6 kPag): 13.4 | 100 psig (689.5 kPag): 14.7
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.11 | 20 In. Hg.: 4.11 | 30 In. Hg.: 4.11
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.94 | 20 In. Hg. (508 Mm. Hg.): 1.94 | 30 In. Hg. (762 Mm. Hg.): 1.94
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.99 | 10 In. Hg.: 3.79
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.41 | 10 In. Hg. (254 Mm. Hg.): 1.79
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0080 | 2 psig: 0.0113 | 3 psig: 0.0139 | 4 psig: 0.0160 | 5 psig: 0.0179 | 6 psig: 0.0196 | 7 psig: 0.0212 | 8 psig: 0.0226 | 9 psig: 0.0240 | 10 psig: 0.0253 | 15 psig: 0.0310 | 20 psig: 0.0358 | 30 psig: 0.0438 | 40 psig: 0.0506 | 50 psig: 0.0566 | 60 psig: 0.0620 | 70 psig: 0.0669 | 80 psig: 0.0716 | 90 psig: 0.0759 | 100 psig: 0.0800
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0303 | 2 psig (13.8 kPag): 0.0428 | 3 psig (20.7 kPag): 0.0525 | 4 psig (27.6 kPag): 0.0606 | 5 psig (34.5 kPag): 0.0677 | 6 psig (41.4 kPag): 0.0677 | 7 psig (48.3 kPag): 0.0801 | 8 psig (55.2 kPag): 0.0857 | 9 psig (62.1 kPag): 0.0908 | 10 psig (69 kPag): 0.0958 | 15 psig (103.4 kPag): 0.1173 | 20 psig (137.9 kPag): 0.1354 | 30 psig (206.9 kPag): 0.1659 | 40 psig (275.8 kPag): 0.1915 | 50 psig (344.8 kPag): 0.2141 | 60 psig (413.7 kPag): 0.2346 | 70 psig (482.7 kPag): 0.2534 | 80 psig (551.6 kPag): 0.2709 | 90 psig (620.6 kPag): 0.2873 | 100 psig (689.5 kPag): 0.3028
Specifications Connection A
.124" Press-Fit Insert
Specifications Cv
0.008
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
19
Specifications Screened
None
