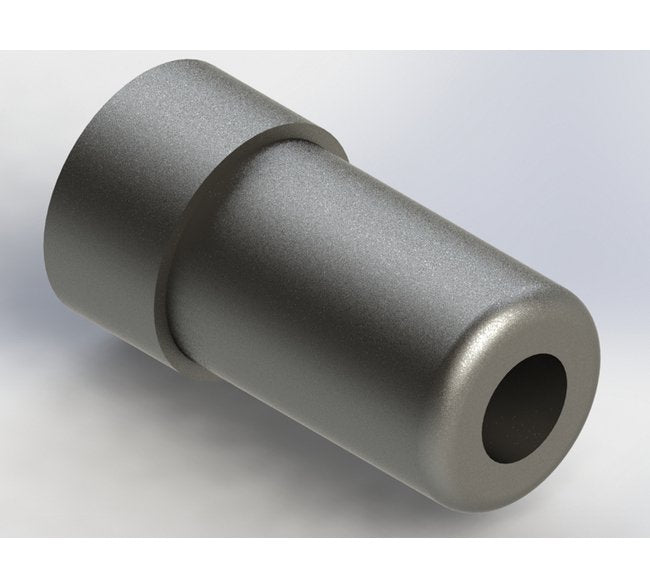

Precision Metal Orifices - 0.128" Press-Fit Inserts
Precision Metal Orifices - 0.128" Press-Fit Inserts
SKU:PRE-0160ae
Achieve precise flow control with our Precision Metal Orifices - 0.128" Press-Fit Inserts designed for exacting applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - 0.128" Press-Fit Inserts
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 0.128" Press-Fit Inserts
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices - 0.128" Press-Fit Inserts are meticulously designed for precise press-fitting into machined openings in fittings, manifolds, and custom parts. Crafted from high-grade 303 SS, these inserts offer exceptional dimensional accuracy and a press fit range of 0.126 to 0.127 inches, ensuring reliable flow rate control of fluids or gases. With a CV of 0.00035 and a maximum operating pressure of 4000 psig, these orifices are ideal for applications requiring stringent flow control. Engineered for efficiency and durability, these inserts guarantee superior performance in diverse fluid handling systems.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.129 in
Dimensions Minimum Outside Diameter
0.128 in
Dimensions Orifice Diameter
0.0039 in | 0.1 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.126 to 0.127 in
Dimensions Shank Length
0.196 in
Dimensions Total Length
0.276 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.075 | 5 psig: 0.18 | 10 psig: 0.25 | 15 psig: 0.30 | 20 psig: 0.40 | 25 psig: 0.47 | 30 psig: 0.53 | 40 psig: 0.64 | 50 psig: 0.76 | 60 psig: 0.89 | 70 psig: 1.02 | 80 psig: 1.14 | 90 psig: 1.27 | 100 psig: 1.40
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.035 | 5 psig (34.5 kPag): 0.09 | 10 psig (69.0 kPag): 0.12 | 15 psig (103.4 kPag): 0.16 | 20 psig (137.9 kPag): 0.19 | 25 psig (172.4 kPag): 0.22 | 30 psig (206.9 kPag): 0.25 | 40 psig (275.8 kPag): 0.30 | 50 psig (344.8 kPag): 0.36 | 60 psig (413.7 kPag): 0.42 | 70 psig (482.7 kPag): 0.48 | 80 psig (551.6 kPag): 0.54 | 90 psig (620.6 kPag): 0.60 | 100 psig (689.5 kPag): 0.66
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.158 | 20 In. Hg.: 0.158 | 30 In. Hg.: 0.158
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.075 | 20 In. Hg. (508 Mm. Hg.): 0.075 | 30 In. Hg. (762 Mm. Hg.): 0.075
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.113 | 10 In. Hg.: 0.145
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.053 | 10 In. Hg. (254 Mm. Hg.): 0.069
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.00035 | 2 psig: 0.00049 | 3 psig: 0.00061 | 4 psig: 0.00070 | 5 psig: 0.00078 | 6 psig: 0.00086 | 7 psig: 0.00093 | 8 psig: 0.00099 | 9 psig: 0.00105 | 10 psig: 0.00111 | 15 psig: 0.00136 | 20 psig: 0.00157 | 30 psig: 0.00192 | 40 psig: 0.00221 | 50 psig: 0.00247 | 60 psig: 0.00271 | 70 psig: 0.00293 | 80 psig: 0.00313 | 90 psig: 0.00332 | 100 psig: 0.00350
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0013 | 2 psig (13.8 kPag): 0.0019 | 3 psig (20.7 kPag): 0.0023 | 4 psig (27.6 kPag): 0.0026 | 5 psig (34.5 kPag): 0.0030 | 6 psig (41.4 kPag): 0.0030 | 7 psig (48.3 kPag): 0.0035 | 8 psig (55.2 kPag): 0.0037 | 9 psig (62.1 kPag): 0.0040 | 10 psig (69 kPag): 0.0042 | 15 psig (103.4 kPag): 0.0051 | 20 psig (137.9 kPag): 0.0059 | 30 psig (206.9 kPag): 0.0073 | 40 psig (275.8 kPag): 0.0084 | 50 psig (344.8 kPag): 0.0094 | 60 psig (413.7 kPag): 0.0103 | 70 psig (482.7 kPag): 0.0111 | 80 psig (551.6 kPag): 0.0119 | 90 psig (620.6 kPag): 0.0126 | 100 psig (689.5 kPag): 0.0132
Specifications Connection A
.128" Press-Fit Insert
Specifications Cv
0.00035
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
4
Specifications Screened
None
