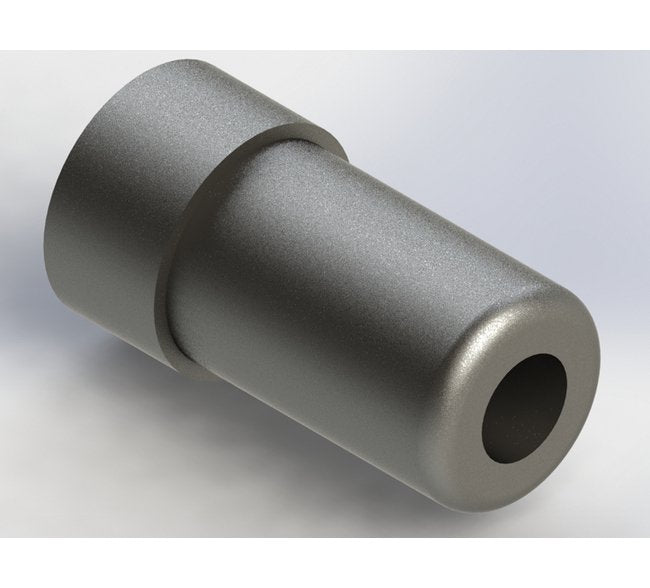

Precision Metal Orifices - 0.128" Press-Fit Inserts
Precision Metal Orifices - 0.128" Press-Fit Inserts
SKU:PRE-01e7b7
Experience precision control with our 0.128" Press-Fit Metal Orifices. Achieve accurate flow rates in fittings and manifolds.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - 0.128" Press-Fit Inserts
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 0.128" Press-Fit Inserts
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid systems with precision using our Precision Metal Orifices. These 0.128" Press-Fit Inserts are expertly designed for accurate press-fitting into fittings, manifolds, and custom parts, allowing for precise control of flow rates. Crafted from high-quality 303 SS material, these inserts ensure durability and reliability. With a CV of 0.0038 and a maximum operating pressure of 4000 psig, they meet stringent industry standards for performance and quality. Ideal for a wide range of applications, from gas to liquid flow management, these orifices deliver consistent and efficient results.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.129 in
Dimensions Minimum Outside Diameter
0.128 in
Dimensions Orifice Diameter
0.013 in | 0.33 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.126 to 0.127 in
Dimensions Shank Length
0.196 in
Dimensions Total Length
0.276 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.962 | 5 psig: 2.25 | 10 psig: 3.14 | 15 psig: 3.92 | 20 psig: 4.64 | 25 psig: 5.30 | 30 psig: 5.98 | 40 psig: 7.31 | 50 psig: 8.62 | 60 psig: 10.0 | 70 psig: 11.3 | 80 psig: 12.6 | 90 psig: 13.9 | 100 psig: 15.3
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.45 | 5 psig (34.5 kPag): 1.06 | 10 psig (69.0 kPag): 1.48 | 15 psig (103.4 kPag): 1.85 | 20 psig (137.9 kPag): 2.19 | 25 psig (172.4 kPag): 2.50 | 30 psig (206.9 kPag): 2.82 | 40 psig (275.8 kPag): 3.45 | 50 psig (344.8 kPag): 4.07 | 60 psig (413.7 kPag): 4.70 | 70 psig (482.7 kPag): 5.32 | 80 psig (551.6 kPag): 5.95 | 90 psig (620.6 kPag): 6.58 | 100 psig (689.5 kPag): 7.22
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.91 | 20 In. Hg.: 1.91 | 30 In. Hg.: 1.91
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.902 | 20 In. Hg. (508 Mm. Hg.): 0.902 | 30 In. Hg. (762 Mm. Hg.): 0.902
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.4 | 10 In. Hg.: 1.77
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.661 | 10 In. Hg. (254 Mm. Hg.): 0.834
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0038 | 2 psig: 0.0054 | 3 psig: 0.0066 | 4 psig: 0.0076 | 5 psig: 0.0085 | 6 psig: 0.0093 | 7 psig: 0.0101 | 8 psig: 0.0107 | 9 psig: 0.0114 | 10 psig: 0.0120 | 15 psig: 0.0147 | 20 psig: 0.0170 | 30 psig: 0.0208 | 40 psig: 0.0240 | 50 psig: 0.0269 | 60 psig: 0.0294 | 70 psig: 0.0318 | 80 psig: 0.0340 | 90 psig: 0.0360 | 100 psig: 0.0380
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0144 | 2 psig (13.8 kPag): 0.0203 | 3 psig (20.7 kPag): 0.0249 | 4 psig (27.6 kPag): 0.0288 | 5 psig (34.5 kPag): 0.0322 | 6 psig (41.4 kPag): 0.0322 | 7 psig (48.3 kPag): 0.0381 | 8 psig (55.2 kPag): 0.0407 | 9 psig (62.1 kPag): 0.0432 | 10 psig (69 kPag): 0.0455 | 15 psig (103.4 kPag): 0.0557 | 20 psig (137.9 kPag): 0.0643 | 30 psig (206.9 kPag): 0.0788 | 40 psig (275.8 kPag): 0.0910 | 50 psig (344.8 kPag): 0.1017 | 60 psig (413.7 kPag): 0.1114 | 70 psig (482.7 kPag): 0.1203 | 80 psig (551.6 kPag): 0.1287 | 90 psig (620.6 kPag): 0.1365 | 100 psig (689.5 kPag): 0.1438
Specifications Connection A
.128" Press-Fit Insert
Specifications Cv
0.0038
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
13
Specifications Screened
None
