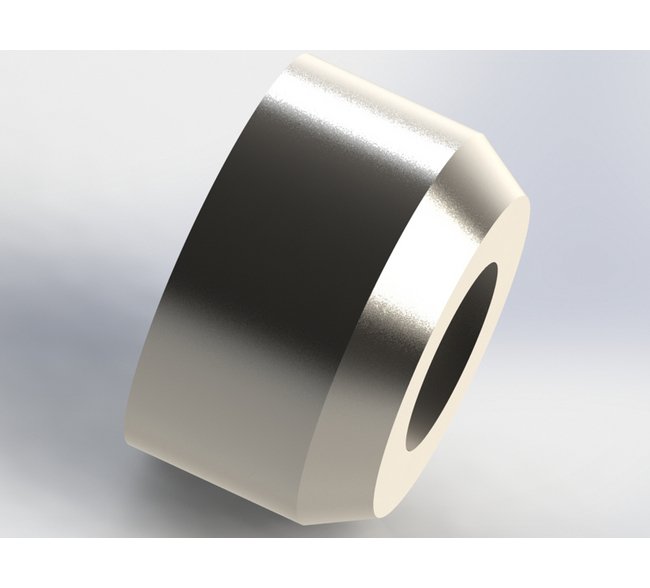

Precision Metal Orifices - 0.258" OD Press-Fit Inserts
Precision Metal Orifices - 0.258" OD Press-Fit Inserts
SKU:PRE-5bfe6e
High-precision 0.258" OD Press-Fit Metal Orifices for precise flow control in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - 0.258" OD Press-Fit Inserts
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 0.258" OD Press-Fit Inserts
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices - 0.258" OD Press-Fit Inserts are meticulously designed for accurate press-fitting into fittings, manifolds, and custom parts. Crafted from high-quality 303 SS, these inserts offer precision control over fluid and gas flow rates. With an orifice diameter accuracy of ±0.0005 inches and a maximum operating pressure of 4000 psig, they ensure reliable performance in diverse applications. Whether it's controlling the flow of liquids or gases, these inserts deliver exceptional accuracy and efficiency, making them ideal for critical industrial and institutional setups.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.259 in
Dimensions Minimum Outside Diameter
0.258 in
Dimensions Orifice Diameter
0.025 in | 0.63 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.256 to 0.257 in
Dimensions Total Length
0.156 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 3.54 | 5 psig: 8.12 | 10 psig: 11.8 | 15 psig: 14.7 | 20 psig: 17.3 | 25 psig: 19.9 | 30 psig: 22.5 | 40 psig: 27.5 | 50 psig: 32.6 | 60 psig: 37.5 | 70 psig: 42.6 | 80 psig: 47.7 | 90 psig: 52.8 | 100 psig: 58.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.67 | 5 psig (34.5 kPag): 3.83 | 10 psig (69.0 kPag): 5.55 | 15 psig (103.4 kPag): 6.95 | 20 psig (137.9 kPag): 8.15 | 25 psig (172.4 kPag): 9.38 | 30 psig (206.9 kPag): 10.6 | 40 psig (275.8 kPag): 13.0 | 50 psig (344.8 kPag): 15.4 | 60 psig (413.7 kPag): 17.7 | 70 psig (482.7 kPag): 20.1 | 80 psig (551.6 kPag): 22.5 | 90 psig (620.6 kPag): 24.9 | 100 psig (689.5 kPag): 27.4
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 7.08 | 20 In. Hg.: 7.08 | 30 In. Hg.: 7.08
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.34 | 20 In. Hg. (508 Mm. Hg.): 3.34 | 30 In. Hg. (762 Mm. Hg.): 3.34
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 5.25 | 10 In. Hg.: 6.63
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.48 | 10 In. Hg. (254 Mm. Hg.): 3.13
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.014 | 2 psig: 0.020 | 3 psig: 0.024 | 4 psig: 0.028 | 5 psig: 0.031 | 6 psig: 0.034 | 7 psig: 0.037 | 8 psig: 0.040 | 9 psig: 0.042 | 10 psig: 0.044 | 15 psig: 0.054 | 20 psig: 0.063 | 30 psig: 0.077 | 40 psig: 0.089 | 50 psig: 0.099 | 60 psig: 0.108 | 70 psig: 0.117 | 80 psig: 0.125 | 90 psig: 0.133 | 100 psig: 0.140
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.053 | 2 psig (13.8 kPag): 0.075 | 3 psig (20.7 kPag): 0.092 | 4 psig (27.6 kPag): 0.106 | 5 psig (34.5 kPag): 0.119 | 6 psig (41.4 kPag): 0.119 | 7 psig (48.3 kPag): 0.140 | 8 psig (55.2 kPag): 0.150 | 9 psig (62.1 kPag): 0.159 | 10 psig (69 kPag): 0.168 | 15 psig (103.4 kPag): 0.205 | 20 psig (137.9 kPag): 0.237 | 30 psig (206.9 kPag): 0.290 | 40 psig (275.8 kPag): 0.335 | 50 psig (344.8 kPag): 0.375 | 60 psig (413.7 kPag): 0.411 | 70 psig (482.7 kPag): 0.443 | 80 psig (551.6 kPag): 0.474 | 90 psig (620.6 kPag): 0.503 | 100 psig (689.5 kPag): 0.530
Specifications Connection A
.258" Press-Fit Insert
Specifications Cv
0.014
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
25
Specifications Screened
None
