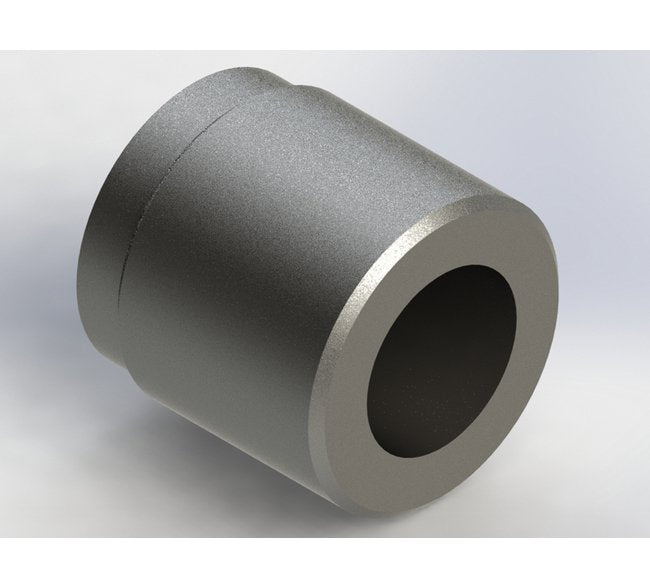

Precision Metal Orifices - 0.315" Press-Fit Inserts, 316 SS
Precision Metal Orifices - 0.315" Press-Fit Inserts, 316 SS
SKU:PRE-34badf
Premium 0.315" Precision Metal Orifices for precise flow control in institutional applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Metal Orifices - 0.315" Press-Fit Inserts, 316 SS
$49.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 0.315" Press-Fit Inserts, 316 SS
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices - Press-Fit Inserts, 0.315" OD offers exceptional accuracy and durability for precise flow control applications. Made from high-grade 316 SS, this orifice ensures optimal performance under pressures up to 4000 psig. With an extensive range of flow data for both air and water, it guarantees reliable operation across various pressure and vacuum conditions. Ideal for institutional and government settings requiring top-tier precision components, this orifice meets stringent industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

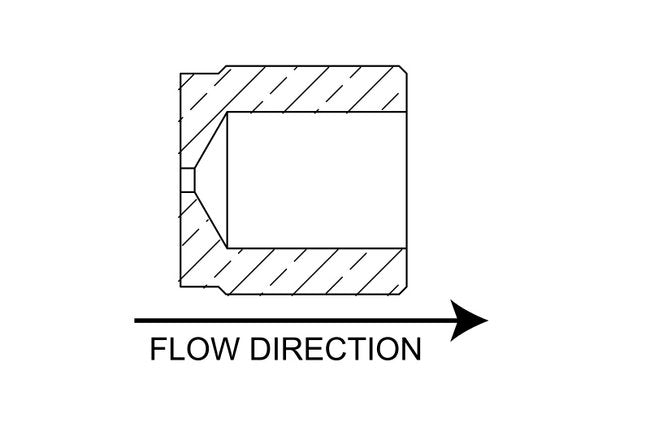

Dimensions Maximum Outside Diameter
0.3160 in
Dimensions Minimum Outside Diameter
0.3155 in
Dimensions Orifice Diameter
0.1130 in
Dimensions Press Fit Into Bore
0.3140 to 0.3150 in
Dimensions Total Length
0.313 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 91.4 | 5 psig: 195 | 10 psig: 250 | 15 psig: 303 | 20 psig: 354 | 25 psig: 405 | 30 psig: 458 | 40 psig: 566 | 50 psig: 672 | 60 psig: 780 | 70 psig: 892 | 80 psig: 1000 | 90 psig: 1106 | 100 psig: 1225
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 43.1 | 5 psig (34.5 kPag): 92.1 | 10 psig (69.0 kPag): 118 | 15 psig (103.4 kPag): 143 | 20 psig (137.9 kPag): 167 | 25 psig (172.4 kPag): 191 | 30 psig (206.9 kPag): 216 | 40 psig (275.8 kPag): 267 | 50 psig (344.8 kPag): 317 | 60 psig (413.7 kPag): 368 | 70 psig (482.7 kPag): 421 | 80 psig (551.6 kPag): 472 | 90 psig (620.6 kPag): 522 | 100 psig (689.5 kPag): 578
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 160 | 20 In. Hg.: 160 | 30 In. Hg.: 160
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 75.3 | 20 In. Hg. (508 Mm. Hg.): 75.3 | 30 In. Hg. (762 Mm. Hg.): 75.3
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 123 | 10 In. Hg.: 153
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 57.9 | 10 In. Hg. (254 Mm. Hg.): 72.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.310 | 2 psig: 0.438 | 3 psig: 0.537 | 4 psig: 0.620 | 5 psig: 0.693 | 6 psig: 0.759 | 7 psig: 0.820 | 8 psig: 0.877 | 9 psig: 0.930 | 10 psig: 0.980 | 15 psig: 1.201 | 20 psig: 1.386 | 30 psig: 1.698 | 40 psig: 1.961 | 50 psig: 2.192 | 60 psig: 2.401 | 70 psig: 2.594 | 80 psig: 2.773 | 90 psig: 2.941 | 100 psig: 3.100
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 1.173 | 2 psig (13.8 kPag): 1.660 | 3 psig (20.7 kPag): 2.033 | 4 psig (27.6 kPag): 2.347 | 5 psig (34.5 kPag): 2.624 | 6 psig (41.4 kPag): 2.874 | 7 psig (48.3 kPag): 3.105 | 8 psig (55.2 kPag): 3.319 | 9 psig (62.1 kPag): 3.52 | 10 psig (69 kPag): 3.711 | 15 psig (103.4 kPag): 4.545 | 20 psig (137.9 kPag): 5.248 | 30 psig (206.9 kPag): 6.427 | 40 psig (275.8 kPag): 7.422 | 50 psig (344.8 kPag): 8.298 | 60 psig (413.7 kPag): 9.09 | 70 psig (482.7 kPag): 9.818 | 80 psig (551.6 kPag): 10.496 | 90 psig (620.6 kPag): 11.133 | 100 psig (689.5 kPag): 11.735
Specifications Connection A
.3155" Press-Fit Insert
Specifications Cv
0.310
Specifications Material
316 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
113
Specifications Screened
None
