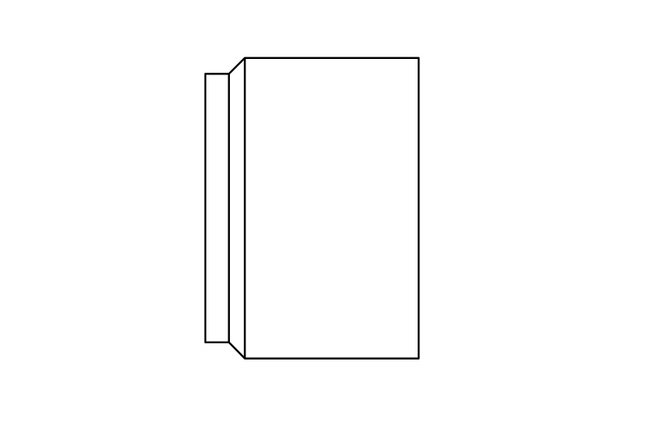

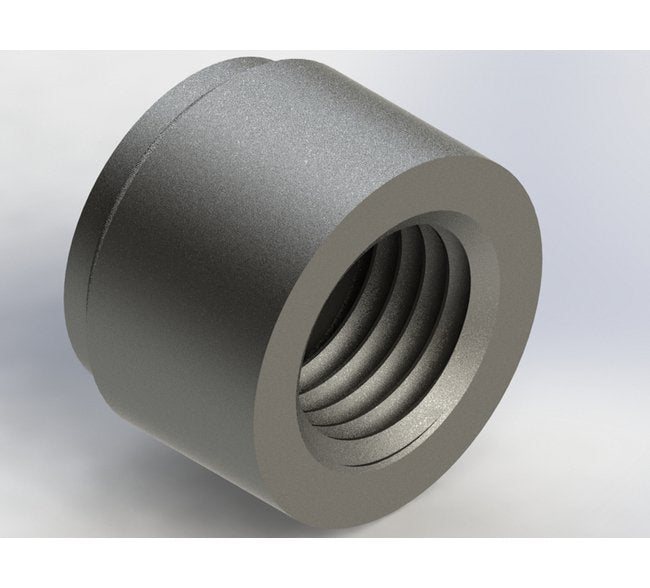

The Precision Metal Orifices - 0.380" Press-Fit Inserts are meticulously crafted for precise press-fitting into various fittings, manifolds, and custom parts, ensuring optimal flow control for liquids and gases. Constructed from high-grade 303 SS material with exceptional accuracy in orifice diameter, these inserts offer a reliable CV of 0.130 and can withstand a maximum operating pressure of 4000 psig. Ideal for institutional applications requiring meticulous flow rate control, these orifices guarantee quality performance and durability.
Product Specifications
Application 0

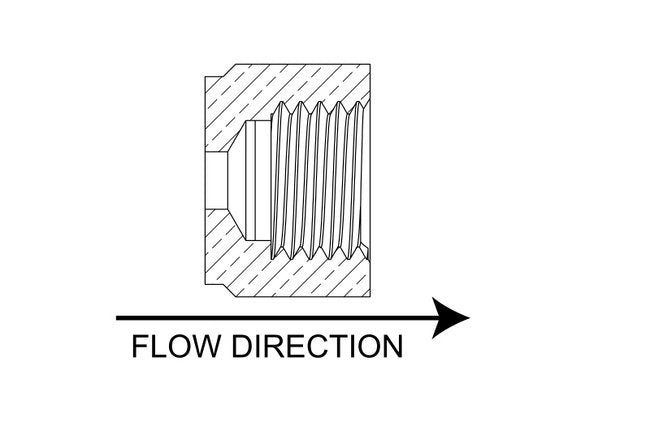

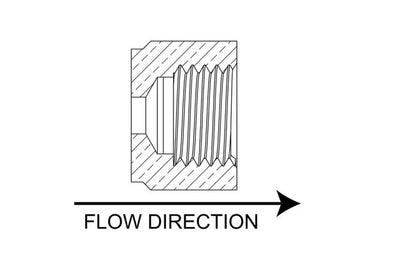

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.3805 in
Dimensions Minimum Outside Diameter
0.3800 in
Dimensions Orifice Diameter
0.0760 in | 1.93 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.3785 to 0.3795 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 39.3 | 5 psig: 83.5 | 10 psig: 112 | 15 psig: 136 | 20 psig: 160 | 25 psig: 183 | 30 psig: 206 | 40 psig: 254 | 50 psig: 301 | 60 psig: 347 | 70 psig: 394 | 80 psig: 443 | 90 psig: 489 | 100 psig: 540
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 18.5 | 5 psig (34.5 kPag): 39.4 | 10 psig (69.0 kPag): 52.9 | 15 psig (103.4 kPag): 64 | 20 psig (137.9 kPag): 75.3 | 25 psig (172.4 kPag): 86.4 | 30 psig (206.9 kPag): 97.4 | 40 psig (275.8 kPag): 120 | 50 psig (344.8 kPag): 142 | 60 psig (413.7 kPag): 164 | 70 psig (482.7 kPag): 186 | 80 psig (551.6 kPag): 209 | 90 psig (620.6 kPag): 231 | 100 psig (689.5 kPag): 255
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 71.8 | 20 In. Hg.: 71.8 | 30 In. Hg.: 71.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 33.9 | 20 In. Hg. (508 Mm. Hg.): 33.9 | 30 In. Hg. (762 Mm. Hg.): 33.9
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 55.1 | 10 In. Hg.: 68.9
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 26 | 10 In. Hg. (254 Mm. Hg.): 32.5
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.130 | 2 psig: 0.184 | 3 psig: 0.225 | 4 psig: 0.260 | 5 psig: 0.291 | 6 psig: 0.318 | 7 psig: 0.344 | 8 psig: 0.368 | 9 psig: 0.390 | 10 psig: 0.411 | 15 psig: 0.503 | 20 psig: 0.581 | 30 psig: 0.712 | 40 psig: 0.822 | 50 psig: 0.919 | 60 psig: 1.007 | 70 psig: 1.088 | 80 psig: 1.163 | 90 psig: 1.233 | 100 psig: 1.300
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.492 | 2 psig (13.8 kPag): 0.696 | 3 psig (20.7 kPag): 0.852 | 4 psig (27.6 kPag): 0.984 | 5 psig (34.5 kPag): 1.100 | 6 psig (41.4 kPag): 1.205 | 7 psig (48.3 kPag): 1.302 | 8 psig (55.2 kPag): 1.392 | 9 psig (62.1 kPag): 1.476 | 10 psig (69 kPag): 1.556 | 15 psig (103.4 kPag): 1.906 | 20 psig (137.9 kPag): 2.201 | 30 psig (206.9 kPag): 2.695 | 40 psig (275.8 kPag): 3.112 | 50 psig (344.8 kPag): 3.480 | 60 psig (413.7 kPag): 3.812 | 70 psig (482.7 kPag): 4.117 | 80 psig (551.6 kPag): 4.401 | 90 psig (620.6 kPag): 4.668 | 100 psig (689.5 kPag): 4.921
Specifications Connection A
.380" Press-Fit Insert
Specifications Cv
0.130
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
76
Specifications Screened
None
