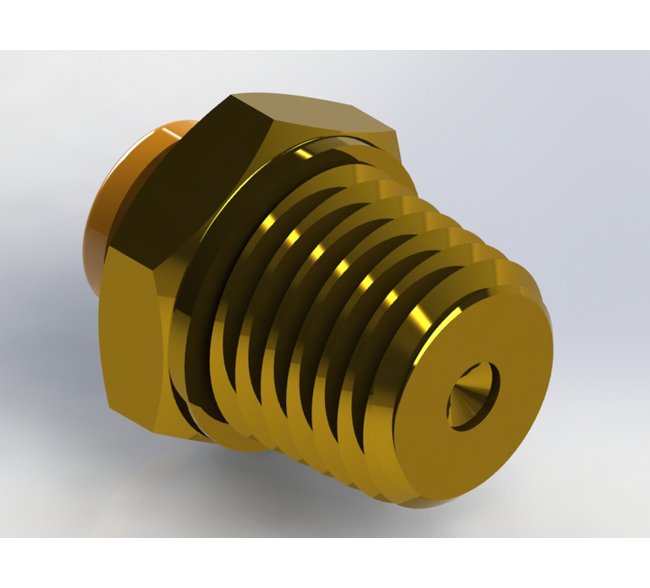

Precision Metal Orifices - 1/4" NPT x Tube Adapters
Precision Metal Orifices - 1/4" NPT x Tube Adapters
SKU:PRE-8bf5d7
High precision metal orifices for optimal airflow control. Durable brass/plastic construction. Meets industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - 1/4" NPT x Tube Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 1/4" NPT x Tube Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices - 1/4" NPT x Tube Adapters are expertly crafted for precision and reliability. With a Nominal Orifice Size of 55 and a Maximum Operating Pressure of 140 psig, these adapters ensure optimal airflow control. The brass/plastic construction and Buna-N seal material guarantee durability and long-lasting performance. Suitable for a wide range of applications, these adapters meet stringent industry standards for quality and efficiency.
Product Specifications
Dimensions Orifice Diameter
0.055 in
Dimensions Total Length
0.830 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 19.90 | 5 psig: 43.0 | 10 psig: 57.4 | 15 psig: 69.7 | 20 psig: 82.0 | 25 psig: 94.5 | 30 psig: 107 | 40 psig: 132 | 50 psig: 157 | 60 psig: 182 | 70 psig: 207 | 80 psig: 231 | 90 psig: 256 | 100 psig: 282
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 9.4 | 5 psig (34.5 kPag): 20.3 | 10 psig (69.0 kPag): 27.1 | 15 psig (103.4 kPag): 32.9 | 20 psig (137.9 kPag): 38.7 | 25 psig (172.4 kPag): 44.6 | 30 psig (206.9 kPag): 50.4 | 40 psig (275.8 kPag): 62.2 | 50 psig (344.8 kPag): 74 | 60 psig (413.7 kPag): 85.8 | 70 psig (482.7 kPag): 97.6 | 80 psig (551.6 kPag): 109 | 90 psig (620.6 kPag): 121 | 100 psig (689.5 kPag): 133
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 33.7 | 20 In. Hg.: 33.7 | 30 In. Hg.: 33.7
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 15.9 | 20 In. Hg. (508 Mm. Hg.): 15.9 | 30 In. Hg. (762 Mm. Hg.): 15.9
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 26.4 | 10 In. Hg.: 32.7
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 12.4 | 10 In. Hg. (254 Mm. Hg.): 15.4
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.068 | 2 psig: 0.096 | 3 psig: 0.118 | 4 psig: 0.136 | 5 psig: 0.152 | 6 psig: 0.167 | 7 psig: 0.180 | 8 psig: 0.192 | 9 psig: 0.204 | 10 psig: 0.215 | 15 psig: 0.263 | 20 psig: 0.304 | 30 psig: 0.372 | 40 psig: 0.430 | 50 psig: 0.481 | 60 psig: 0.527 | 70 psig: 0.569 | 80 psig: 0.608 | 90 psig: 0.645 | 100 psig: 0.680
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.257 | 2 psig (13.8 kPag): 0.364 | 3 psig (20.7 kPag): 0.446 | 4 psig (27.6 kPag): 0.515 | 5 psig (34.5 kPag): 0.576 | 6 psig (41.4 kPag): 0.631 | 7 psig (48.3 kPag): 0.681 | 8 psig (55.2 kPag): 0.728 | 9 psig (62.1 kPag): 0.772 | 10 psig (69 kPag): 0.814 | 15 psig (103.4 kPag): 0.997 | 20 psig (137.9 kPag): 1.151 | 30 psig (206.9 kPag): 1.41 | 40 psig (275.8 kPag): 1.628 | 50 psig (344.8 kPag): 1.820 | 60 psig (413.7 kPag): 1.994 | 70 psig (482.7 kPag): 2.154 | 80 psig (551.6 kPag): 2.302 | 90 psig (620.6 kPag): 2.442 | 100 psig (689.5 kPag): 2.574
Specifications Connection A
1/4" NPT Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.068
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
55
Specifications Screened
None
Specifications Seal Material
Buna-N
