Precision Metal Orifices 1/4" NPT x Tube Adapters
Precision Metal Orifices 1/4" NPT x Tube Adapters
SKU:PRE-154c95
High-performance Precision Metal Orifices for reliable air and water flow control in industrial settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices 1/4" NPT x Tube Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices 1/4" NPT x Tube Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

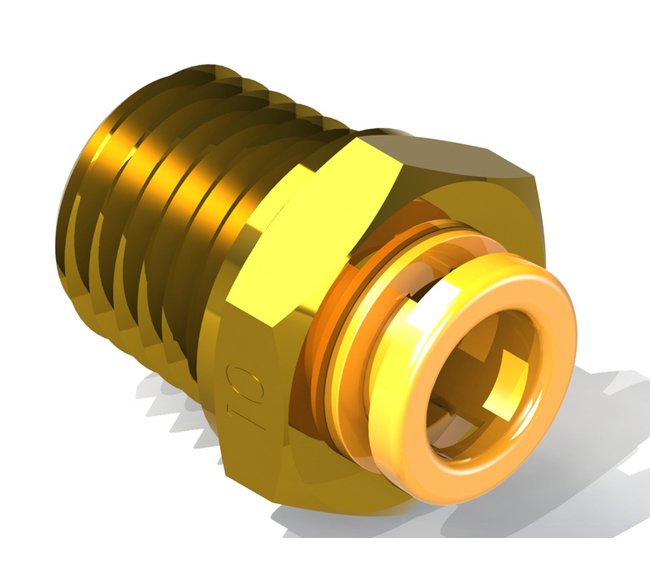

The Precision Metal Orifices 1/4" NPT x Tube Adapters are engineered for precision and durability. With a Buna-N seal and brass/plastic material construction, these adapters ensure reliable performance. Designed to handle a maximum operating pressure of 140 psig, they offer secure connections with 1/4" NPT Male and 1/4" OD Tube Push-Lock fittings. These adapters provide accurate control with a Nominal Orifice Size of 10 and a CV of 0.0025. Ideal for air and water flow applications, they meet stringent industrial standards for efficiency and quality.
Product Specifications

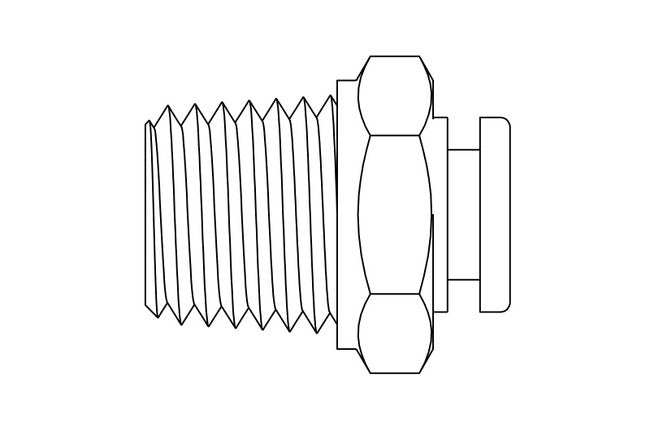

Dimensions Orifice Diameter
0.0102 in
Dimensions Total Length
0.91 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.593 | 5 psig: 1.37 | 10 psig: 1.97 | 15 psig: 2.48 | 20 psig: 2.92 | 25 psig: 3.37 | 30 psig: 3.81 | 40 psig: 4.68 | 50 psig: 5.55 | 60 psig: 6.40 | 70 psig: 7.27 | 80 psig: 8.12 | 90 psig: 8.96 | 100 psig: 9.81
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.280 | 5 psig (34.5 kPag): 0.65 | 10 psig (69.0 kPag): 0.93 | 15 psig (103.4 kPag): 1.17 | 20 psig (137.9 kPag): 1.38 | 25 psig (172.4 kPag): 1.59 | 30 psig (206.9 kPag): 1.80 | 40 psig (275.8 kPag): 2.21 | 50 psig (344.8 kPag): 2.62 | 60 psig (413.7 kPag): 3.02 | 70 psig (482.7 kPag): 3.43 | 80 psig (551.6 kPag): 3.83 | 90 psig (620.6 kPag): 4.23 | 100 psig (689.5 kPag): 4.63
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.20 | 20 In. Hg.: 1.20 | 30 In. Hg.: 1.20
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.566 | 20 In. Hg. (508 Mm. Hg.): 0.566 | 30 In. Hg. (762 Mm. Hg.): 0.566
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.86 | 10 In. Hg.: 1.10
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.406 | 10 In. Hg. (254 Mm. Hg.): 0.519
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0025 | 2 psig: 0.0035 | 3 psig: 0.0043 | 4 psig: 0.005 | 5 psig: 0.0056 | 6 psig: 0.0061 | 7 psig: 0.0066 | 8 psig: 0.0071 | 9 psig: 0.0075 | 10 psig: 0.0079 | 15 psig: 0.0097 | 20 psig: 0.0112 | 30 psig: 0.0137 | 40 psig: 0.0158 | 50 psig: 0.0177 | 60 psig: 0.0194 | 70 psig: 0.0209 | 80 psig: 0.0224 | 90 psig: 0.0237 | 100 psig: 0.0250
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0095 | 2 psig (13.8 kPag): 0.0134 | 3 psig (20.7 kPag): 0.0164 | 4 psig (27.6 kPag): 0.0189 | 5 psig (34.5 kPag): 0.0212 | 6 psig (41.4 kPag): 0.0212 | 7 psig (48.3 kPag): 0.0250 | 8 psig (55.2 kPag): 0.0268 | 9 psig (62.1 kPag): 0.0284 | 10 psig (69 kPag): 0.0299 | 15 psig (103.4 kPag): 0.0367 | 20 psig (137.9 kPag): 0.0423 | 30 psig (206.9 kPag): 0.0518 | 40 psig (275.8 kPag): 0.0599 | 50 psig (344.8 kPag): 0.0669 | 60 psig (413.7 kPag): 0.0733 | 70 psig (482.7 kPag): 0.0792 | 80 psig (551.6 kPag): 0.0846 | 90 psig (620.6 kPag): 0.0898 | 100 psig (689.5 kPag): 0.0946
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.0025
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
10
Specifications Screened
None
Specifications Seal Material
Buna-N
