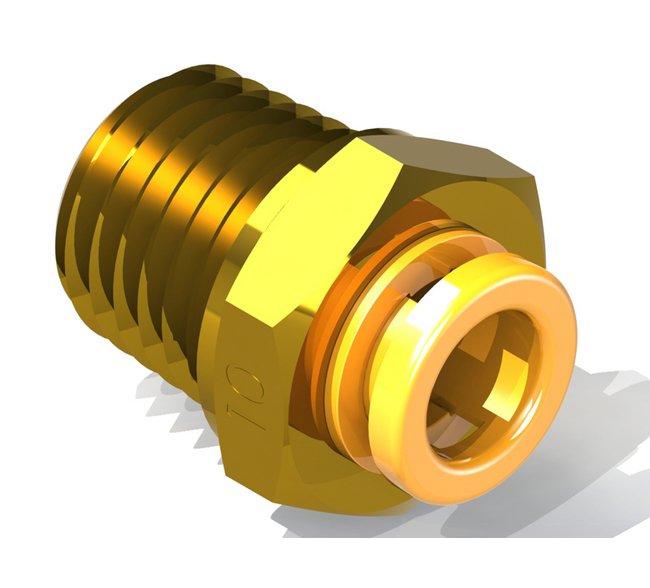

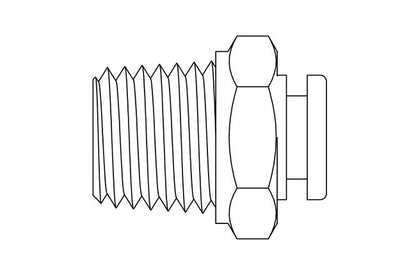

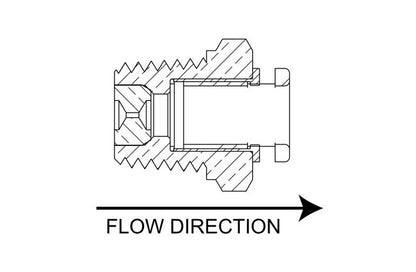

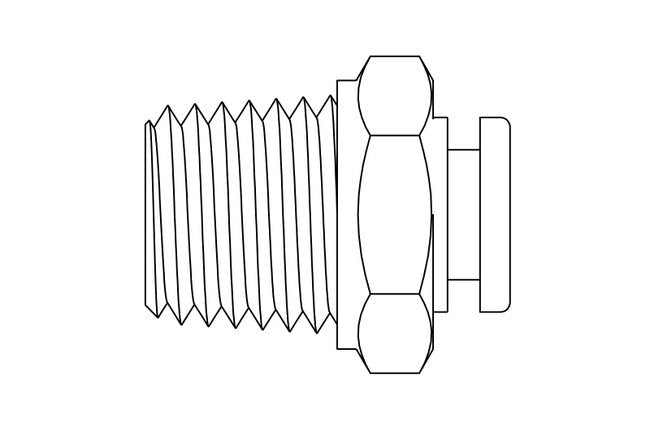

Enhance your fluid control systems with Precision Metal Orifices - 1/4" NPT x Tube Adapters. Crafted from high-quality brass and plastic, these orifices feature a Buna-N seal for reliable performance. With a maximum operating pressure of 140 psig and a precision nominal orifice size of 27, these adapters deliver consistent airflow across various pressures and vacuums. The push-on tube design ensures easy installation and a secure connection, making them ideal for industrial applications.
Product Specifications
Dimensions Orifice Diameter
0.027 in
Dimensions Total Length
0.91 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 4.13 | 5 psig: 9.41 | 10 psig: 13.6 | 15 psig: 16.8 | 20 psig: 19.7 | 25 psig: 22.7 | 30 psig: 25.4 | 40 psig: 31.1 | 50 psig: 36.7 | 60 psig: 42.4 | 70 psig: 48.1 | 80 psig: 53.6 | 90 psig: 59.3 | 100 psig: 65.3
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.95 | 5 psig (34.5 kPag): 4.44 | 10 psig (69.0 kPag): 6.43 | 15 psig (103.4 kPag): 7.95 | 20 psig (137.9 kPag): 9.28 | 25 psig (172.4 kPag): 10.7 | 30 psig (206.9 kPag): 12.0 | 40 psig (275.8 kPag): 14.7 | 50 psig (344.8 kPag): 17.3 | 60 psig (413.7 kPag): 20.0 | 70 psig (482.7 kPag): 22.7 | 80 psig (551.6 kPag): 25.3 | 90 psig (620.6 kPag): 28.0 | 100 psig (689.5 kPag): 30.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 8.01 | 20 In. Hg.: 8.01 | 30 In. Hg.: 8.01
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.78 | 20 In. Hg. (508 Mm. Hg.): 3.78 | 30 In. Hg. (762 Mm. Hg.): 3.78
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 6 | 10 In. Hg.: 7.59
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.83 | 10 In. Hg. (254 Mm. Hg.): 3.58
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.017 | 2 psig: 0.024 | 3 psig: 0.029 | 4 psig: 0.034 | 5 psig: 0.038 | 6 psig: 0.042 | 7 psig: 0.045 | 8 psig: 0.048 | 9 psig: 0.051 | 10 psig: 0.054 | 15 psig: 0.066 | 20 psig: 0.076 | 30 psig: 0.093 | 40 psig: 0.108 | 50 psig: 0.120 | 60 psig: 0.132 | 70 psig: 0.142 | 80 psig: 0.152 | 90 psig: 0.161 | 100 psig: 0.170
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.064 | 2 psig (13.8 kPag): 0.091 | 3 psig (20.7 kPag): 0.111 | 4 psig (27.6 kPag): 0.129 | 5 psig (34.5 kPag): 0.144 | 6 psig (41.4 kPag): 0.144 | 7 psig (48.3 kPag): 0.170 | 8 psig (55.2 kPag): 0.182 | 9 psig (62.1 kPag): 0.193 | 10 psig (69 kPag): 0.203 | 15 psig (103.4 kPag): 0.249 | 20 psig (137.9 kPag): 0.288 | 30 psig (206.9 kPag): 0.352 | 40 psig (275.8 kPag): 0.407 | 50 psig (344.8 kPag): 0.455 | 60 psig (413.7 kPag): 0.498 | 70 psig (482.7 kPag): 0.538 | 80 psig (551.6 kPag): 0.576 | 90 psig (620.6 kPag): 0.610 | 100 psig (689.5 kPag): 0.644
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.017
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
27
Specifications Screened
None
Specifications Seal Material
Buna-N
