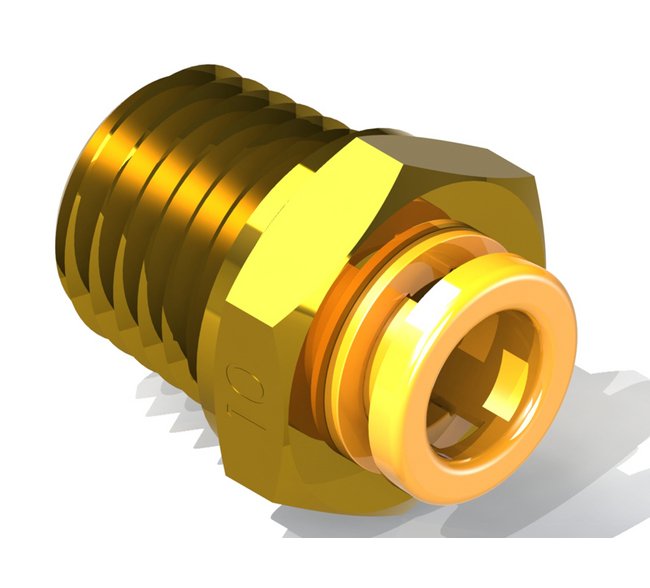

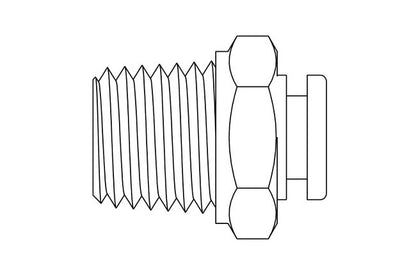

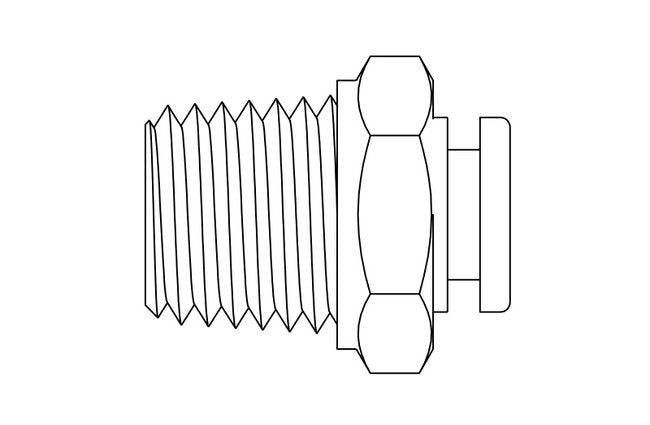

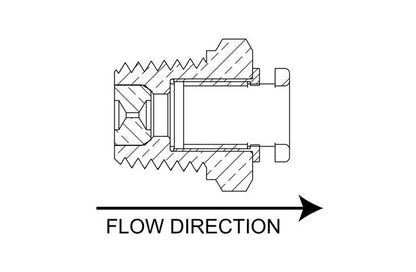

Upgrade your fluid control solutions with our Precision Metal Orifices. These Push-On Tube Adapters feature a 1/4" NPT male connection and a 1/4" OD Tube Push-Lock connection for secure, leak-free installations. Crafted from Brass and Plastic with a Buna-N seal, these orifices ensure durability and reliable performance. With a CV of 0.0043 and a maximum operating pressure of 140 psig, they excel in precision flow control applications. Experience consistent air and water flow rates thanks to the meticulously engineered design.
Product Specifications
Dimensions Orifice Diameter
0.0142 in
Dimensions Total Length
0.91 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.11 | 5 psig: 2.56 | 10 psig: 3.56 | 15 psig: 4.45 | 20 psig: 5.28 | 25 psig: 6.06 | 30 psig: 6.80 | 40 psig: 8.33 | 50 psig: 9.83 | 60 psig: 11.3 | 70 psig: 12.8 | 80 psig: 14.3 | 90 psig: 15.9 | 100 psig: 17.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.52 | 5 psig (34.5 kPag): 1.21 | 10 psig (69.0 kPag): 1.68 | 15 psig (103.4 kPag): 2.10 | 20 psig (137.9 kPag): 2.49 | 25 psig (172.4 kPag): 2.86 | 30 psig (206.9 kPag): 3.21 | 40 psig (275.8 kPag): 3.93 | 50 psig (344.8 kPag): 4.64 | 60 psig (413.7 kPag): 5.34 | 70 psig (482.7 kPag): 6.05 | 80 psig (551.6 kPag): 6.77 | 90 psig (620.6 kPag): 7.49 | 100 psig (689.5 kPag): 8.21
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.26 | 20 In. Hg.: 2.26 | 30 In. Hg.: 2.26
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.07 | 20 In. Hg. (508 Mm. Hg.): 1.07 | 30 In. Hg. (762 Mm. Hg.): 1.07
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.64 | 10 In. Hg.: 2.06
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.773 | 10 In. Hg. (254 Mm. Hg.): 0.972
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0043 | 2 psig: 0.0061 | 3 psig: 0.0074 | 4 psig: 0.0086 | 5 psig: 0.0096 | 6 psig: 0.0105 | 7 psig: 0.0114 | 8 psig: 0.0122 | 9 psig: 0.0129 | 10 psig: 0.0136 | 15 psig: 0.0167 | 20 psig: 0.0192 | 30 psig: 0.0236 | 40 psig: 0.0272 | 50 psig: 0.0304 | 60 psig: 0.0333 | 70 psig: 0.0360 | 80 psig: 0.0385 | 90 psig: 0.0408 | 100 psig: 0.0430
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0163 | 2 psig (13.8 kPag): 0.0230 | 3 psig (20.7 kPag): 0.0282 | 4 psig (27.6 kPag): 0.0326 | 5 psig (34.5 kPag): 0.0364 | 6 psig (41.4 kPag): 0.0364 | 7 psig (48.3 kPag): 0.0431 | 8 psig (55.2 kPag): 0.0460 | 9 psig (62.1 kPag): 0.0488 | 10 psig (69 kPag): 0.0515 | 15 psig (103.4 kPag): 0.0630 | 20 psig (137.9 kPag): 0.0728 | 30 psig (206.9 kPag): 0.0892 | 40 psig (275.8 kPag): 0.1029 | 50 psig (344.8 kPag): 0.1151 | 60 psig (413.7 kPag): 0.1261 | 70 psig (482.7 kPag): 0.1362 | 80 psig (551.6 kPag): 0.1456 | 90 psig (620.6 kPag): 0.1544 | 100 psig (689.5 kPag): 0.1628
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.0043
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
14
Specifications Screened
None
Specifications Seal Material
Buna-N
