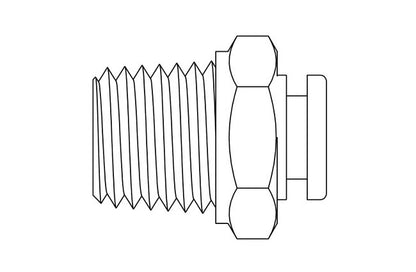

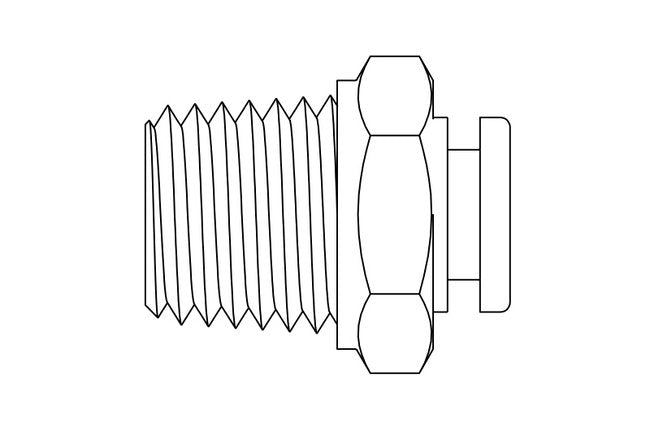

Precision Metal Orifices - 1/4" NPT x Tube Adapters
Precision Metal Orifices - 1/4" NPT x Tube Adapters
SKU:PRE-572ee0
Enhance your fluid control system with precision and durability with our Precision Metal Orifices.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices - 1/4" NPT x Tube Adapters
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 1/4" NPT x Tube Adapters
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

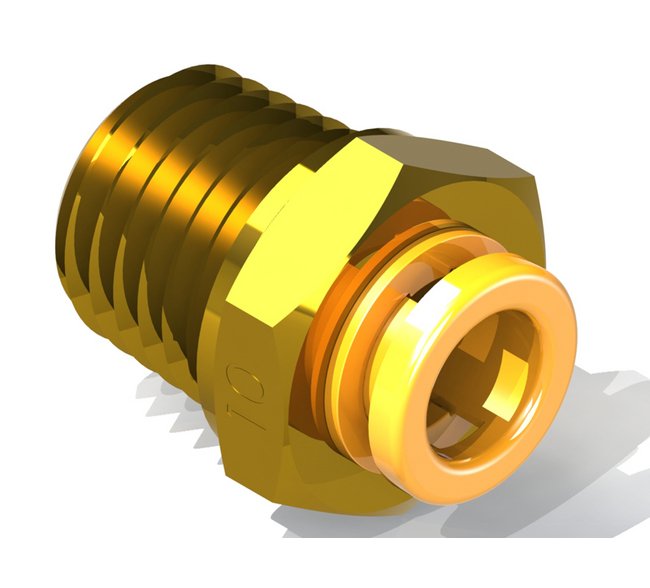

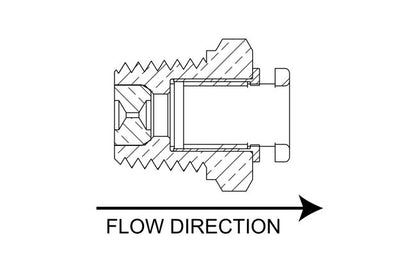

Upgrade your fluid control system with our Precision Metal Orifices - 1/4" NPT x Tube Adapters. Crafted from Brass/Plastic with a Buna-N seal, these adapters offer optimal performance with a CV of 0.013. Operating at a maximum pressure of 140 psig, they ensure precise airflow with an orifice diameter of 0.024 in. Count on efficient air and water flow across various pressure and vacuum conditions.
Product Specifications
Dimensions Orifice Diameter
0.024 in
Dimensions Total Length
0.91 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 3.26 | 5 psig: 7.48 | 10 psig: 11.0 | 15 psig: 13.6 | 20 psig: 16.1 | 25 psig: 18.3 | 30 psig: 20.7 | 40 psig: 25.4 | 50 psig: 30.1 | 60 psig: 34.7 | 70 psig: 39.2 | 80 psig: 43.9 | 90 psig: 48.5 | 100 psig: 53.2
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.54 | 5 psig (34.5 kPag): 3.53 | 10 psig (69.0 kPag): 5.18 | 15 psig (103.4 kPag): 6.43 | 20 psig (137.9 kPag): 7.58 | 25 psig (172.4 kPag): 8.65 | 30 psig (206.9 kPag): 9.75 | 40 psig (275.8 kPag): 12.0 | 50 psig (344.8 kPag): 14.2 | 60 psig (413.7 kPag): 16.4 | 70 psig (482.7 kPag): 18.5 | 80 psig (551.6 kPag): 20.7 | 90 psig (620.6 kPag): 22.9 | 100 psig (689.5 kPag): 25.1
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 6.61 | 20 In. Hg.: 6.61 | 30 In. Hg.: 6.61
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.12 | 20 In. Hg. (508 Mm. Hg.): 3.12 | 30 In. Hg. (762 Mm. Hg.): 3.12
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.87 | 10 In. Hg.: 6.12
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.30 | 10 In. Hg. (254 Mm. Hg.): 2.89
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.013 | 2 psig: 0.018 | 3 psig: 0.023 | 4 psig: 0.026 | 5 psig: 0.029 | 6 psig: 0.032 | 7 psig: 0.034 | 8 psig: 0.037 | 9 psig: 0.039 | 10 psig: 0.041 | 15 psig: 0.050 | 20 psig: 0.058 | 30 psig: 0.071 | 40 psig: 0.082 | 50 psig: 0.092 | 60 psig: 0.101 | 70 psig: 0.109 | 80 psig: 0.116 | 90 psig: 0.123 | 100 psig: 0.130
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.049 | 2 psig (13.8 kPag): 0.070 | 3 psig (20.7 kPag): 0.085 | 4 psig (27.6 kPag): 0.098 | 5 psig (34.5 kPag): 0.110 | 6 psig (41.4 kPag): 0.110 | 7 psig (48.3 kPag): 0.130 | 8 psig (55.2 kPag): 0.139 | 9 psig (62.1 kPag): 0.148 | 10 psig (69 kPag): 0.156 | 15 psig (103.4 kPag): 0.191 | 20 psig (137.9 kPag): 0.220 | 30 psig (206.9 kPag): 0.270 | 40 psig (275.8 kPag): 0.311 | 50 psig (344.8 kPag): 0.348 | 60 psig (413.7 kPag): 0.381 | 70 psig (482.7 kPag): 0.412 | 80 psig (551.6 kPag): 0.440 | 90 psig (620.6 kPag): 0.467 | 100 psig (689.5 kPag): 0.492
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.013
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
24
Specifications Screened
None
Specifications Seal Material
Buna-N
