Precision Metal Orifices - 1/8" NPT Push-On Tube Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 1/8" NPT Push-On Tube Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

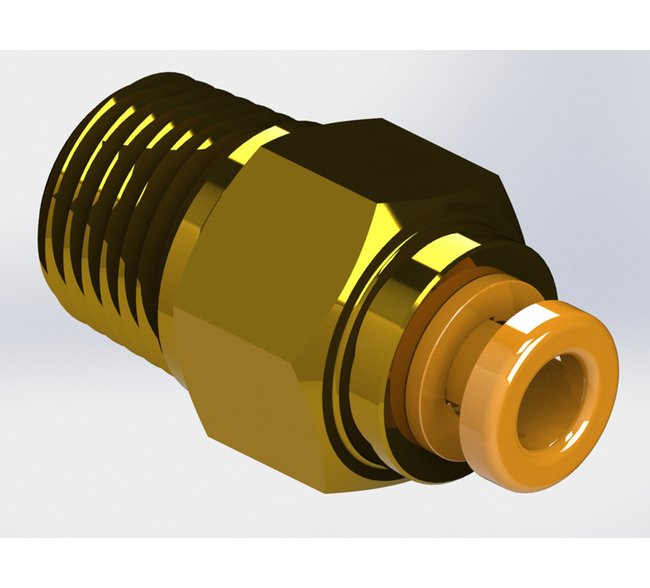

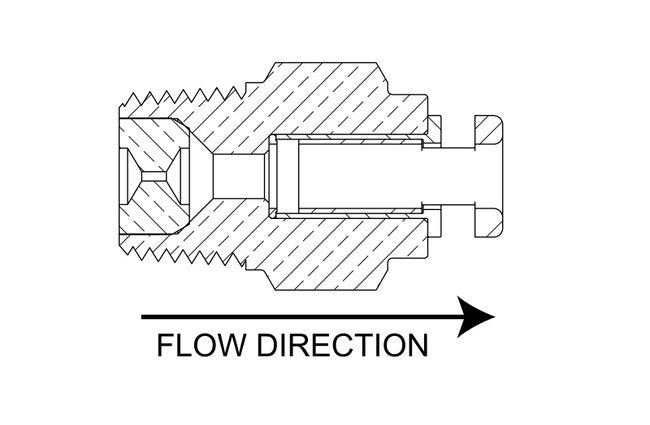

Enhance your fluid control systems with our Precision Metal Orifices featuring brass/plastic build, Buna-N seal, and 0.016" orifice diameter. With a CV of 0.0055, it offers precise flow rates up to 100 psig. Ideal for industrial applications, this adapter meets Federal/DoD procurement standards and complies with NIST standards.
Product Specifications

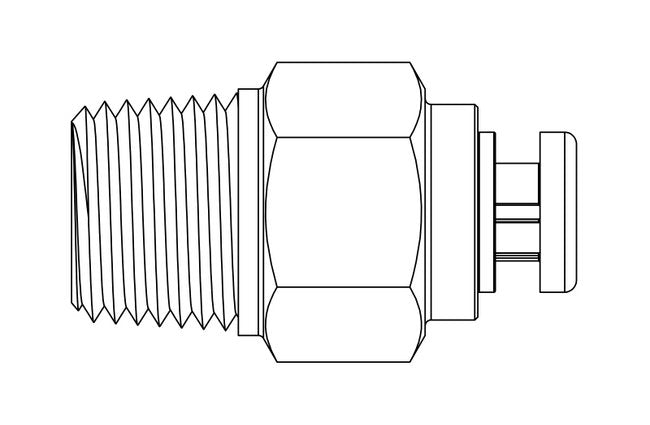

Dimensions Orifice Diameter
0.016 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.40 | 5 psig: 3.26 | 10 psig: 4.26 | 15 psig: 5.30 | 20 psig: 6.29 | 25 psig: 7.25 | 30 psig: 8.20 | 40 psig: 10.1 | 50 psig: 12.1 | 60 psig: 14.0 | 70 psig: 16 | 80 psig: 17.9 | 90 psig: 19.9 | 100 psig: 21.8
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.66 | 5 psig (34.5 kPag): 1.54 | 10 psig (69.0 kPag): 2.01 | 15 psig (103.4 kPag): 2.50 | 20 psig (137.9 kPag): 2.97 | 25 psig (172.4 kPag): 3.42 | 30 psig (206.9 kPag): 3.87 | 40 psig (275.8 kPag): 4.78 | 50 psig (344.8 kPag): 5.70 | 60 psig (413.7 kPag): 6.61 | 70 psig (482.7 kPag): 7.53 | 80 psig (551.6 kPag): 8.46 | 90 psig (620.6 kPag): 9.38 | 100 psig (689.5 kPag): 10.3
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.86 | 20 In. Hg.: 2.86 | 30 In. Hg.: 2.86
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.35 | 20 In. Hg. (508 Mm. Hg.): 1.35 | 30 In. Hg. (762 Mm. Hg.): 1.35
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.07 | 10 In. Hg.: 2.62
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.977 | 10 In. Hg. (254 Mm. Hg.): 1.24
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0055 | 2 psig: 0.0078 | 3 psig: 0.0095 | 4 psig: 0.0110 | 5 psig: 0.0123 | 6 psig: 0.0135 | 7 psig: 0.0146 | 8 psig: 0.0156 | 9 psig: 0.0165 | 10 psig: 0.0174 | 15 psig: 0.0213 | 20 psig: 0.0246 | 30 psig: 0.0301 | 40 psig: 0.0348 | 50 psig: 0.0389 | 60 psig: 0.0426 | 70 psig: 0.0460 | 80 psig: 0.0492 | 90 psig: 0.0522 | 100 psig: 0.0550
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0208 | 2 psig (13.8 kPag): 0.0294 | 3 psig (20.7 kPag): 0.0361 | 4 psig (27.6 kPag): 0.0416 | 5 psig (34.5 kPag): 0.0466 | 6 psig (41.4 kPag): 0.0466 | 7 psig (48.3 kPag): 0.0551 | 8 psig (55.2 kPag): 0.0589 | 9 psig (62.1 kPag): 0.0625 | 10 psig (69 kPag): 0.0658 | 15 psig (103.4 kPag): 0.0806 | 20 psig (137.9 kPag): 0.0931 | 30 psig (206.9 kPag): 0.1140 | 40 psig (275.8 kPag): 0.1317 | 50 psig (344.8 kPag): 0.1472 | 60 psig (413.7 kPag): 0.1613 | 70 psig (482.7 kPag): 0.1742 | 80 psig (551.6 kPag): 0.1862 | 90 psig (620.6 kPag): 0.1975 | 100 psig (689.5 kPag): 0.2082
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" OD Tube Push-Lock
Specifications Cv
0.0055
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
16
Specifications Screened
None
Specifications Seal Material
Buna-N
