Precision Metal Orifices - 1/8" NPT Tube Adapters
Precision Metal Orifices - 1/8" NPT Tube Adapters
SKU:PRE-8a5d3a
Enhance fluid control with Precision Metal Orifices for precise flow in air & water applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices - 1/8" NPT Tube Adapters
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 1/8" NPT Tube Adapters
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

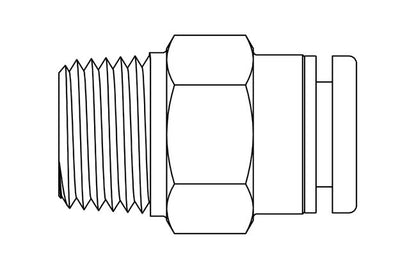

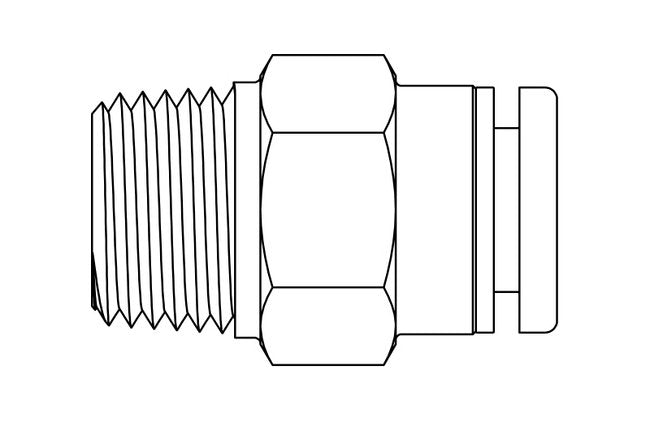

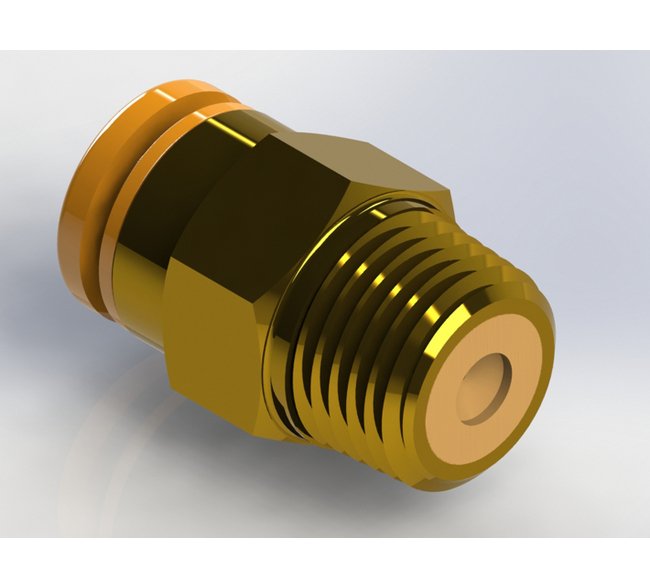

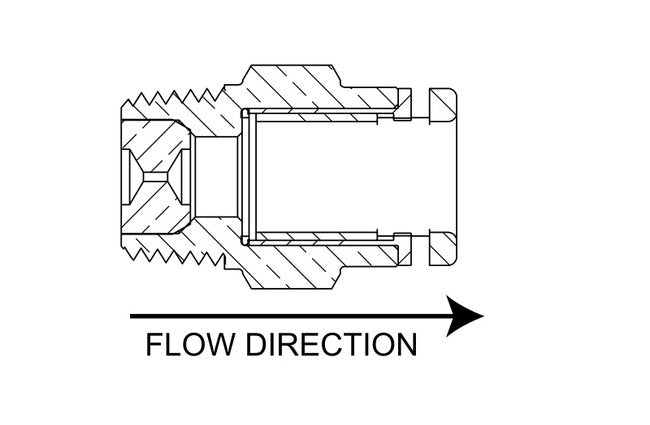

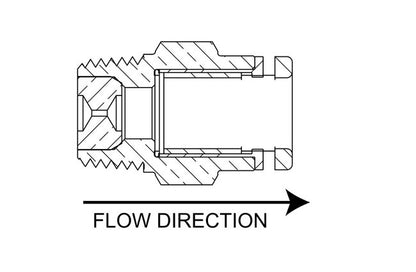

Enhance fluid control with Precision Metal Orifices - Push-On Tube Adapters. Made of durable Brass/Plastic materials with Buna-N seals, these adapters ensure reliable performance under pressure up to 140 psig. With precise dimensions and a CV of 0.008, they offer accurate flow control. Ideal for air and water applications, meeting stringent industrial standards.
Product Specifications
Dimensions Orifice Diameter
0.019 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.03 | 5 psig: 4.70 | 10 psig: 6.00 | 15 psig: 7.56 | 20 psig: 9.03 | 25 psig: 10.4 | 30 psig: 11.8 | 40 psig: 14.5 | 50 psig: 17.3 | 60 psig: 20.0 | 70 psig: 22.9 | 80 psig: 25.6 | 90 psig: 28.4 | 100 psig: 31.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.96 | 5 psig (34.5 kPag): 2.22 | 10 psig (69.0 kPag): 2.83 | 15 psig (103.4 kPag): 3.57 | 20 psig (137.9 kPag): 4.26 | 25 psig (172.4 kPag): 4.91 | 30 psig (206.9 kPag): 5.56 | 40 psig (275.8 kPag): 6.85 | 50 psig (344.8 kPag): 8.15 | 60 psig (413.7 kPag): 9.46 | 70 psig (482.7 kPag): 10.8 | 80 psig (551.6 kPag): 12.1 | 90 psig (620.6 kPag): 13.4 | 100 psig (689.5 kPag): 14.7
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.11 | 20 In. Hg.: 4.11 | 30 In. Hg.: 4.11
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.94 | 20 In. Hg. (508 Mm. Hg.): 1.94 | 30 In. Hg. (762 Mm. Hg.): 1.94
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.99 | 10 In. Hg.: 3.79
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.41 | 10 In. Hg. (254 Mm. Hg.): 1.79
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0080 | 2 psig: 0.0113 | 3 psig: 0.0139 | 4 psig: 0.0160 | 5 psig: 0.0179 | 6 psig: 0.0196 | 7 psig: 0.0212 | 8 psig: 0.0226 | 9 psig: 0.0240 | 10 psig: 0.0253 | 15 psig: 0.0310 | 20 psig: 0.0358 | 30 psig: 0.0438 | 40 psig: 0.0506 | 50 psig: 0.0566 | 60 psig: 0.0620 | 70 psig: 0.0669 | 80 psig: 0.0716 | 90 psig: 0.0759 | 100 psig: 0.0800
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0303 | 2 psig (13.8 kPag): 0.0428 | 3 psig (20.7 kPag): 0.0525 | 4 psig (27.6 kPag): 0.0606 | 5 psig (34.5 kPag): 0.0677 | 6 psig (41.4 kPag): 0.0677 | 7 psig (48.3 kPag): 0.0801 | 8 psig (55.2 kPag): 0.0857 | 9 psig (62.1 kPag): 0.0908 | 10 psig (69 kPag): 0.0958 | 15 psig (103.4 kPag): 0.1173 | 20 psig (137.9 kPag): 0.1354 | 30 psig (206.9 kPag): 0.1659 | 40 psig (275.8 kPag): 0.1915 | 50 psig (344.8 kPag): 0.2141 | 60 psig (413.7 kPag): 0.2346 | 70 psig (482.7 kPag): 0.2534 | 80 psig (551.6 kPag): 0.2709 | 90 psig (620.6 kPag): 0.2873 | 100 psig (689.5 kPag): 0.3028
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.008
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
19
Specifications Screened
None
Specifications Seal Material
Buna-N
