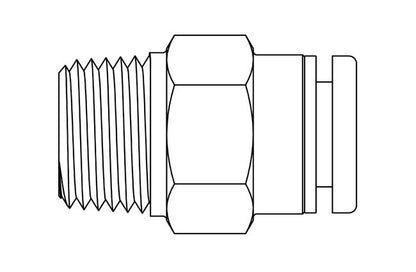

Precision Metal Orifices 1/8" NPT x Tube Adapter
Precision Metal Orifices 1/8" NPT x Tube Adapter
SKU:PRE-d37be8
Enhance fluid control with the Precision Metal Orifices 1/8" NPT x Tube Adapter. Designed for precision and durability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices 1/8" NPT x Tube Adapter
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices 1/8" NPT x Tube Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices 1/8" NPT x Tube Adapter is a top choice for precise flow control in industrial settings. Crafted from durable Brass/Plastic with a Buna-N seal, it ensures reliable operation. With a CV of 0.024 and a maximum operating pressure of 140 psig, this adapter delivers consistent performance. Designed to meet rigorous standards, including Federal/DoD procurement standards and FAR compliance factors, this adapter is ideal for government and institutional procurement. Elevate your fluid control systems with this high-quality, compliant adapter.
Product Specifications
Dimensions Orifice Diameter
0.032 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 6.10 | 5 psig: 13.6 | 10 psig: 19.9 | 15 psig: 24.6 | 20 psig: 28.6 | 25 psig: 32.6 | 30 psig: 36.7 | 40 psig: 44.7 | 50 psig: 53.0 | 60 psig: 61.0 | 70 psig: 69.3 | 80 psig: 77.8 | 90 psig: 86.0 | 100 psig: 94.5
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.88 | 5 psig (34.5 kPag): 6.42 | 10 psig (69.0 kPag): 9.40 | 15 psig (103.4 kPag): 11.6 | 20 psig (137.9 kPag): 13.5 | 25 psig (172.4 kPag): 15.4 | 30 psig (206.9 kPag): 17.3 | 40 psig (275.8 kPag): 21.1 | 50 psig (344.8 kPag): 25.0 | 60 psig (413.7 kPag): 28.8 | 70 psig (482.7 kPag): 32.7 | 80 psig (551.6 kPag): 36.7 | 90 psig (620.6 kPag): 40.6 | 100 psig (689.5 kPag): 44.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 11.5 | 20 In. Hg.: 11.5 | 30 In. Hg.: 11.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.45 | 20 In. Hg. (508 Mm. Hg.): 5.45 | 30 In. Hg. (762 Mm. Hg.): 5.45
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 8.73 | 10 In. Hg.: 10.9
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.12 | 10 In. Hg. (254 Mm. Hg.): 5.16
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.024 | 2 psig: 0.034 | 3 psig: 0.042 | 4 psig: 0.048 | 5 psig: 0.054 | 6 psig: 0.059 | 7 psig: 0.063 | 8 psig: 0.068 | 9 psig: 0.072 | 10 psig: 0.076 | 15 psig: 0.093 | 20 psig: 0.107 | 30 psig: 0.131 | 40 psig: 0.152 | 50 psig: 0.170 | 60 psig: 0.186 | 70 psig: 0.201 | 80 psig: 0.215 | 90 psig: 0.228 | 100 psig: 0.240
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.091 | 2 psig (13.8 kPag): 0.128 | 3 psig (20.7 kPag): 0.157 | 4 psig (27.6 kPag): 0.182 | 5 psig (34.5 kPag): 0.203 | 6 psig (41.4 kPag): 0.203 | 7 psig (48.3 kPag): 0.240 | 8 psig (55.2 kPag): 0.257 | 9 psig (62.1 kPag): 0.273 | 10 psig (69 kPag): 0.287 | 15 psig (103.4 kPag): 0.352 | 20 psig (137.9 kPag): 0.406 | 30 psig (206.9 kPag): 0.498 | 40 psig (275.8 kPag): 0.575 | 50 psig (344.8 kPag): 0.642 | 60 psig (413.7 kPag): 0.704 | 70 psig (482.7 kPag): 0.760 | 80 psig (551.6 kPag): 0.813 | 90 psig (620.6 kPag): 0.862 | 100 psig (689.5 kPag): 0.908
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.024
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
32
Specifications Screened
None
Specifications Seal Material
Buna-N
