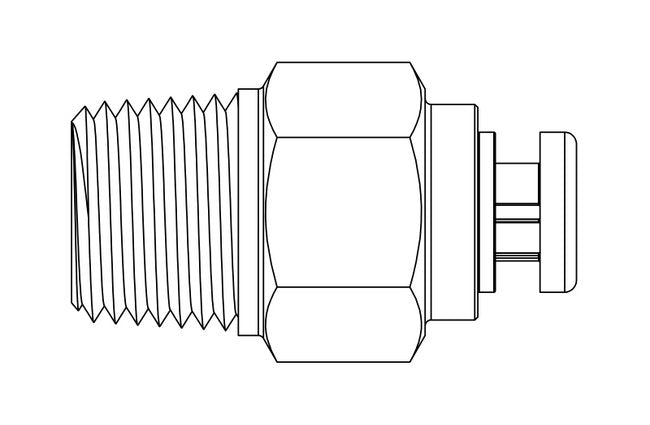

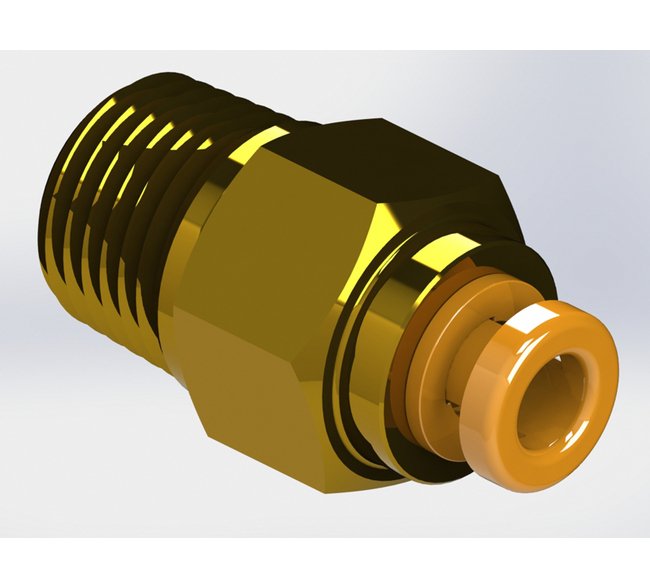

Precision Metal Orifices - 1/8" NPT x Tube Adapters
Precision Metal Orifices - 1/8" NPT x Tube Adapters
SKU:PRE-fa7ad0
Enhance fluid control with Precision Metal Orifices - Brass/Plastic, 1/8" NPT x Tube, 140 psig max pressure, ideal for institutions.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - 1/8" NPT x Tube Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 1/8" NPT x Tube Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid control system with these Precision Metal Orifices. Made of durable Brass and Buna-N materials, these adapters offer a tight seal and high performance with a CV of 0.024. With a maximum operating pressure of 140 psig, they ensure precise air and water flow. Adhering to industry standards, these Orifices meet Federal/DoD procurement, GSA requirements, FAR compliance, and are potentially compatible with Section 508 accessibility standards. Trust in their reliability in meeting your institutional needs.
Product Specifications

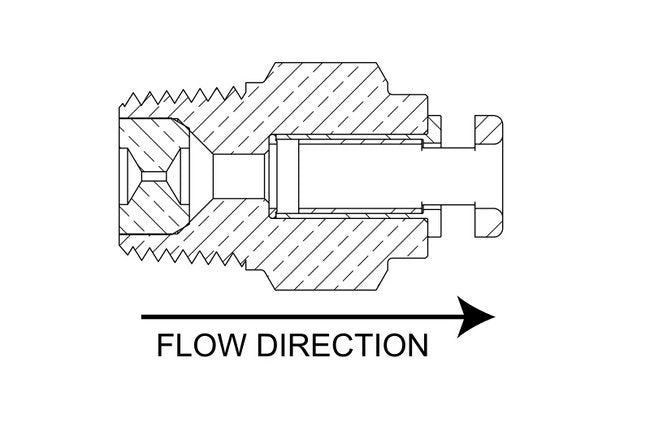

Dimensions Orifice Diameter
0.032 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 6.10 | 5 psig: 13.6 | 10 psig: 19.9 | 15 psig: 24.6 | 20 psig: 28.6 | 25 psig: 32.6 | 30 psig: 36.7 | 40 psig: 44.7 | 50 psig: 53.0 | 60 psig: 61.0 | 70 psig: 69.3 | 80 psig: 77.8 | 90 psig: 86.0 | 100 psig: 94.5
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.88 | 5 psig (34.5 kPag): 6.42 | 10 psig (69.0 kPag): 9.40 | 15 psig (103.4 kPag): 11.6 | 20 psig (137.9 kPag): 13.5 | 25 psig (172.4 kPag): 15.4 | 30 psig (206.9 kPag): 17.3 | 40 psig (275.8 kPag): 21.1 | 50 psig (344.8 kPag): 25.0 | 60 psig (413.7 kPag): 28.8 | 70 psig (482.7 kPag): 32.7 | 80 psig (551.6 kPag): 36.7 | 90 psig (620.6 kPag): 40.6 | 100 psig (689.5 kPag): 44.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 11.5 | 20 In. Hg.: 11.5 | 30 In. Hg.: 11.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.45 | 20 In. Hg. (508 Mm. Hg.): 5.45 | 30 In. Hg. (762 Mm. Hg.): 5.45
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 8.73 | 10 In. Hg.: 10.9
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.12 | 10 In. Hg. (254 Mm. Hg.): 5.16
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.024 | 2 psig: 0.034 | 3 psig: 0.042 | 4 psig: 0.048 | 5 psig: 0.054 | 6 psig: 0.059 | 7 psig: 0.063 | 8 psig: 0.068 | 9 psig: 0.072 | 10 psig: 0.076 | 15 psig: 0.093 | 20 psig: 0.107 | 30 psig: 0.131 | 40 psig: 0.152 | 50 psig: 0.170 | 60 psig: 0.186 | 70 psig: 0.201 | 80 psig: 0.215 | 90 psig: 0.228 | 100 psig: 0.240
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.091 | 2 psig (13.8 kPag): 0.128 | 3 psig (20.7 kPag): 0.157 | 4 psig (27.6 kPag): 0.182 | 5 psig (34.5 kPag): 0.203 | 6 psig (41.4 kPag): 0.203 | 7 psig (48.3 kPag): 0.240 | 8 psig (55.2 kPag): 0.257 | 9 psig (62.1 kPag): 0.273 | 10 psig (69 kPag): 0.287 | 15 psig (103.4 kPag): 0.352 | 20 psig (137.9 kPag): 0.406 | 30 psig (206.9 kPag): 0.498 | 40 psig (275.8 kPag): 0.575 | 50 psig (344.8 kPag): 0.642 | 60 psig (413.7 kPag): 0.704 | 70 psig (482.7 kPag): 0.760 | 80 psig (551.6 kPag): 0.813 | 90 psig (620.6 kPag): 0.862 | 100 psig (689.5 kPag): 0.908
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" OD Tube Push-Lock
Specifications Cv
0.024
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
32
Specifications Screened
None
Specifications Seal Material
Buna-N
