Precision Metal Orifices - 1/8" NPT x Tube Adapters
Precision Metal Orifices - 1/8" NPT x Tube Adapters
SKU:PRE-f2dd93
Enhance flow control with Precision Metal Orifices - 1/8" NPT x Tube Adapters. Reliable, high-quality brass/plastic construction for precise industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - 1/8" NPT x Tube Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 1/8" NPT x Tube Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

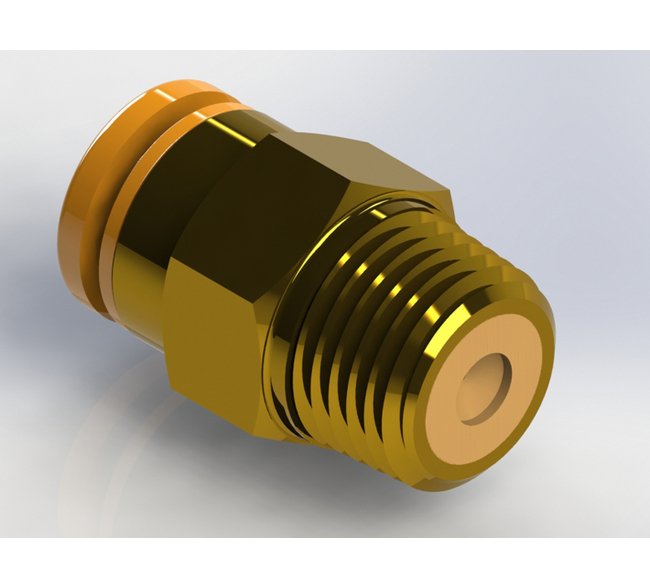

The Precision Metal Orifices - 1/8" NPT x Tube Adapters are meticulously designed for precise flow control in industrial applications. Constructed from high-quality brass/plastic with Buna-N seals, these adapters ensure reliable performance under a maximum operating pressure of 140 psig. With an orifice diameter of 0.02 inches and a CV of 0.0088, they deliver consistent air and water flow rates. Ideal for various pressures and vacuum levels, these adapters meet stringent industry standards for accuracy and durability.

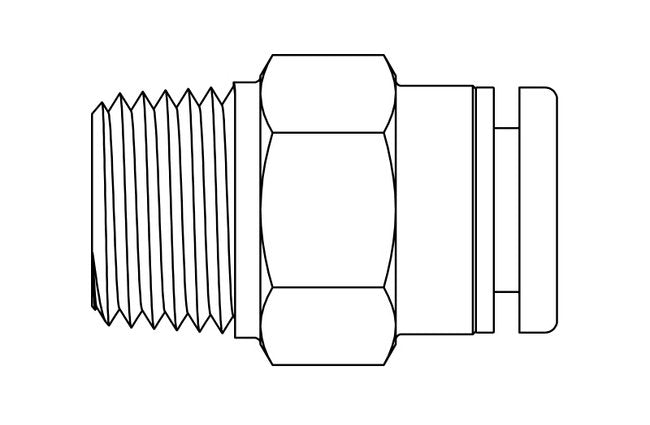

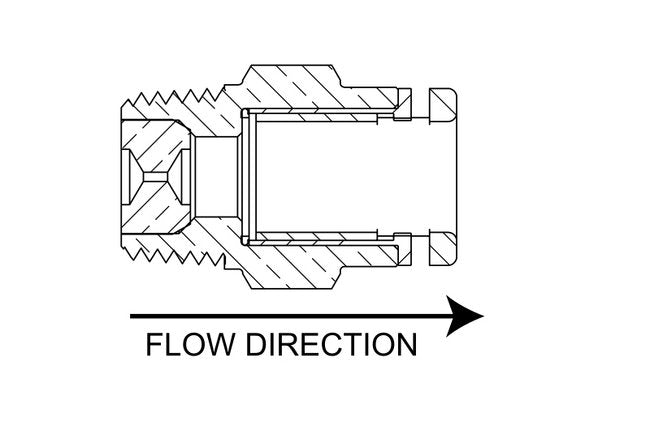

Product Specifications
Dimensions Orifice Diameter
0.02 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.22 | 5 psig: 5.23 | 10 psig: 6.70 | 15 psig: 8.50 | 20 psig: 10.3 | 25 psig: 11.8 | 30 psig: 13.4 | 40 psig: 16.5 | 50 psig: 19.6 | 60 psig: 22.7 | 70 psig: 25.9 | 80 psig: 29.0 | 90 psig: 32.2 | 100 psig: 35.2
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.05 | 5 psig (34.5 kPag): 2.47 | 10 psig (69.0 kPag): 3.16 | 15 psig (103.4 kPag): 4.01 | 20 psig (137.9 kPag): 4.84 | 25 psig (172.4 kPag): 5.59 | 30 psig (206.9 kPag): 6.33 | 40 psig (275.8 kPag): 7.81 | 50 psig (344.8 kPag): 9.26 | 60 psig (413.7 kPag): 10.7 | 70 psig (482.7 kPag): 12.2 | 80 psig (551.6 kPag): 13.7 | 90 psig (620.6 kPag): 15.2 | 100 psig (689.5 kPag): 16.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.64 | 20 In. Hg.: 4.64 | 30 In. Hg.: 4.64
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.19 | 20 In. Hg. (508 Mm. Hg.): 2.19 | 30 In. Hg. (762 Mm. Hg.): 2.19
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 3.28 | 10 In. Hg.: 4.15
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.55 | 10 In. Hg. (254 Mm. Hg.): 1.96
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.009 | 2 psig: 0.012 | 3 psig: 0.015 | 4 psig: 0.018 | 5 psig: 0.020 | 6 psig: 0.022 | 7 psig: 0.023 | 8 psig: 0.025 | 9 psig: 0.026 | 10 psig: 0.028 | 15 psig: 0.034 | 20 psig: 0.039 | 30 psig: 0.048 | 40 psig: 0.056 | 50 psig: 0.062 | 60 psig: 0.068 | 70 psig: 0.074 | 80 psig: 0.079 | 90 psig: 0.083 | 100 psig: 0.088
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.033 | 2 psig (13.8 kPag): 0.047 | 3 psig (20.7 kPag): 0.058 | 4 psig (27.6 kPag): 0.067 | 5 psig (34.5 kPag): 0.074 | 6 psig (41.4 kPag): 0.074 | 7 psig (48.3 kPag): 0.088 | 8 psig (55.2 kPag): 0.094 | 9 psig (62.1 kPag): 0.100 | 10 psig (69 kPag): 0.105 | 15 psig (103.4 kPag): 0.129 | 20 psig (137.9 kPag): 0.149 | 30 psig (206.9 kPag): 0.182 | 40 psig (275.8 kPag): 0.211 | 50 psig (344.8 kPag): 0.236 | 60 psig (413.7 kPag): 0.258 | 70 psig (482.7 kPag): 0.279 | 80 psig (551.6 kPag): 0.298 | 90 psig (620.6 kPag): 0.316 | 100 psig (689.5 kPag): 0.333
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.0088
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
20
Specifications Screened
None
Specifications Seal Material
Buna-N
