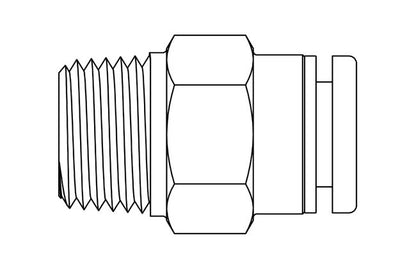

Precision Metal Orifices 1/8" NPT x Tube Adapters
Precision Metal Orifices 1/8" NPT x Tube Adapters
SKU:PRE-b8f7aa
Enhance fluid control with Precision Metal Orifices - Push-On Tube Adapters. Brass/Plastic construction, Buna-N seal, precise dimensions, and compliance with government standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices 1/8" NPT x Tube Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices 1/8" NPT x Tube Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid systems with our Precision Metal Orifices - Push-On Tube Adapters. These adapters, featuring a durable Brass/Plastic construction and Buna-N seal material, ensure high performance with a CV of 0.068 and a maximum operating pressure of 140 psig. With precise dimensions and various flow data options, these adapters offer reliable air and water flow control. Compliant with Federal/DoD procurement standards, GSA requirements, and FAR compliance factors, these adapters are perfect for government and institutional use.
Product Specifications
Dimensions Orifice Diameter
0.055 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 19.90 | 5 psig: 43.0 | 10 psig: 57.4 | 15 psig: 69.7 | 20 psig: 82.0 | 25 psig: 94.5 | 30 psig: 107 | 40 psig: 132 | 50 psig: 157 | 60 psig: 182 | 70 psig: 207 | 80 psig: 231 | 90 psig: 256 | 100 psig: 282
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 9.4 | 5 psig (34.5 kPag): 20.3 | 10 psig (69.0 kPag): 27.1 | 15 psig (103.4 kPag): 32.9 | 20 psig (137.9 kPag): 38.7 | 25 psig (172.4 kPag): 44.6 | 30 psig (206.9 kPag): 50.4 | 40 psig (275.8 kPag): 62.2 | 50 psig (344.8 kPag): 74 | 60 psig (413.7 kPag): 85.8 | 70 psig (482.7 kPag): 97.6 | 80 psig (551.6 kPag): 109 | 90 psig (620.6 kPag): 121 | 100 psig (689.5 kPag): 133
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 33.7 | 20 In. Hg.: 33.7 | 30 In. Hg.: 33.7
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 15.9 | 20 In. Hg. (508 Mm. Hg.): 15.9 | 30 In. Hg. (762 Mm. Hg.): 15.9
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 26.4 | 10 In. Hg.: 32.7
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 12.4 | 10 In. Hg. (254 Mm. Hg.): 15.4
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.068 | 2 psig: 0.096 | 3 psig: 0.118 | 4 psig: 0.136 | 5 psig: 0.152 | 6 psig: 0.167 | 7 psig: 0.180 | 8 psig: 0.192 | 9 psig: 0.204 | 10 psig: 0.215 | 15 psig: 0.263 | 20 psig: 0.304 | 30 psig: 0.372 | 40 psig: 0.430 | 50 psig: 0.481 | 60 psig: 0.527 | 70 psig: 0.569 | 80 psig: 0.608 | 90 psig: 0.645 | 100 psig: 0.680
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.257 | 2 psig (13.8 kPag): 0.364 | 3 psig (20.7 kPag): 0.446 | 4 psig (27.6 kPag): 0.515 | 5 psig (34.5 kPag): 0.576 | 6 psig (41.4 kPag): 0.631 | 7 psig (48.3 kPag): 0.681 | 8 psig (55.2 kPag): 0.728 | 9 psig (62.1 kPag): 0.772 | 10 psig (69 kPag): 0.814 | 15 psig (103.4 kPag): 0.997 | 20 psig (137.9 kPag): 1.151 | 30 psig (206.9 kPag): 1.41 | 40 psig (275.8 kPag): 1.628 | 50 psig (344.8 kPag): 1.820 | 60 psig (413.7 kPag): 1.994 | 70 psig (482.7 kPag): 2.154 | 80 psig (551.6 kPag): 2.302 | 90 psig (620.6 kPag): 2.442 | 100 psig (689.5 kPag): 2.574
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.068
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
55
Specifications Screened
None
Specifications Seal Material
Buna-N
