Precision Metal Orifices - 1/8" NPT x Tube Adapters
Precision Metal Orifices - 1/8" NPT x Tube Adapters
SKU:PRE-5d3c15
Enhance fluid control with Precision Metal Orifices - 1/8" NPT x Tube Adapters, optimal for air and water applications. Reliable performance guaranteed.
Regular price
$23.99
Regular price
Sale price
$23.99
Unit price
per
Initiate Order
Precision Metal Orifices - 1/8" NPT x Tube Adapters
$23.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 1/8" NPT x Tube Adapters
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

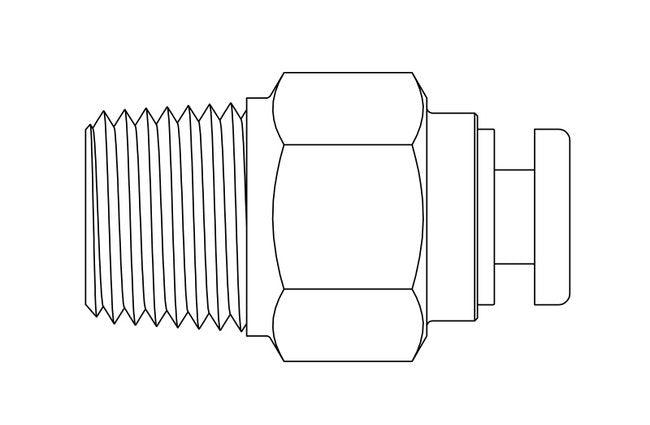

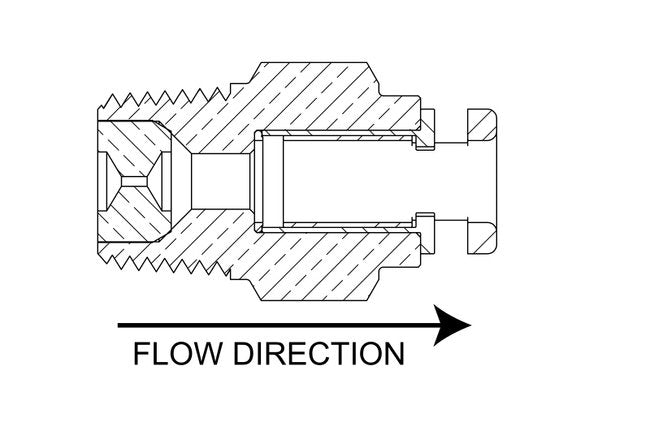

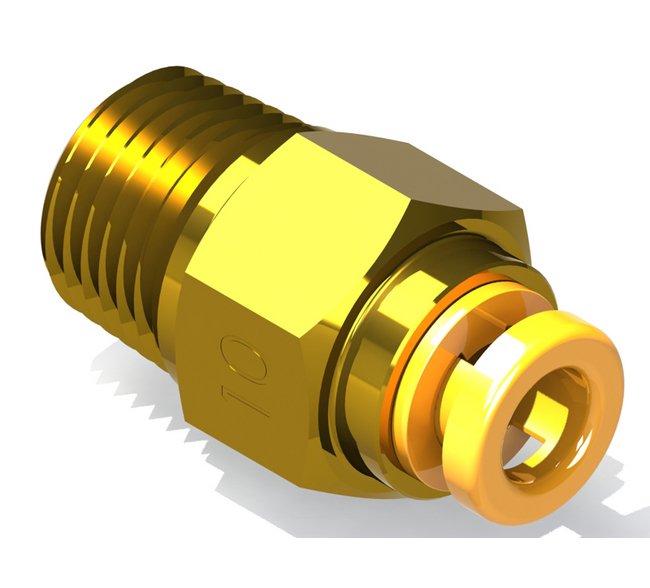

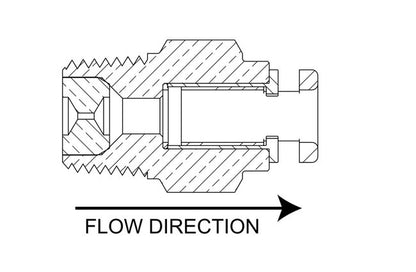

Enhance your fluid control systems with our Precision Metal Orifices - 1/8" NPT x Tube Adapters. Crafted from durable Brass/Plastic with Buna-N seals, these adapters offer a Nominal Orifice Size of 10 and a CV of 0.0025. With a maximum operating pressure of 140 psig, these adapters ensure reliable performance. Ideal for air and water flow applications, meeting strict flow rate standards.
Product Specifications
Dimensions Orifice Diameter
0.0102 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.593 | 5 psig: 1.37 | 10 psig: 1.97 | 15 psig: 2.48 | 20 psig: 2.92 | 25 psig: 3.37 | 30 psig: 3.81 | 40 psig: 4.68 | 50 psig: 5.55 | 60 psig: 6.40 | 70 psig: 7.27 | 80 psig: 8.12 | 90 psig: 8.96 | 100 psig: 9.81
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.280 | 5 psig (34.5 kPag): 0.65 | 10 psig (69.0 kPag): 0.93 | 15 psig (103.4 kPag): 1.17 | 20 psig (137.9 kPag): 1.38 | 25 psig (172.4 kPag): 1.59 | 30 psig (206.9 kPag): 1.80 | 40 psig (275.8 kPag): 2.21 | 50 psig (344.8 kPag): 2.62 | 60 psig (413.7 kPag): 3.02 | 70 psig (482.7 kPag): 3.43 | 80 psig (551.6 kPag): 3.83 | 90 psig (620.6 kPag): 4.23 | 100 psig (689.5 kPag): 4.63
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.20 | 20 In. Hg.: 1.20 | 30 In. Hg.: 1.20
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.566 | 20 In. Hg. (508 Mm. Hg.): 0.566 | 30 In. Hg. (762 Mm. Hg.): 0.566
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.86 | 10 In. Hg.: 1.10
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.406 | 10 In. Hg. (254 Mm. Hg.): 0.519
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0025 | 2 psig: 0.0035 | 3 psig: 0.0043 | 4 psig: 0.005 | 5 psig: 0.0056 | 6 psig: 0.0061 | 7 psig: 0.0066 | 8 psig: 0.0071 | 9 psig: 0.0075 | 10 psig: 0.0079 | 15 psig: 0.0097 | 20 psig: 0.0112 | 30 psig: 0.0137 | 40 psig: 0.0158 | 50 psig: 0.0177 | 60 psig: 0.0194 | 70 psig: 0.0209 | 80 psig: 0.0224 | 90 psig: 0.0237 | 100 psig: 0.0250
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0095 | 2 psig (13.8 kPag): 0.0134 | 3 psig (20.7 kPag): 0.0164 | 4 psig (27.6 kPag): 0.0189 | 5 psig (34.5 kPag): 0.0212 | 6 psig (41.4 kPag): 0.0212 | 7 psig (48.3 kPag): 0.0250 | 8 psig (55.2 kPag): 0.0268 | 9 psig (62.1 kPag): 0.0284 | 10 psig (69 kPag): 0.0299 | 15 psig (103.4 kPag): 0.0367 | 20 psig (137.9 kPag): 0.0423 | 30 psig (206.9 kPag): 0.0518 | 40 psig (275.8 kPag): 0.0599 | 50 psig (344.8 kPag): 0.0669 | 60 psig (413.7 kPag): 0.0733 | 70 psig (482.7 kPag): 0.0792 | 80 psig (551.6 kPag): 0.0846 | 90 psig (620.6 kPag): 0.0898 | 100 psig (689.5 kPag): 0.0946
Specifications Connection A
1/8" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.0025
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
10
Specifications Screened
None
Specifications Seal Material
Buna-N
