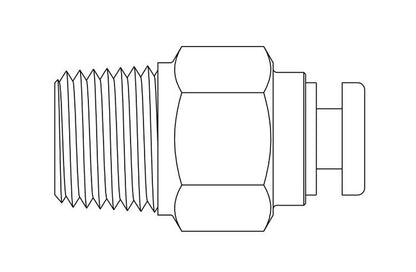

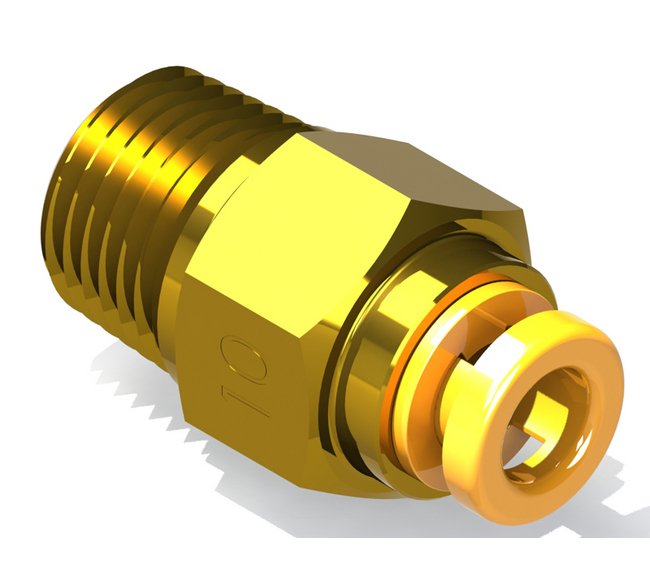

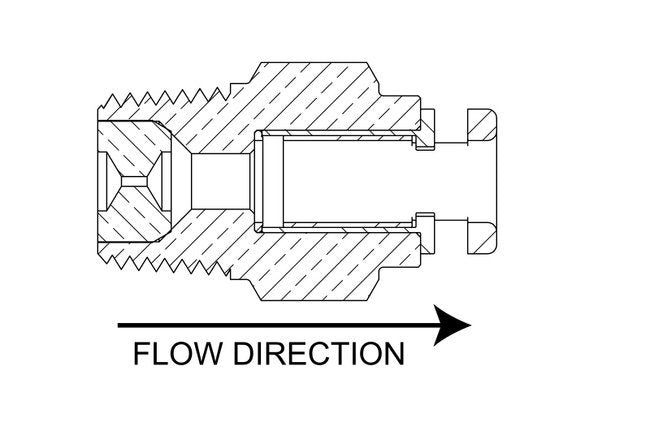

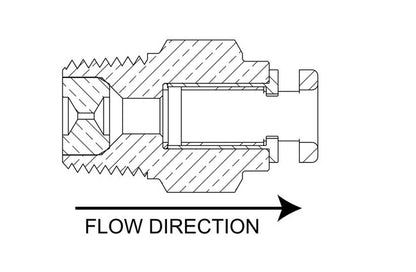

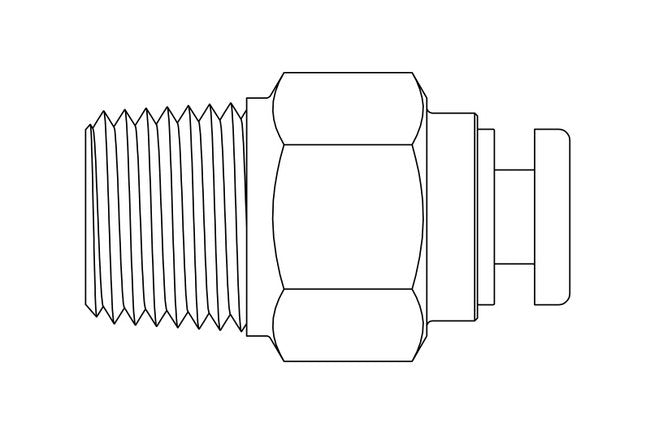

The Precision Metal Orifices - 1/8" NPT x Tube Adapters are expertly designed for precise flow control in industrial settings. Constructed from durable Brass/Plastic with Buna-N seals, these adapters ensure a tight seal under various pressures up to 140 psig. With an orifice diameter of 0.0071 inches and a CV of 0.0012, these adapters offer accurate flow rates. Ideal for applications requiring meticulous air or water flow control, these adapters comply with Federal/DoD procurement standards, GSA requirements, and FAR compliance factors.
Product Specifications
Dimensions Orifice Diameter
0.0071 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.269 | 5 psig: 0.64 | 10 psig: 0.91 | 15 psig: 1.14 | 20 psig: 1.38 | 25 psig: 1.59 | 30 psig: 1.80 | 40 psig: 2.22 | 50 psig: 2.67 | 60 psig: 3.09 | 70 psig: 3.54 | 80 psig: 3.96 | 90 psig: 4.41 | 100 psig: 4.83
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.127 | 5 psig (34.5 kPag): 0.30 | 10 psig (69.0 kPag): 0.43 | 15 psig (103.4 kPag): 0.54 | 20 psig (137.9 kPag): 0.65 | 25 psig (172.4 kPag): 0.75 | 30 psig (206.9 kPag): 0.85 | 40 psig (275.8 kPag): 1.05 | 50 psig (344.8 kPag): 1.26 | 60 psig (413.7 kPag): 1.46 | 70 psig (482.7 kPag): 1.67 | 80 psig (551.6 kPag): 1.87 | 90 psig (620.6 kPag): 2.08 | 100 psig (689.5 kPag): 2.28
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.568 | 20 In. Hg.: 0.568 | 30 In. Hg.: 0.568
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.268 | 20 In. Hg. (508 Mm. Hg.): 0.268 | 30 In. Hg. (762 Mm. Hg.): 0.268
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.405 | 10 In. Hg.: 0.521
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.191 | 10 In. Hg. (254 Mm. Hg.): 0.246
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0012 | 2 psig: 0.0017 | 3 psig: 0.0021 | 4 psig: 0.0024 | 5 psig: 0.0027 | 6 psig: 0.0029 | 7 psig: 0.0032 | 8 psig: 0.0034 | 9 psig: 0.0036 | 10 psig: 0.0038 | 15 psig: 0.0046 | 20 psig: 0.0054 | 30 psig: 0.0066 | 40 psig: 0.0076 | 50 psig: 0.0085 | 60 psig: 0.0093 | 70 psig: 0.0100 | 80 psig: 0.0107 | 90 psig: 0.0114 | 100 psig: 0.0120
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0045 | 2 psig (13.8 kPag): 0.0064 | 3 psig (20.7 kPag): 0.0079 | 4 psig (27.6 kPag): 0.0091 | 5 psig (34.5 kPag): 0.0102 | 6 psig (41.4 kPag): 0.0102 | 7 psig (48.3 kPag): 0.0120 | 8 psig (55.2 kPag): 0.0128 | 9 psig (62.1 kPag): 0.0136 | 10 psig (69 kPag): 0.0144 | 15 psig (103.4 kPag): 0.0176 | 20 psig (137.9 kPag): 0.0203 | 30 psig (206.9 kPag): 0.0249 | 40 psig (275.8 kPag): 0.0287 | 50 psig (344.8 kPag): 0.0321 | 60 psig (413.7 kPag): 0.0352 | 70 psig (482.7 kPag): 0.0380 | 80 psig (551.6 kPag): 0.0406 | 90 psig (620.6 kPag): 0.0431 | 100 psig (689.5 kPag): 0.0454
Specifications Connection A
1/8" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.0012
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
7
Specifications Screened
None
Specifications Seal Material
Buna-N
