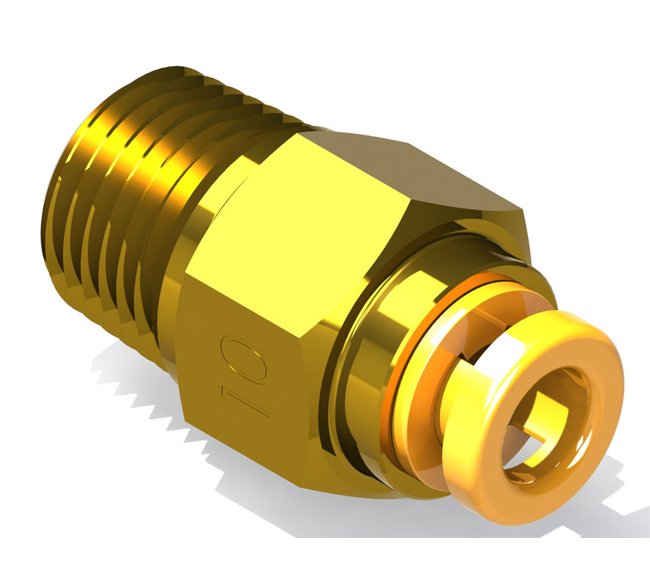

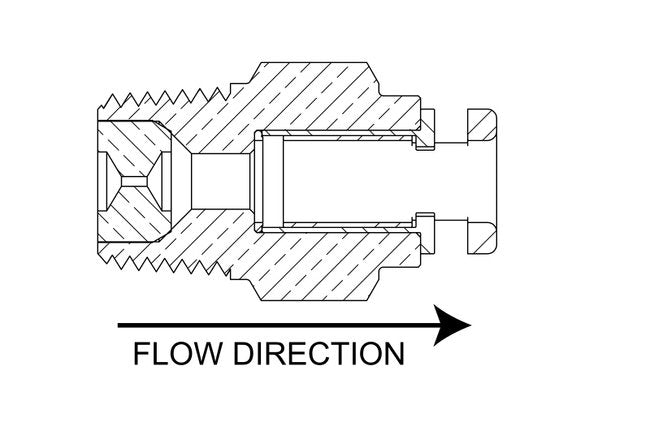

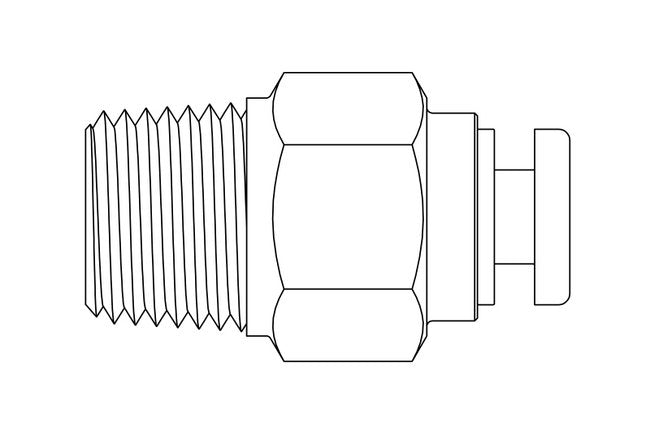

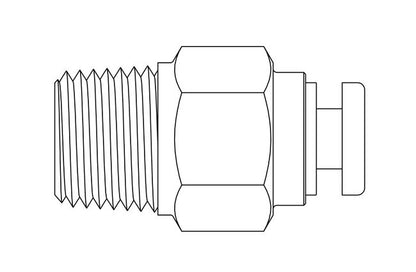

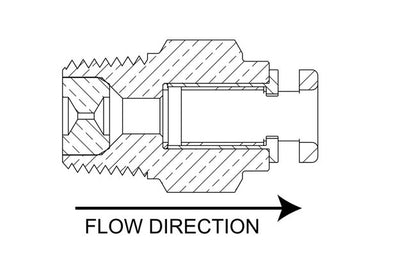

The Precision Metal Orifices 1/8" NPT x Tube Adapters are expertly designed for precise fluid control applications. Constructed from high-quality Brass/Plastic, featuring a Buna-N seal, these adapters ensure reliable performance at a maximum operating pressure of 140 psig. With an Orifice Diameter of 0.029 in and a CV of 0.019, these adapters offer efficient air and water flow control, meeting the stringent standards of institutional buyers.
Product Specifications
Dimensions Orifice Diameter
0.029 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 5.06 | 5 psig: 11.3 | 10 psig: 16.6 | 15 psig: 20.3 | 20 psig: 23.7 | 25 psig: 27.1 | 30 psig: 30.5 | 40 psig: 37.1 | 50 psig: 43.9 | 60 psig: 50.4 | 70 psig: 57.2 | 80 psig: 64.0 | 90 psig: 71.0 | 100 psig: 78.0
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.39 | 5 psig (34.5 kPag): 5.31 | 10 psig (69.0 kPag): 7.83 | 15 psig (103.4 kPag): 9.58 | 20 psig (137.9 kPag): 11.2 | 25 psig (172.4 kPag): 12.8 | 30 psig (206.9 kPag): 14.4 | 40 psig (275.8 kPag): 17.5 | 50 psig (344.8 kPag): 20.7 | 60 psig (413.7 kPag): 23.8 | 70 psig (482.7 kPag): 27.0 | 80 psig (551.6 kPag): 30.2 | 90 psig (620.6 kPag): 33.5 | 100 psig (689.5 kPag): 36.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 9.56 | 20 In. Hg.: 9.56 | 30 In. Hg.: 9.56
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 4.51 | 20 In. Hg. (508 Mm. Hg.): 4.51 | 30 In. Hg. (762 Mm. Hg.): 4.51
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 7.23 | 10 In. Hg.: 9.11
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 3.41 | 10 In. Hg. (254 Mm. Hg.): 4.30
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.019 | 2 psig: 0.027 | 3 psig: 0.033 | 4 psig: 0.038 | 5 psig: 0.042 | 6 psig: 0.047 | 7 psig: 0.050 | 8 psig: 0.054 | 9 psig: 0.057 | 10 psig: 0.060 | 15 psig: 0.074 | 20 psig: 0.085 | 30 psig: 0.104 | 40 psig: 0.120 | 50 psig: 0.134 | 60 psig: 0.147 | 70 psig: 0.159 | 80 psig: 0.170 | 90 psig: 0.180 | 100 psig: 0.190
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.072 | 2 psig (13.8 kPag): 0.102 | 3 psig (20.7 kPag): 0.125 | 4 psig (27.6 kPag): 0.144 | 5 psig (34.5 kPag): 0.161 | 6 psig (41.4 kPag): 0.161 | 7 psig (48.3 kPag): 0.190 | 8 psig (55.2 kPag): 0.203 | 9 psig (62.1 kPag): 0.216 | 10 psig (69 kPag): 0.227 | 15 psig (103.4 kPag): 0.279 | 20 psig (137.9 kPag): 0.322 | 30 psig (206.9 kPag): 0.394 | 40 psig (275.8 kPag): 0.455 | 50 psig (344.8 kPag): 0.509 | 60 psig (413.7 kPag): 0.557 | 70 psig (482.7 kPag): 0.602 | 80 psig (551.6 kPag): 0.643 | 90 psig (620.6 kPag): 0.682 | 100 psig (689.5 kPag): 0.719
Specifications Connection A
1/8" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.019
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
29
Specifications Screened
None
Specifications Seal Material
Buna-N
