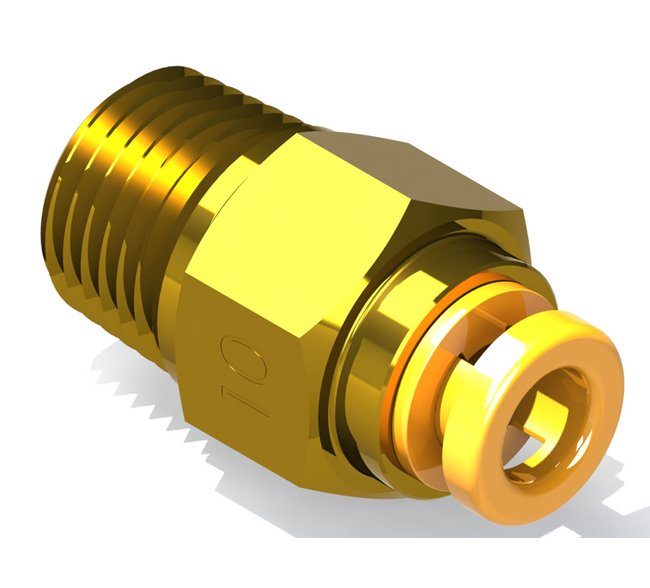

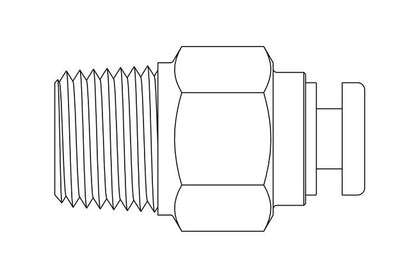

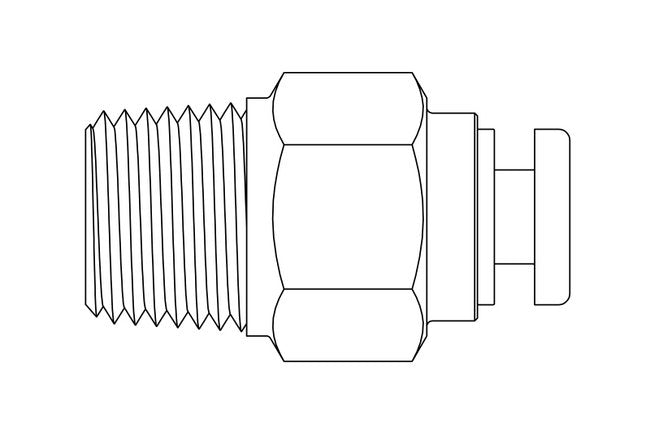

Precision Metal Orifices - 1/8" NPT x Tube Adapters
Precision Metal Orifices - 1/8" NPT x Tube Adapters
SKU:PRE-d01b21
Enhance flow control with Precision Metal Orifices - 1/8" NPT x Tube Adapters. Reliable, durable, and high-performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - 1/8" NPT x Tube Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 1/8" NPT x Tube Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

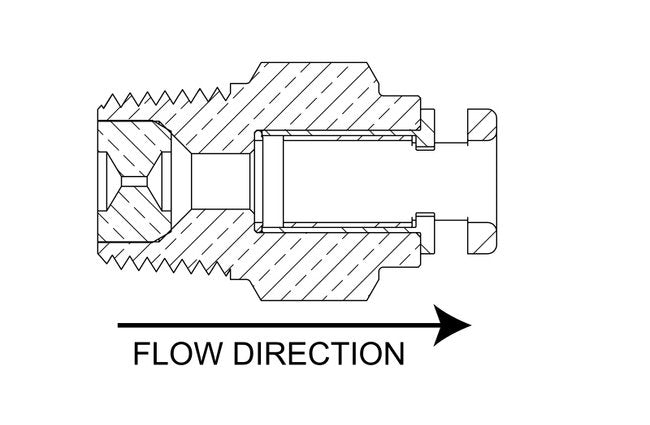

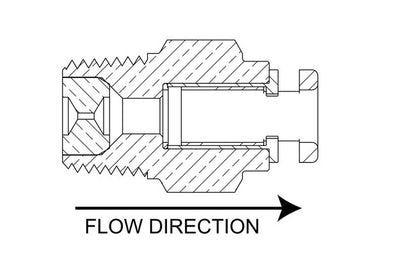

The Precision Metal Orifices - 1/8" NPT x Tube Adapters are crafted for optimal performance in industrial settings. Made of durable brass/plastic with a Buna-N seal, they ensure reliable operation at a maximum pressure of 140 psig, meeting stringent industry standards. With precise orifice dimensions and a CV of 0.039, these adapters deliver consistent air and water flow rates. Ideal for applications requiring accurate flow control, these adapters provide exceptional performance and longevity.
Product Specifications
Dimensions Orifice Diameter
0.042 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 10.60 | 5 psig: 23.9 | 10 psig: 33.1 | 15 psig: 40.5 | 20 psig: 47.7 | 25 psig: 54.9 | 30 psig: 62.3 | 40 psig: 76.9 | 50 psig: 91.7 | 60 psig: 107 | 70 psig: 122 | 80 psig: 137 | 90 psig: 151 | 100 psig: 167
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.99 | 5 psig (34.5 kPag): 11.3 | 10 psig (69.0 kPag): 15.6 | 15 psig (103.4 kPag): 19.1 | 20 psig (137.9 kPag): 22.5 | 25 psig (172.4 kPag): 25.9 | 30 psig (206.9 kPag): 29.4 | 40 psig (275.8 kPag): 36.3 | 50 psig (344.8 kPag): 43.3 | 60 psig (413.7 kPag): 50.3 | 70 psig (482.7 kPag): 57.4 | 80 psig (551.6 kPag): 64.5 | 90 psig (620.6 kPag): 71.5 | 100 psig (689.5 kPag): 78.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 20.0 | 20 In. Hg.: 20.0 | 30 In. Hg.: 20.0
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 9.46 | 20 In. Hg. (508 Mm. Hg.): 9.46 | 30 In. Hg. (762 Mm. Hg.): 9.46
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 15.4 | 10 In. Hg.: 19.2
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 7.29 | 10 In. Hg. (254 Mm. Hg.): 9.08
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.039 | 2 psig: 0.055 | 3 psig: 0.068 | 4 psig: 0.078 | 5 psig: 0.087 | 6 psig: 0.096 | 7 psig: 0.103 | 8 psig: 0.110 | 9 psig: 0.117 | 10 psig: 0.123 | 15 psig: 0.151 | 20 psig: 0.174 | 30 psig: 0.214 | 40 psig: 0.247 | 50 psig: 0.276 | 60 psig: 0.302 | 70 psig: 0.326 | 80 psig: 0.349 | 90 psig: 0.370 | 100 psig: 0.390
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.148 | 2 psig (13.8 kPag): 0.209 | 3 psig (20.7 kPag): 0.256 | 4 psig (27.6 kPag): 0.295 | 5 psig (34.5 kPag): 0.330 | 6 psig (41.4 kPag): 0.362 | 7 psig (48.3 kPag): 0.391 | 8 psig (55.2 kPag): 0.418 | 9 psig (62.1 kPag): 0.443 | 10 psig (69 kPag): 0.467 | 15 psig (103.4 kPag): 0.572 | 20 psig (137.9 kPag): 0.660 | 30 psig (206.9 kPag): 0.809 | 40 psig (275.8 kPag): 0.934 | 50 psig (344.8 kPag): 1.044 | 60 psig (413.7 kPag): 1.144 | 70 psig (482.7 kPag): 1.235 | 80 psig (551.6 kPag): 1.320 | 90 psig (620.6 kPag): 1.401 | 100 psig (689.5 kPag): 1.476
Specifications Connection A
1/8" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.039
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
42
Specifications Screened
None
Specifications Seal Material
Buna-N
