Precision Metal Orifices - 10-32 UNF Adapter
Precision Metal Orifices - 10-32 UNF Adapter
SKU:PRE-d53e7c
High-quality Precision Metal Orifices - 10-32 UNF Adapter for precise flow control and superior performance. Ideal for gases, liquids, and pneumatic/hydraulic circuits.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - 10-32 UNF Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 10-32 UNF Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

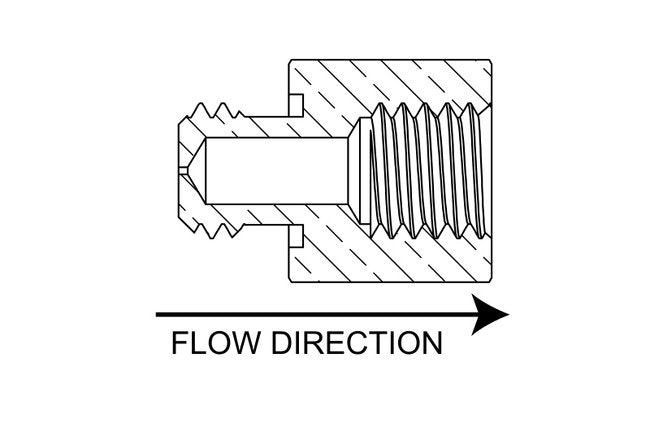

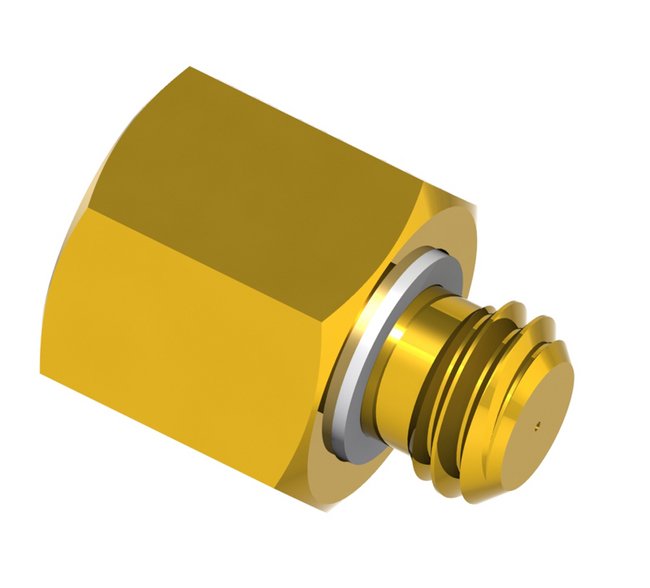

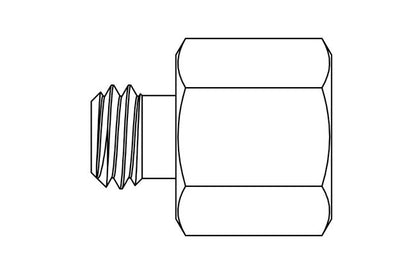

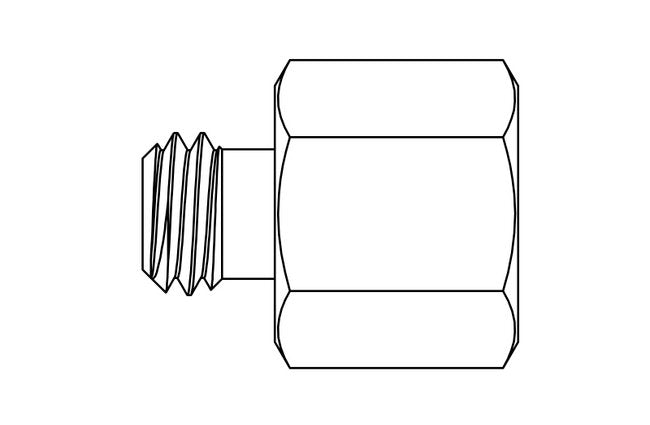

The Precision Metal Orifices - 10-32 UNF Adapter are meticulously machined, rigorously cleaned, and flow tested to meet exacting standards. Crafted from high-quality brass, these orifices boast a precise orifice diameter of 0.037 inches with an accuracy of ±0.0005 inches. Ideal for precision flow control of gases or liquids, speed controls in cylinders and actuators, accurate timing in pneumatic or hydraulic circuits, flow restriction, accurate throttling, and more. With a maximum operating pressure of 100 psig and impressive flow data, these orifices ensure reliable performance in a variety of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Precision Flow Control - Gases or Liquids Speed Controls - Cylinders and Actuators Accurate Timing in Pneumatic or Hydraulic Circuits Flow Restriction Accurate Throttling Snubbers - Gages and Instruments
Dimensions Orifice Diameter
0.037 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
0.440 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 8.12 | 5 psig: 18.0 | 10 psig: 25.0 | 15 psig: 30.7 | 20 psig: 36.0 | 25 psig: 41.5 | 30 psig: 47.0 | 40 psig: 58.1 | 50 psig: 69.1 | 60 psig: 80.5 | 70 psig: 91.7 | 80 psig: 103 | 90 psig: 115 | 100 psig: 126
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.83 | 5 psig (34.5 kPag): 8.48 | 10 psig (69.0 kPag): 11.8 | 15 psig (103.4 kPag): 14.5 | 20 psig (137.9 kPag): 17 | 25 psig (172.4 kPag): 19.6 | 30 psig (206.9 kPag): 22.2 | 40 psig (275.8 kPag): 27.4 | 50 psig (344.8 kPag): 32.6 | 60 psig (413.7 kPag): 38 | 70 psig (482.7 kPag): 43.3 | 80 psig (551.6 kPag): 48.7 | 90 psig (620.6 kPag): 54.2 | 100 psig (689.5 kPag): 59.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 15.2 | 20 In. Hg.: 15.2 | 30 In. Hg.: 15.2
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 7.17 | 20 In. Hg. (508 Mm. Hg.): 7.17 | 30 In. Hg. (762 Mm. Hg.): 7.17
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 11.4 | 10 In. Hg.: 14.4
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 5.4 | 10 In. Hg. (254 Mm. Hg.): 6.78
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.031 | 2 psig: 0.044 | 3 psig: 0.054 | 4 psig: 0.062 | 5 psig: 0.069 | 6 psig: 0.076 | 7 psig: 0.082 | 8 psig: 0.088 | 9 psig: 0.093 | 10 psig: 0.098 | 15 psig: 0.120 | 20 psig: 0.139 | 30 psig: 0.170 | 40 psig: 0.196 | 50 psig: 0.219 | 60 psig: 0.240 | 70 psig: 0.259 | 80 psig: 0.277 | 90 psig: 0.294 | 100 psig: 0.310
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.117 | 2 psig (13.8 kPag): 0.166 | 3 psig (20.7 kPag): 0.203 | 4 psig (27.6 kPag): 0.235 | 5 psig (34.5 kPag): 0.262 | 6 psig (41.4 kPag): 0.287 | 7 psig (48.3 kPag): 0.310 | 8 psig (55.2 kPag): 0.332 | 9 psig (62.1 kPag): 0.352 | 10 psig (69 kPag): 0.371 | 15 psig (103.4 kPag): 0.454 | 20 psig (137.9 kPag): 0.525 | 30 psig (206.9 kPag): 0.643 | 40 psig (275.8 kPag): 0.742 | 50 psig (344.8 kPag): 0.83 | 60 psig (413.7 kPag): 0.909 | 70 psig (482.7 kPag): 0.982 | 80 psig (551.6 kPag): 1.050 | 90 psig (620.6 kPag): 1.113 | 100 psig (689.5 kPag): 1.173
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cv
0.031
Specifications Material
Brass
Specifications Maximum Operating Pressure
100 psig
Specifications Nominal Orifice Size
37
Specifications Screened
None
