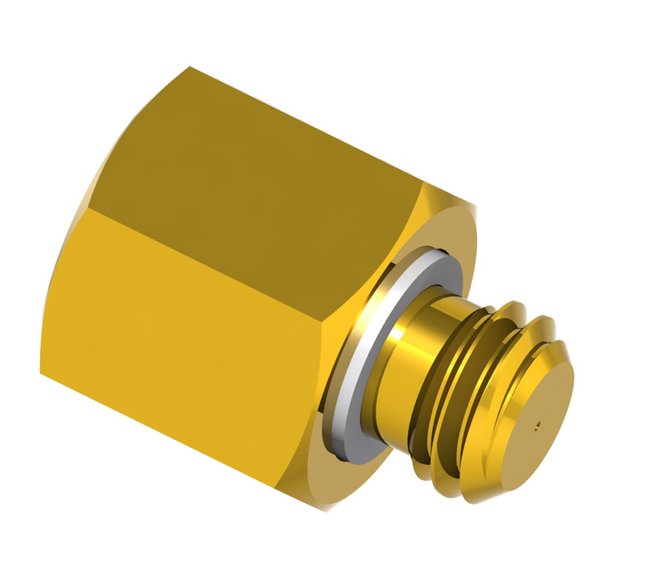

Precision Metal Orifices 10-32 UNF Adapter
Precision Metal Orifices 10-32 UNF Adapter
SKU:PRE-f839d2
High-quality Precision Metal Orifices for precise flow control in gas and liquid applications. Reliable performance guaranteed.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Metal Orifices 10-32 UNF Adapter
$49.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices 10-32 UNF Adapter
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices 10-32 UNF Adapter is meticulously machined from high-quality brass, meeting stringent industry standards for accuracy and reliability. With an orifice diameter range from 0.004" to 0.063", each adapter is precisely tested for flawless performance. Ideal for precision flow control in gas or liquid applications, this adapter ensures accurate timing in pneumatic or hydraulic systems. From speed controls to flow restriction, these orifices provide exceptional durability and consistent performance, meeting the demanding needs of both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Precision Flow Control - Gases or Liquids Speed Controls - Cylinders and Actuators Accurate Timing in Pneumatic or Hydraulic Circuits Flow Restriction Accurate Throttling Snubbers - Gages and Instruments
Dimensions Orifice Diameter
0.063 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
0.440 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 25.9 | 5 psig: 55.3 | 10 psig: 74.6 | 15 psig: 90.3 | 20 psig: 106 | 25 psig: 122 | 30 psig: 138 | 40 psig: 170 | 50 psig: 202 | 60 psig: 233 | 70 psig: 267 | 80 psig: 298 | 90 psig: 331 | 100 psig: 362
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 12.2 | 5 psig (34.5 kPag): 26.1 | 10 psig (69.0 kPag): 35.2 | 15 psig (103.4 kPag): 42.6 | 20 psig (137.9 kPag): 50.1 | 25 psig (172.4 kPag): 57.7 | 30 psig (206.9 kPag): 65.2 | 40 psig (275.8 kPag): 80.3 | 50 psig (344.8 kPag): 95.4 | 60 psig (413.7 kPag): 110 | 70 psig (482.7 kPag): 126 | 80 psig (551.6 kPag): 141 | 90 psig (620.6 kPag): 156 | 100 psig (689.5 kPag): 171
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 46.8 | 20 In. Hg.: 46.8 | 30 In. Hg.: 46.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 22.1 | 20 In. Hg. (508 Mm. Hg.): 22.1 | 30 In. Hg. (762 Mm. Hg.): 22.1
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 36.2 | 10 In. Hg.: 44.9
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 17.1 | 10 In. Hg. (254 Mm. Hg.): 21.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.088 | 2 psig: 0.124 | 3 psig: 0.152 | 4 psig: 0.176 | 5 psig: 0.197 | 6 psig: 0.216 | 7 psig: 0.233 | 8 psig: 0.249 | 9 psig: 0.264 | 10 psig: 0.278 | 15 psig: 0.341 | 20 psig: 0.394 | 30 psig: 0.482 | 40 psig: 0.557 | 50 psig: 0.622 | 60 psig: 0.682 | 70 psig: 0.736 | 80 psig: 0.787 | 90 psig: 0.835 | 100 psig: 0.880
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.333 | 2 psig (13.8 kPag): 0.471 | 3 psig (20.7 kPag): 0.577 | 4 psig (27.6 kPag): 0.666 | 5 psig (34.5 kPag): 0.745 | 6 psig (41.4 kPag): 0.816 | 7 psig (48.3 kPag): 0.881 | 8 psig (55.2 kPag): 0.942 | 9 psig (62.1 kPag): 0.999 | 10 psig (69 kPag): 1.053 | 15 psig (103.4 kPag): 1.290 | 20 psig (137.9 kPag): 1.490 | 30 psig (206.9 kPag): 1.825 | 40 psig (275.8 kPag): 2.107 | 50 psig (344.8 kPag): 2.355 | 60 psig (413.7 kPag): 2.580 | 70 psig (482.7 kPag): 2.787 | 80 psig (551.6 kPag): 2.979 | 90 psig (620.6 kPag): 3.16 | 100 psig (689.5 kPag): 3.331
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cv
0.088
Specifications Material
Brass
Specifications Maximum Operating Pressure
100 psig
Specifications Nominal Orifice Size
63
Specifications Screened
None
