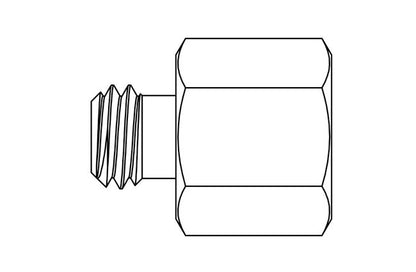

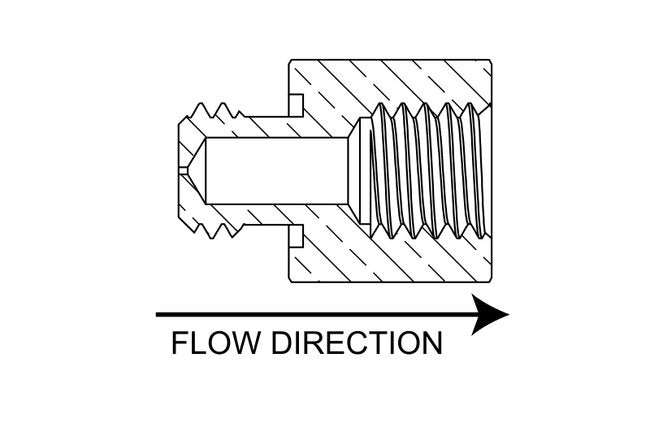

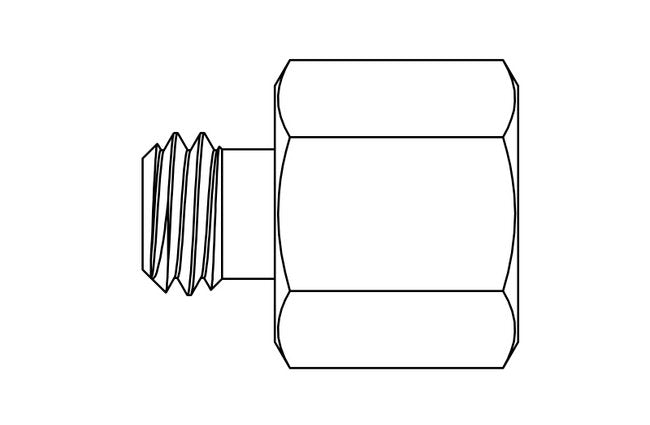

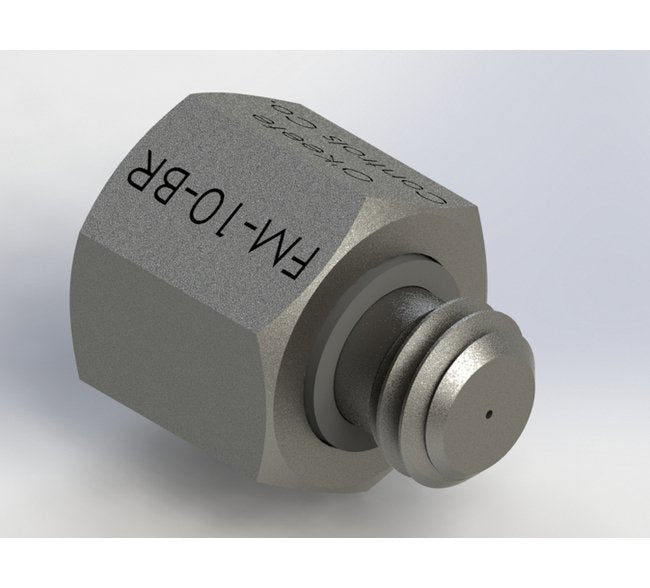

The Precision Metal Orifices 10-32 UNF Adapter is meticulously machined from high-quality 303 SS, ensuring precise flow control in both gases and liquids. With an orifice diameter of 0.032 inches and an accuracy of ±0.0005 inches, this adapter guarantees optimal performance. Ideal for applications requiring speed control, accurate timing, flow restriction, and throttling, this product is tested to exacting standards. Experience reliable and efficient flow management with this precision instrument.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Precision Flow Control - Gases or Liquids Speed Controls - Cylinders and Actuators Accurate Timing in Pneumatic or Hydraulic Circuits Flow Restriction Accurate Throttling Snubbers - Gages and Instruments
Dimensions Orifice Diameter
0.032 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
0.440 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 6.10 | 5 psig: 13.6 | 10 psig: 19.9 | 15 psig: 24.6 | 20 psig: 28.6 | 25 psig: 32.6 | 30 psig: 36.7 | 40 psig: 44.7 | 50 psig: 53.0 | 60 psig: 61.0 | 70 psig: 69.3 | 80 psig: 77.8 | 90 psig: 86.0 | 100 psig: 94.5
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.88 | 5 psig (34.5 kPag): 6.42 | 10 psig (69.0 kPag): 9.40 | 15 psig (103.4 kPag): 11.6 | 20 psig (137.9 kPag): 13.5 | 25 psig (172.4 kPag): 15.4 | 30 psig (206.9 kPag): 17.3 | 40 psig (275.8 kPag): 21.1 | 50 psig (344.8 kPag): 25.0 | 60 psig (413.7 kPag): 28.8 | 70 psig (482.7 kPag): 32.7 | 80 psig (551.6 kPag): 36.7 | 90 psig (620.6 kPag): 40.6 | 100 psig (689.5 kPag): 44.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 11.5 | 20 In. Hg.: 11.5 | 30 In. Hg.: 11.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.45 | 20 In. Hg. (508 Mm. Hg.): 5.45 | 30 In. Hg. (762 Mm. Hg.): 5.45
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 8.73 | 10 In. Hg.: 10.9
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.12 | 10 In. Hg. (254 Mm. Hg.): 5.16
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.024 | 2 psig: 0.034 | 3 psig: 0.042 | 4 psig: 0.048 | 5 psig: 0.054 | 6 psig: 0.059 | 7 psig: 0.063 | 8 psig: 0.068 | 9 psig: 0.072 | 10 psig: 0.076 | 15 psig: 0.093 | 20 psig: 0.107 | 30 psig: 0.131 | 40 psig: 0.152 | 50 psig: 0.170 | 60 psig: 0.186 | 70 psig: 0.201 | 80 psig: 0.215 | 90 psig: 0.228 | 100 psig: 0.240
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.091 | 2 psig (13.8 kPag): 0.128 | 3 psig (20.7 kPag): 0.157 | 4 psig (27.6 kPag): 0.182 | 5 psig (34.5 kPag): 0.203 | 6 psig (41.4 kPag): 0.203 | 7 psig (48.3 kPag): 0.240 | 8 psig (55.2 kPag): 0.257 | 9 psig (62.1 kPag): 0.273 | 10 psig (69 kPag): 0.287 | 15 psig (103.4 kPag): 0.352 | 20 psig (137.9 kPag): 0.406 | 30 psig (206.9 kPag): 0.498 | 40 psig (275.8 kPag): 0.575 | 50 psig (344.8 kPag): 0.642 | 60 psig (413.7 kPag): 0.704 | 70 psig (482.7 kPag): 0.760 | 80 psig (551.6 kPag): 0.813 | 90 psig (620.6 kPag): 0.862 | 100 psig (689.5 kPag): 0.908
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cv
0.024
Specifications Material
303 SS
Specifications Maximum Operating Pressure
100 psig
Specifications Nominal Orifice Size
32
Specifications Screened
None
