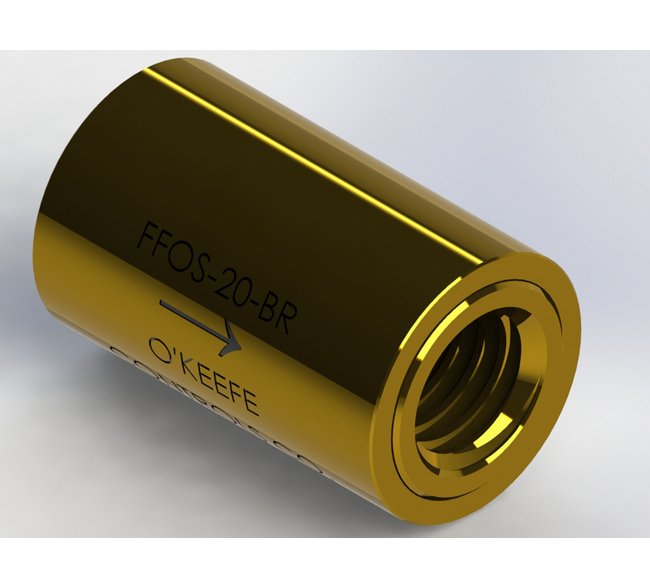

Precision Metal Orifices - 10-32 UNF Coupler
Precision Metal Orifices - 10-32 UNF Coupler
SKU:PRE-858763
Enhance precision control with our brass Precision Orifices. Ensure accuracy in flow control for gases or liquids with our 10-32 UNF Coupler.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Metal Orifices - 10-32 UNF Coupler
$49.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - 10-32 UNF Coupler
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

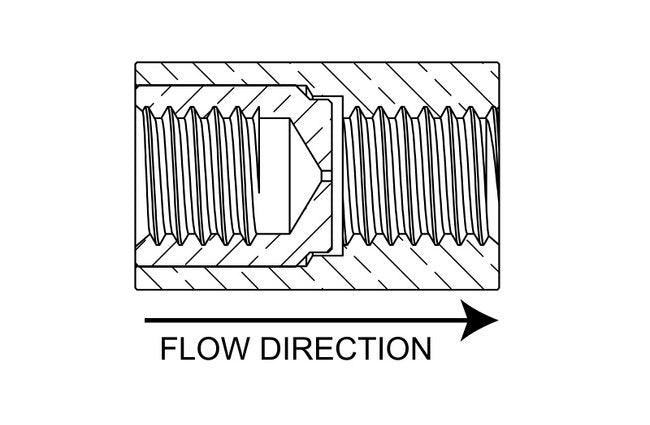

Experience unparalleled precision with our Precision Metal Orifices - 10-32 UNF Coupler. Made from high-grade brass, each orifice is meticulously machined and rigorously tested to meet the highest standards of accuracy and performance. With an orifice diameter of 0.031 inches and a tolerance of ±0.0005 inches, these couplers ensure consistent and reliable flow control. Ideal for precision applications in gas or liquid environments, these orifices excel in speed controls, accurate timing, flow restriction, throttling, and snubber operations. Trust in our orifices for seamless integration into pneumatic or hydraulic systems, delivering unmatched efficiency and control.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Precision Flow Control - Gases or Liquids Speed Controls - Cylinders and Actuators Accurate Timing in Pneumatic or Hydraulic Circuits Flow Restriction Accurate Throttling Snubbers - Gages and Instruments
Dimensions Orifice Diameter
0.031 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Outside Diameter
0.312 in
Dimensions Total Length
0.510 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 5.62 | 5 psig: 12.4 | 10 psig: 18.3 | 15 psig: 22.5 | 20 psig: 26.3 | 25 psig: 30.1 | 30 psig: 33.7 | 40 psig: 41.1 | 50 psig: 48.5 | 60 psig: 55.9 | 70 psig: 63.6 | 80 psig: 71.2 | 90 psig: 78.8 | 100 psig: 86.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.65 | 5 psig (34.5 kPag): 5.86 | 10 psig (69.0 kPag): 8.63 | 15 psig (103.4 kPag): 10.6 | 20 psig (137.9 kPag): 12.4 | 25 psig (172.4 kPag): 14.2 | 30 psig (206.9 kPag): 15.9 | 40 psig (275.8 kPag): 19.4 | 50 psig (344.8 kPag): 22.9 | 60 psig (413.7 kPag): 26.4 | 70 psig (482.7 kPag): 30.0 | 80 psig (551.6 kPag): 33.6 | 90 psig (620.6 kPag): 37.2 | 100 psig (689.5 kPag): 40.9
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 10.7 | 20 In. Hg.: 10.7 | 30 In. Hg.: 10.7
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.05 | 20 In. Hg. (508 Mm. Hg.): 5.05 | 30 In. Hg. (762 Mm. Hg.): 5.05
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 8.01 | 10 In. Hg.: 10.1
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 3.78 | 10 In. Hg. (254 Mm. Hg.): 4.77
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.022 | 2 psig: 0.031 | 3 psig: 0.038 | 4 psig: 0.044 | 5 psig: 0.049 | 6 psig: 0.054 | 7 psig: 0.058 | 8 psig: 0.062 | 9 psig: 0.066 | 10 psig: 0.070 | 15 psig: 0.085 | 20 psig: 0.098 | 30 psig: 0.120 | 40 psig: 0.139 | 50 psig: 0.156 | 60 psig: 0.170 | 70 psig: 0.184 | 80 psig: 0.197 | 90 psig: 0.209 | 100 psig: 0.220
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.083 | 2 psig (13.8 kPag): 0.118 | 3 psig (20.7 kPag): 0.144 | 4 psig (27.6 kPag): 0.167 | 5 psig (34.5 kPag): 0.186 | 6 psig (41.4 kPag): 0.186 | 7 psig (48.3 kPag): 0.220 | 8 psig (55.2 kPag): 0.236 | 9 psig (62.1 kPag): 0.250 | 10 psig (69 kPag): 0.263 | 15 psig (103.4 kPag): 0.323 | 20 psig (137.9 kPag): 0.372 | 30 psig (206.9 kPag): 0.456 | 40 psig (275.8 kPag): 0.527 | 50 psig (344.8 kPag): 0.589 | 60 psig (413.7 kPag): 0.645 | 70 psig (482.7 kPag): 0.697 | 80 psig (551.6 kPag): 0.745 | 90 psig (620.6 kPag): 0.790 | 100 psig (689.5 kPag): 0.833
Specifications Connection A
10-32 UNF Female
Specifications Connection B
10-32 UNF Female
Specifications Cv
0.022
Specifications Material
Brass
Specifications Maximum Operating Pressure
100 psig
Specifications Nominal Orifice Size
31
Specifications Screened
Screened
