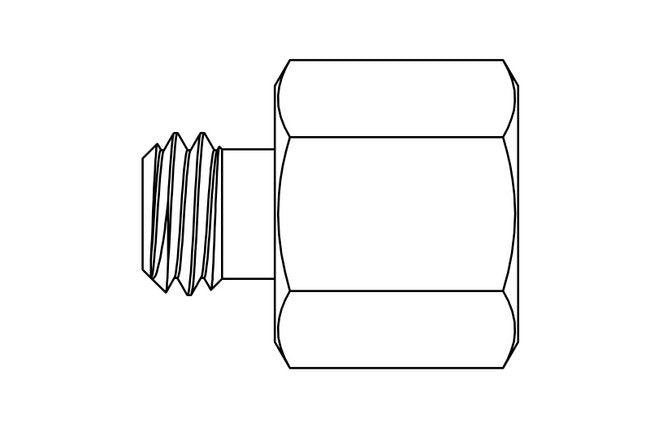

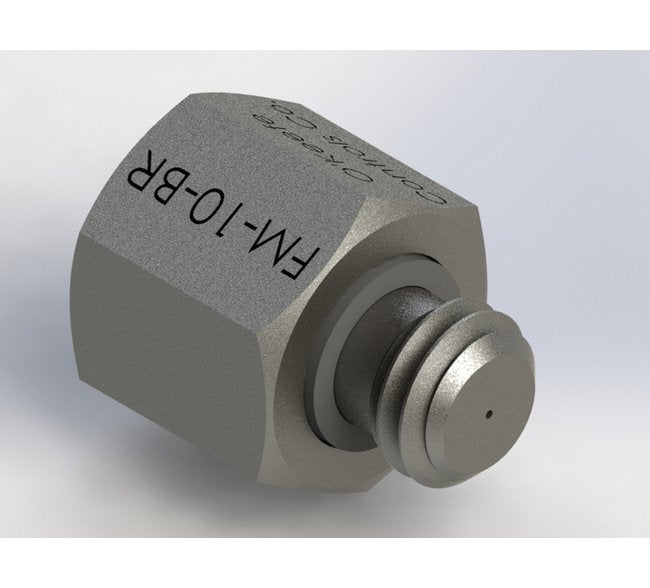

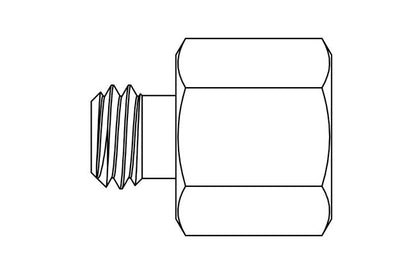

Precision Metal Orifices Adapter 10-32 UNF
Precision Metal Orifices Adapter 10-32 UNF
SKU:PRE-3c12d2
Experience precision flow control with our Precision Metal Orifices Adapter 10-32 UNF - perfect for gases or liquids.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision Metal Orifices Adapter 10-32 UNF
$39.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices Adapter 10-32 UNF
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

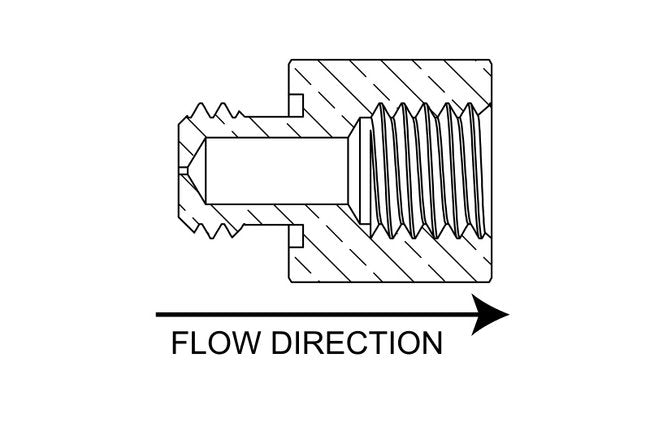

The Precision Metal Orifices Adapter 10-32 UNF is meticulously machined to exacting standards, offering precise flow control for gases or liquids. With an orifice diameter of 0.052 inches and a maximum operating pressure of 100 psig, this 303 SS adapter ensures accuracy in various applications. Whether it's for speed controls in cylinders, accurate timing in pneumatic or hydraulic circuits, or flow restriction needs, this adapter delivers consistent performance. Custom sizes are also available upon request, catering to specific requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Precision Flow Control - Gases or Liquids Speed Controls - Cylinders and Actuators Accurate Timing in Pneumatic or Hydraulic Circuits Flow Restriction Accurate Throttling Snubbers - Gages and Instruments
Dimensions Orifice Diameter
0.052 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
0.440 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 17.00 | 5 psig: 37.3 | 10 psig: 51.9 | 15 psig: 62.9 | 20 psig: 74.2 | 25 psig: 85.4 | 30 psig: 96.6 | 40 psig: 119 | 50 psig: 142 | 60 psig: 165 | 70 psig: 187 | 80 psig: 210 | 90 psig: 231 | 100 psig: 254
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 8.04 | 5 psig (34.5 kPag): 17.6 | 10 psig (69.0 kPag): 24.5 | 15 psig (103.4 kPag): 29.7 | 20 psig (137.9 kPag): 35 | 25 psig (172.4 kPag): 40.3 | 30 psig (206.9 kPag): 45.6 | 40 psig (275.8 kPag): 56.3 | 50 psig (344.8 kPag): 66.9 | 60 psig (413.7 kPag): 77.7 | 70 psig (482.7 kPag): 88.4 | 80 psig (551.6 kPag): 99.1 | 90 psig (620.6 kPag): 109 | 100 psig (689.5 kPag): 120
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 30.5 | 20 In. Hg.: 30.5 | 30 In. Hg.: 30.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 14.4 | 20 In. Hg. (508 Mm. Hg.): 14.4 | 30 In. Hg. (762 Mm. Hg.): 14.4
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 23.9 | 10 In. Hg.: 29.4
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 11.3 | 10 In. Hg. (254 Mm. Hg.): 13.9
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.059 | 2 psig: 0.083 | 3 psig: 0.102 | 4 psig: 0.118 | 5 psig: 0.132 | 6 psig: 0.145 | 7 psig: 0.156 | 8 psig: 0.167 | 9 psig: 0.177 | 10 psig: 0.187 | 15 psig: 0.229 | 20 psig: 0.264 | 30 psig: 0.323 | 40 psig: 0.373 | 50 psig: 0.417 | 60 psig: 0.457 | 70 psig: 0.494 | 80 psig: 0.528 | 90 psig: 0.560 | 100 psig: 0.590
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.223 | 2 psig (13.8 kPag): 0.316 | 3 psig (20.7 kPag): 0.387 | 4 psig (27.6 kPag): 0.447 | 5 psig (34.5 kPag): 0.499 | 6 psig (41.4 kPag): 0.547 | 7 psig (48.3 kPag): 0.591 | 8 psig (55.2 kPag): 0.632 | 9 psig (62.1 kPag): 0.67 | 10 psig (69 kPag): 0.706 | 15 psig (103.4 kPag): 0.865 | 20 psig (137.9 kPag): 0.999 | 30 psig (206.9 kPag): 1.223 | 40 psig (275.8 kPag): 1.413 | 50 psig (344.8 kPag): 1.579 | 60 psig (413.7 kPag): 1.730 | 70 psig (482.7 kPag): 1.869 | 80 psig (551.6 kPag): 1.998 | 90 psig (620.6 kPag): 2.119 | 100 psig (689.5 kPag): 2.233
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cv
0.059
Specifications Material
303 SS
Specifications Maximum Operating Pressure
100 psig
Specifications Nominal Orifice Size
52
Specifications Screened
None
