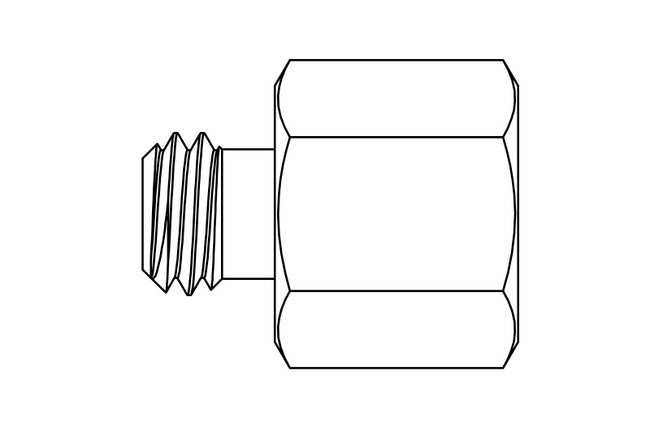

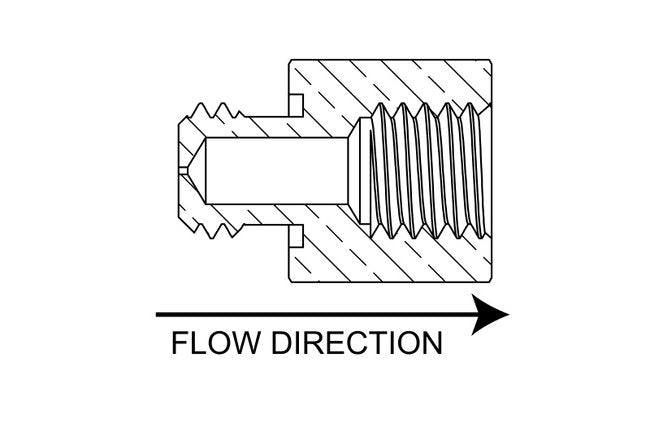

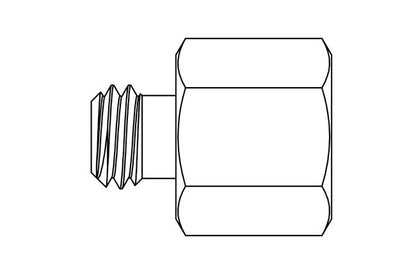

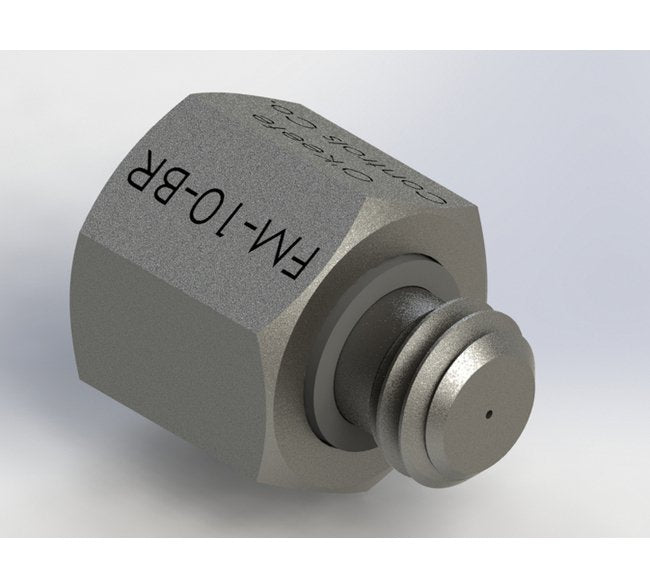

Precision Metal Orifices Adapter 10-32 UNF
Precision Metal Orifices Adapter 10-32 UNF
SKU:PRE-f86718
Achieve precise flow control with our Precision Metal Orifices Adapter 10-32 UNF. Made from 303 SS, these orifices provide accuracy and reliability in gas or liquid applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices Adapter 10-32 UNF
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices Adapter 10-32 UNF
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision in flow control with our Precision Metal Orifices Adapter 10-32 UNF. Made from 303 SS, these orifices ensure accuracy with an orifice diameter of 0.043 inches and a tolerance of ±0.0005 inches. Ideal for gases or liquids, these orifices provide reliable performance in various applications, meeting institutional standards for flow control and accuracy. Customize your order for special sizes as needed.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Precision Flow Control - Gases or Liquids Speed Controls - Cylinders and Actuators Accurate Timing in Pneumatic or Hydraulic Circuits Flow Restriction Accurate Throttling Snubbers - Gages and Instruments
Dimensions Orifice Diameter
0.043 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
0.440 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 11.40 | 5 psig: 25.6 | 10 psig: 35.6 | 15 psig: 43.2 | 20 psig: 50.9 | 25 psig: 58.5 | 30 psig: 66.3 | 40 psig: 82.0 | 50 psig: 97.5 | 60 psig: 113 | 70 psig: 129 | 80 psig: 145 | 90 psig: 161 | 100 psig: 177
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 5.36 | 5 psig (34.5 kPag): 12.1 | 10 psig (69.0 kPag): 16.8 | 15 psig (103.4 kPag): 20.4 | 20 psig (137.9 kPag): 24 | 25 psig (172.4 kPag): 27.6 | 30 psig (206.9 kPag): 31.3 | 40 psig (275.8 kPag): 38.7 | 50 psig (344.8 kPag): 46 | 60 psig (413.7 kPag): 53.5 | 70 psig (482.7 kPag): 61 | 80 psig (551.6 kPag): 68.5 | 90 psig (620.6 kPag): 76 | 100 psig (689.5 kPag): 83.5
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 21.1 | 20 In. Hg.: 21.1 | 30 In. Hg.: 21.1
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 10 | 20 In. Hg. (508 Mm. Hg.): 10 | 30 In. Hg. (762 Mm. Hg.): 10
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 16.3 | 10 In. Hg.: 20.3
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 7.67 | 10 In. Hg. (254 Mm. Hg.): 9.58
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.041 | 2 psig: 0.058 | 3 psig: 0.071 | 4 psig: 0.082 | 5 psig: 0.092 | 6 psig: 0.100 | 7 psig: 0.108 | 8 psig: 0.116 | 9 psig: 0.123 | 10 psig: 0.130 | 15 psig: 0.159 | 20 psig: 0.183 | 30 psig: 0.225 | 40 psig: 0.259 | 50 psig: 0.290 | 60 psig: 0.318 | 70 psig: 0.343 | 80 psig: 0.367 | 90 psig: 0.389 | 100 psig: 0.410
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.155 | 2 psig (13.8 kPag): 0.219 | 3 psig (20.7 kPag): 0.269 | 4 psig (27.6 kPag): 0.310 | 5 psig (34.5 kPag): 0.347 | 6 psig (41.4 kPag): 0.38 | 7 psig (48.3 kPag): 0.411 | 8 psig (55.2 kPag): 0.439 | 9 psig (62.1 kPag): 0.466 | 10 psig (69 kPag): 0.491 | 15 psig (103.4 kPag): 0.601 | 20 psig (137.9 kPag): 0.694 | 30 psig (206.9 kPag): 0.850 | 40 psig (275.8 kPag): 0.982 | 50 psig (344.8 kPag): 1.097 | 60 psig (413.7 kPag): 1.202 | 70 psig (482.7 kPag): 1.299 | 80 psig (551.6 kPag): 1.388 | 90 psig (620.6 kPag): 1.472 | 100 psig (689.5 kPag): 1.552
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cv
0.041
Specifications Material
303 SS
Specifications Maximum Operating Pressure
100 psig
Specifications Nominal Orifice Size
43
Specifications Screened
None
