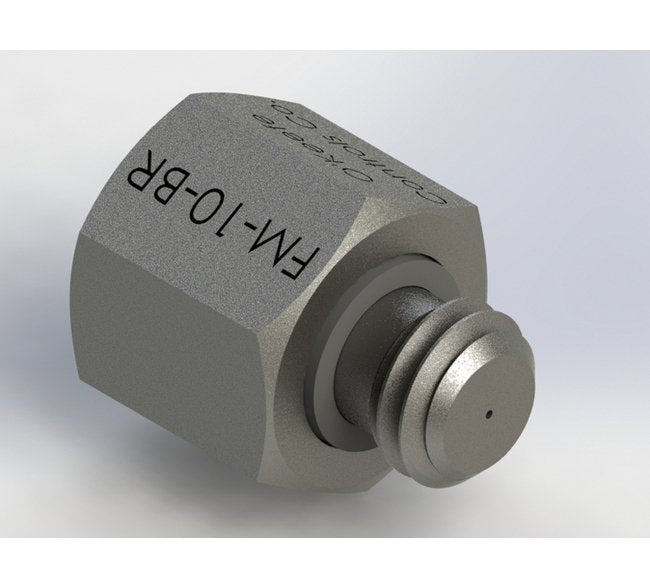

Precision Metal Orifices Adapter - 10-32 UNF Connection
Precision Metal Orifices Adapter - 10-32 UNF Connection
SKU:PRE-b31cba
Achieve precise flow control with our 10-32 UNF Precision Metal Orifices Adapter - ideal for gases, liquids, and pneumatic systems.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Precision Metal Orifices Adapter - 10-32 UNF Connection
$34.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices Adapter - 10-32 UNF Connection
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

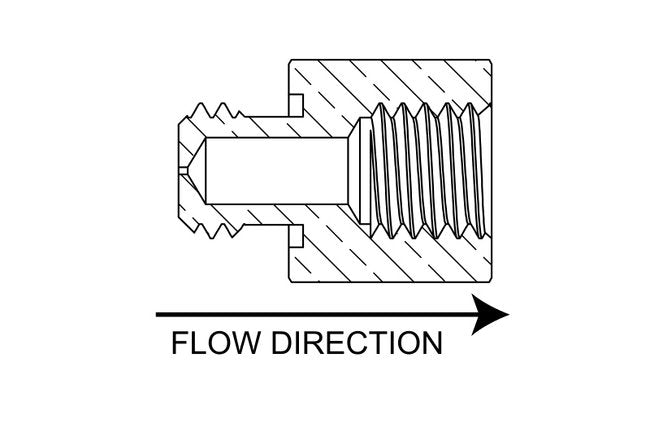

The Precision Metal Orifices Adapter in 10-32 UNF Connection is meticulously machined from 303 SS, ensuring precise flow control with an orifice diameter of 0.037 inches and an accuracy of ±0.0005 inches. With a CV of 0.031 and a maximum operating pressure of 100 psig, it caters to various applications including gases or liquids, speed controls, accurate timing in pneumatic/hydraulic circuits, and more. Tested for quality and performance, this adapter offers reliable flow rates and durability, making it an excellent choice for institutional and government procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Precision Flow Control - Gases or Liquids Speed Controls - Cylinders and Actuators Accurate Timing in Pneumatic or Hydraulic Circuits Flow Restriction Accurate Throttling Snubbers - Gages and Instruments
Dimensions Orifice Diameter
0.037 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
0.440 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 8.12 | 5 psig: 18.0 | 10 psig: 25.0 | 15 psig: 30.7 | 20 psig: 36.0 | 25 psig: 41.5 | 30 psig: 47.0 | 40 psig: 58.1 | 50 psig: 69.1 | 60 psig: 80.5 | 70 psig: 91.7 | 80 psig: 103 | 90 psig: 115 | 100 psig: 126
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.83 | 5 psig (34.5 kPag): 8.48 | 10 psig (69.0 kPag): 11.8 | 15 psig (103.4 kPag): 14.5 | 20 psig (137.9 kPag): 17 | 25 psig (172.4 kPag): 19.6 | 30 psig (206.9 kPag): 22.2 | 40 psig (275.8 kPag): 27.4 | 50 psig (344.8 kPag): 32.6 | 60 psig (413.7 kPag): 38 | 70 psig (482.7 kPag): 43.3 | 80 psig (551.6 kPag): 48.7 | 90 psig (620.6 kPag): 54.2 | 100 psig (689.5 kPag): 59.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 15.2 | 20 In. Hg.: 15.2 | 30 In. Hg.: 15.2
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 7.17 | 20 In. Hg. (508 Mm. Hg.): 7.17 | 30 In. Hg. (762 Mm. Hg.): 7.17
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 11.4 | 10 In. Hg.: 14.4
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 5.4 | 10 In. Hg. (254 Mm. Hg.): 6.78
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.031 | 2 psig: 0.044 | 3 psig: 0.054 | 4 psig: 0.062 | 5 psig: 0.069 | 6 psig: 0.076 | 7 psig: 0.082 | 8 psig: 0.088 | 9 psig: 0.093 | 10 psig: 0.098 | 15 psig: 0.120 | 20 psig: 0.139 | 30 psig: 0.170 | 40 psig: 0.196 | 50 psig: 0.219 | 60 psig: 0.240 | 70 psig: 0.259 | 80 psig: 0.277 | 90 psig: 0.294 | 100 psig: 0.310
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.117 | 2 psig (13.8 kPag): 0.166 | 3 psig (20.7 kPag): 0.203 | 4 psig (27.6 kPag): 0.235 | 5 psig (34.5 kPag): 0.262 | 6 psig (41.4 kPag): 0.287 | 7 psig (48.3 kPag): 0.310 | 8 psig (55.2 kPag): 0.332 | 9 psig (62.1 kPag): 0.352 | 10 psig (69 kPag): 0.371 | 15 psig (103.4 kPag): 0.454 | 20 psig (137.9 kPag): 0.525 | 30 psig (206.9 kPag): 0.643 | 40 psig (275.8 kPag): 0.742 | 50 psig (344.8 kPag): 0.83 | 60 psig (413.7 kPag): 0.909 | 70 psig (482.7 kPag): 0.982 | 80 psig (551.6 kPag): 1.050 | 90 psig (620.6 kPag): 1.113 | 100 psig (689.5 kPag): 1.173
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cv
0.031
Specifications Material
303 SS
Specifications Maximum Operating Pressure
100 psig
Specifications Nominal Orifice Size
37
Specifications Screened
None
