Precision Metal Orifices - Brass Push-On Tube Adapters
Precision Metal Orifices - Brass Push-On Tube Adapters
SKU:PRE-2b8450
Enhance industrial systems with precision brass push-on tube adapters for reliable performance and easy installation.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices - Brass Push-On Tube Adapters
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Brass Push-On Tube Adapters
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

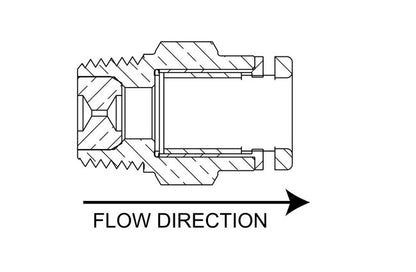

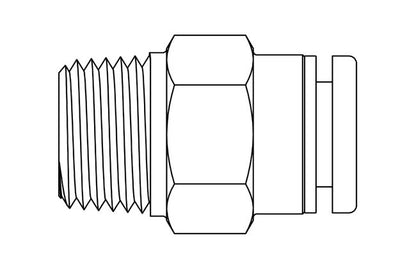

Upgrade your industrial systems with these Precision Metal Orifices - Brass Push-On Tube Adapters. Made of high-quality brass and Buna-N seal material, these adapters ensure reliable performance with a maximum operating pressure of 140 psig. The 1/8" NPT Male connection guarantees a secure fit, while the 1/4" OD Tube Push-Lock connection simplifies installation. With precise flow data and dimensions, these adapters are ideal for various applications, meeting stringent industrial standards.
Product Specifications
Dimensions Orifice Diameter
0.041 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 9.90 | 5 psig: 22.5 | 10 psig: 31.4 | 15 psig: 38.6 | 20 psig: 45.3 | 25 psig: 52.3 | 30 psig: 59.3 | 40 psig: 73.3 | 50 psig: 87.5 | 60 psig: 102 | 70 psig: 117 | 80 psig: 131 | 90 psig: 146 | 100 psig: 164
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.67 | 5 psig (34.5 kPag): 10.6 | 10 psig (69.0 kPag): 14.8 | 15 psig (103.4 kPag): 18.2 | 20 psig (137.9 kPag): 21.4 | 25 psig (172.4 kPag): 24.7 | 30 psig (206.9 kPag): 28 | 40 psig (275.8 kPag): 34.6 | 50 psig (344.8 kPag): 41.3 | 60 psig (413.7 kPag): 48.1 | 70 psig (482.7 kPag): 55 | 80 psig (551.6 kPag): 61.9 | 90 psig (620.6 kPag): 68.9 | 100 psig (689.5 kPag): 77.3
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 18.8 | 20 In. Hg.: 18.8 | 30 In. Hg.: 18.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 8.87 | 20 In. Hg. (508 Mm. Hg.): 8.87 | 30 In. Hg. (762 Mm. Hg.): 8.87
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 14.5 | 10 In. Hg.: 18.0
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 6.82 | 10 In. Hg. (254 Mm. Hg.): 8.5
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.038 | 2 psig: 0.054 | 3 psig: 0.066 | 4 psig: 0.076 | 5 psig: 0.085 | 6 psig: 0.093 | 7 psig: 0.101 | 8 psig: 0.107 | 9 psig: 0.114 | 10 psig: 0.120 | 15 psig: 0.147 | 20 psig: 0.170 | 30 psig: 0.208 | 40 psig: 0.240 | 50 psig: 0.269 | 60 psig: 0.294 | 70 psig: 0.318 | 80 psig: 0.340 | 90 psig: 0.360 | 100 psig: 0.380
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.144 | 2 psig (13.8 kPag): 0.203 | 3 psig (20.7 kPag): 0.249 | 4 psig (27.6 kPag): 0.288 | 5 psig (34.5 kPag): 0.322 | 6 psig (41.4 kPag): 0.352 | 7 psig (48.3 kPag): 0.381 | 8 psig (55.2 kPag): 0.407 | 9 psig (62.1 kPag): 0.432 | 10 psig (69 kPag): 0.455 | 15 psig (103.4 kPag): 0.557 | 20 psig (137.9 kPag): 0.643 | 30 psig (206.9 kPag): 0.788 | 40 psig (275.8 kPag): 0.910 | 50 psig (344.8 kPag): 1.017 | 60 psig (413.7 kPag): 1.114 | 70 psig (482.7 kPag): 1.203 | 80 psig (551.6 kPag): 1.287 | 90 psig (620.6 kPag): 1.365 | 100 psig (689.5 kPag): 1.438
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.038
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
41
Specifications Screened
None
Specifications Seal Material
Buna-N
