Precision Metal Orifices - Brass Push-On Tube Adapters
Precision Metal Orifices - Brass Push-On Tube Adapters
SKU:PRE-19f2e8
Durable brass Precision Metal Orifices for efficient fluid control in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices - Brass Push-On Tube Adapters
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Brass Push-On Tube Adapters
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

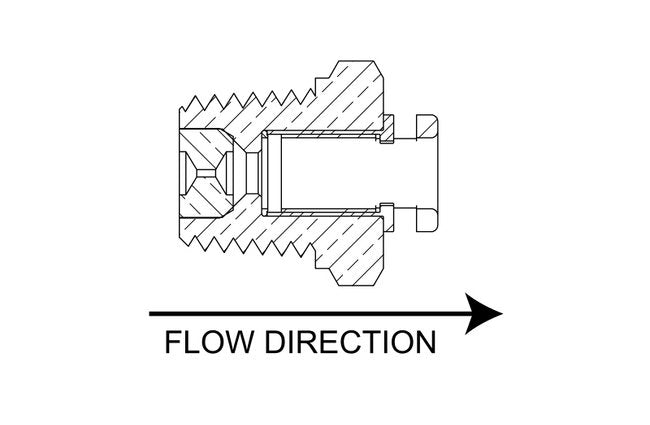

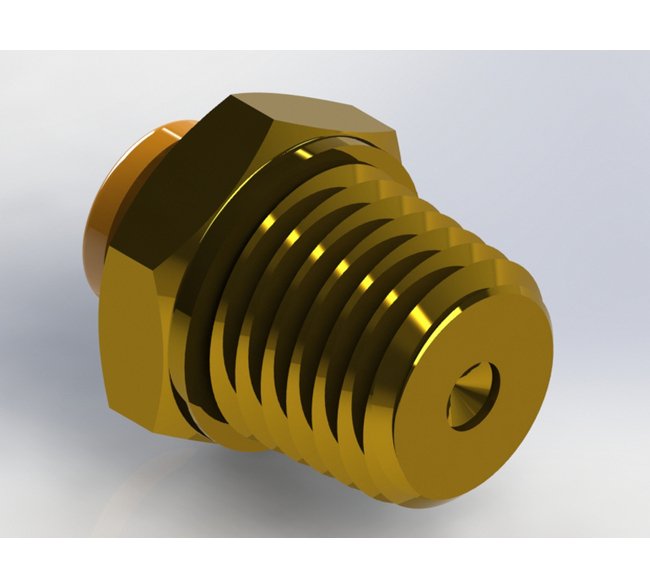

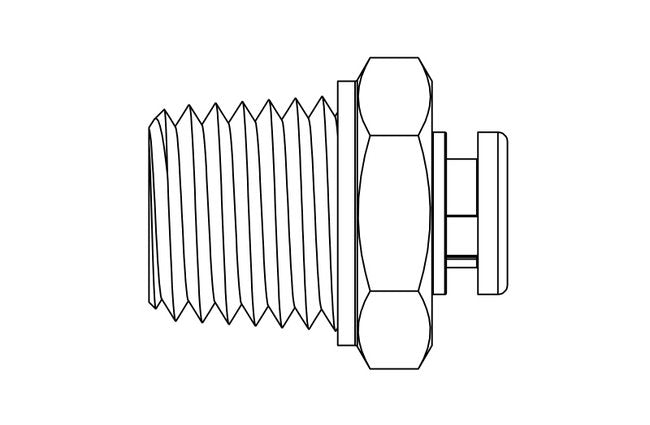

Enhance your fluid control systems with these high-quality Precision Metal Orifices. Made of durable brass and Buna-N seal material, these adapters ensure reliable performance. With a maximum operating pressure of 140 psig and precise orifice size of 0.043 inches, they provide consistent air and water flow. Ideal for industrial applications requiring precision and efficiency, these adapters meet stringent procurement standards.
Product Specifications
Dimensions Orifice Diameter
0.043 in
Dimensions Total Length
0.830 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 11.40 | 5 psig: 25.6 | 10 psig: 35.6 | 15 psig: 43.2 | 20 psig: 50.9 | 25 psig: 58.5 | 30 psig: 66.3 | 40 psig: 82.0 | 50 psig: 97.5 | 60 psig: 113 | 70 psig: 129 | 80 psig: 145 | 90 psig: 161 | 100 psig: 177
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 5.36 | 5 psig (34.5 kPag): 12.1 | 10 psig (69.0 kPag): 16.8 | 15 psig (103.4 kPag): 20.4 | 20 psig (137.9 kPag): 24 | 25 psig (172.4 kPag): 27.6 | 30 psig (206.9 kPag): 31.3 | 40 psig (275.8 kPag): 38.7 | 50 psig (344.8 kPag): 46 | 60 psig (413.7 kPag): 53.5 | 70 psig (482.7 kPag): 61 | 80 psig (551.6 kPag): 68.5 | 90 psig (620.6 kPag): 76 | 100 psig (689.5 kPag): 83.5
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 21.1 | 20 In. Hg.: 21.1 | 30 In. Hg.: 21.1
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 10 | 20 In. Hg. (508 Mm. Hg.): 10 | 30 In. Hg. (762 Mm. Hg.): 10
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 16.3 | 10 In. Hg.: 20.3
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 7.67 | 10 In. Hg. (254 Mm. Hg.): 9.58
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.041 | 2 psig: 0.058 | 3 psig: 0.071 | 4 psig: 0.082 | 5 psig: 0.092 | 6 psig: 0.100 | 7 psig: 0.108 | 8 psig: 0.116 | 9 psig: 0.123 | 10 psig: 0.130 | 15 psig: 0.159 | 20 psig: 0.183 | 30 psig: 0.225 | 40 psig: 0.259 | 50 psig: 0.290 | 60 psig: 0.318 | 70 psig: 0.343 | 80 psig: 0.367 | 90 psig: 0.389 | 100 psig: 0.410
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.155 | 2 psig (13.8 kPag): 0.219 | 3 psig (20.7 kPag): 0.269 | 4 psig (27.6 kPag): 0.310 | 5 psig (34.5 kPag): 0.347 | 6 psig (41.4 kPag): 0.38 | 7 psig (48.3 kPag): 0.411 | 8 psig (55.2 kPag): 0.439 | 9 psig (62.1 kPag): 0.466 | 10 psig (69 kPag): 0.491 | 15 psig (103.4 kPag): 0.601 | 20 psig (137.9 kPag): 0.694 | 30 psig (206.9 kPag): 0.850 | 40 psig (275.8 kPag): 0.982 | 50 psig (344.8 kPag): 1.097 | 60 psig (413.7 kPag): 1.202 | 70 psig (482.7 kPag): 1.299 | 80 psig (551.6 kPag): 1.388 | 90 psig (620.6 kPag): 1.472 | 100 psig (689.5 kPag): 1.552
Specifications Connection A
1/4" NPT Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.041
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
43
Specifications Screened
None
Specifications Seal Material
Buna-N
