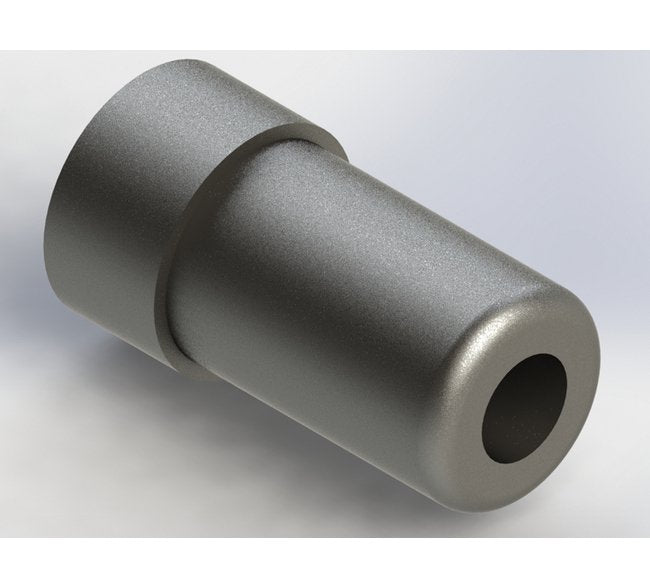

Precision Metal Orifices Insert - 0.128" OD
Precision Metal Orifices Insert - 0.128" OD
SKU:PRE-328bb9
High-precision 0.128" OD Metal Orifice Inserts for precise flow control in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices Insert - 0.128" OD
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices Insert - 0.128" OD
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices Insert with a 0.128" OD is meticulously crafted to press-fit seamlessly into accurately machined fittings, manifolds, and custom parts. Made from high-grade 303 SS, this insert ensures precise flow rate control for liquids and gases, meeting the demanding requirements of industrial applications. With dimensions crafted to perfection and a CV of 0.0096, this insert guarantees reliable performance under pressures up to 4000 psig. Equip your systems with this precision insert for unparalleled accuracy and durability.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.129 in
Dimensions Minimum Outside Diameter
0.128 in
Dimensions Orifice Diameter
0.021 in | 0.53 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.126 to 0.127 in
Dimensions Shank Length
0.196 in
Dimensions Total Length
0.276 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.39 | 5 psig: 5.62 | 10 psig: 7.48 | 15 psig: 9.34 | 20 psig: 11.1 | 25 psig: 12.7 | 30 psig: 14.4 | 40 psig: 17.8 | 50 psig: 21.2 | 60 psig: 24.6 | 70 psig: 28.0 | 80 psig: 31.6 | 90 psig: 35.0 | 100 psig: 38.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.13 | 5 psig (34.5 kPag): 2.65 | 10 psig (69.0 kPag): 3.53 | 15 psig (103.4 kPag): 4.41 | 20 psig (137.9 kPag): 5.22 | 25 psig (172.4 kPag): 6.01 | 30 psig (206.9 kPag): 6.81 | 40 psig (275.8 kPag): 8.42 | 50 psig (344.8 kPag): 10.0 | 60 psig (413.7 kPag): 11.6 | 70 psig (482.7 kPag): 13.2 | 80 psig (551.6 kPag): 14.9 | 90 psig (620.6 kPag): 16.5 | 100 psig (689.5 kPag): 18.0
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.92 | 20 In. Hg.: 4.92 | 30 In. Hg.: 4.92
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.32 | 20 In. Hg. (508 Mm. Hg.): 2.32 | 30 In. Hg. (762 Mm. Hg.): 2.32
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 3.6 | 10 In. Hg.: 4.62
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.70 | 10 In. Hg. (254 Mm. Hg.): 2.18
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.010 | 2 psig: 0.014 | 3 psig: 0.017 | 4 psig: 0.019 | 5 psig: 0.021 | 6 psig: 0.024 | 7 psig: 0.025 | 8 psig: 0.027 | 9 psig: 0.029 | 10 psig: 0.030 | 15 psig: 0.037 | 20 psig: 0.043 | 30 psig: 0.053 | 40 psig: 0.061 | 50 psig: 0.068 | 60 psig: 0.074 | 70 psig: 0.080 | 80 psig: 0.086 | 90 psig: 0.091 | 100 psig: 0.096
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.036 | 2 psig (13.8 kPag): 0.051 | 3 psig (20.7 kPag): 0.063 | 4 psig (27.6 kPag): 0.073 | 5 psig (34.5 kPag): 0.081 | 6 psig (41.4 kPag): 0.081 | 7 psig (48.3 kPag): 0.096 | 8 psig (55.2 kPag): 0.103 | 9 psig (62.1 kPag): 0.109 | 10 psig (69 kPag): 0.115 | 15 psig (103.4 kPag): 0.141 | 20 psig (137.9 kPag): 0.163 | 30 psig (206.9 kPag): 0.199 | 40 psig (275.8 kPag): 0.230 | 50 psig (344.8 kPag): 0.257 | 60 psig (413.7 kPag): 0.281 | 70 psig (482.7 kPag): 0.304 | 80 psig (551.6 kPag): 0.325 | 90 psig (620.6 kPag): 0.345 | 100 psig (689.5 kPag): 0.363
Specifications Connection A
.128" Press-Fit Insert
Specifications Cv
0.0096
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
21
Specifications Screened
None
