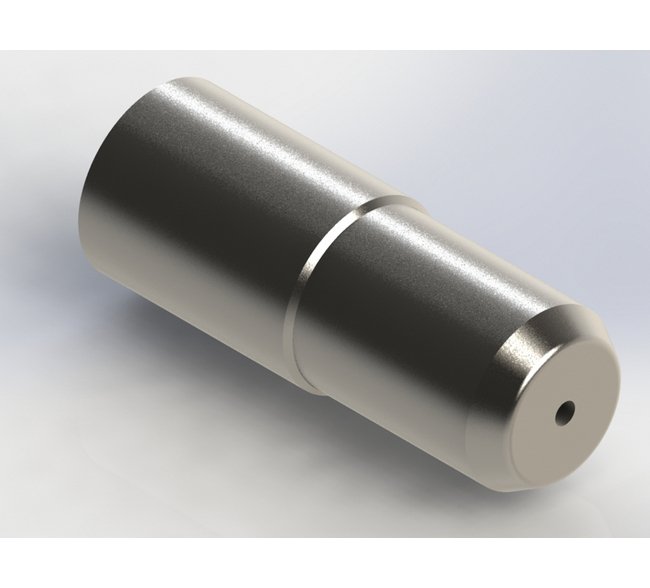

The Precision Metal Orifices Press-Fit Inserts in 0.094" OD are meticulously designed for precise press-fitting into fittings, manifolds, and custom parts, ensuring accurate flow rate control for liquids and gases. Crafted from high-grade 303 SS material, these inserts offer exceptional durability and performance. With a maximum operating pressure of 4000 psig and a CV of 0.00035, these inserts meet stringent industry standards for reliability and functionality. Ideal for institutional and government procurement needs.
Product Specifications
Application 0

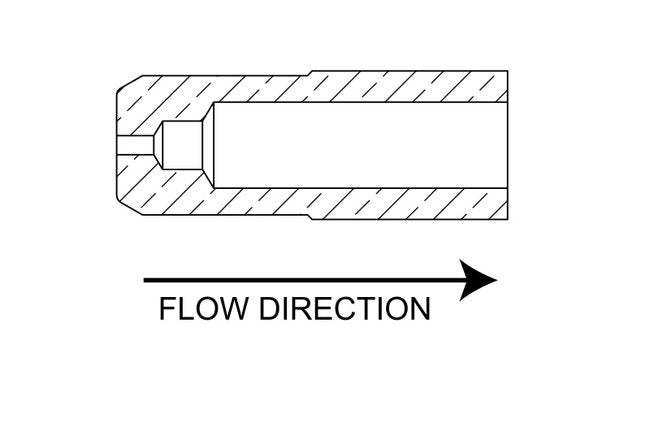

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

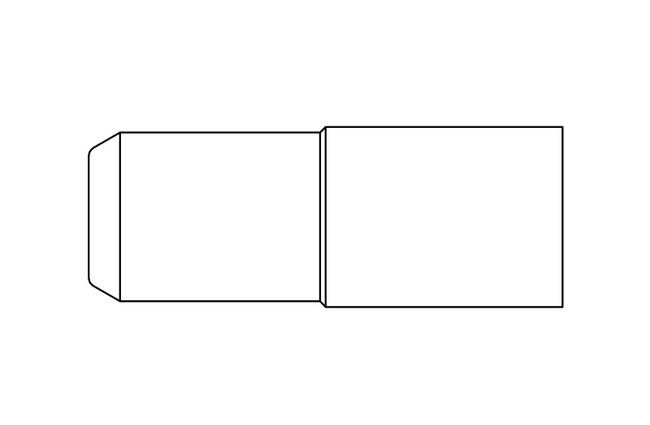

Dimensions Maximum Outside Diameter
0.0950 in
Dimensions Minimum Outside Diameter
0.0945 in
Dimensions Orifice Diameter
0.0039 in | 0.1 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0930 to 0.0940 in
Dimensions Shank Length
0.125 in
Dimensions Total Length
0.25 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.075 | 5 psig: 0.18 | 10 psig: 0.25 | 15 psig: 0.30 | 20 psig: 0.40 | 25 psig: 0.47 | 30 psig: 0.53 | 40 psig: 0.64 | 50 psig: 0.76 | 60 psig: 0.89 | 70 psig: 1.02 | 80 psig: 1.14 | 90 psig: 1.27 | 100 psig: 1.40
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.035 | 5 psig (34.5 kPag): 0.09 | 10 psig (69.0 kPag): 0.12 | 15 psig (103.4 kPag): 0.16 | 20 psig (137.9 kPag): 0.19 | 25 psig (172.4 kPag): 0.22 | 30 psig (206.9 kPag): 0.25 | 40 psig (275.8 kPag): 0.30 | 50 psig (344.8 kPag): 0.36 | 60 psig (413.7 kPag): 0.42 | 70 psig (482.7 kPag): 0.48 | 80 psig (551.6 kPag): 0.54 | 90 psig (620.6 kPag): 0.60 | 100 psig (689.5 kPag): 0.66
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.158 | 20 In. Hg.: 0.158 | 30 In. Hg.: 0.158
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.075 | 20 In. Hg. (508 Mm. Hg.): 0.075 | 30 In. Hg. (762 Mm. Hg.): 0.075
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.113 | 10 In. Hg.: 0.145
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.053 | 10 In. Hg. (254 Mm. Hg.): 0.069
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.00035 | 2 psig: 0.00049 | 3 psig: 0.00061 | 4 psig: 0.00070 | 5 psig: 0.00078 | 6 psig: 0.00086 | 7 psig: 0.00093 | 8 psig: 0.00099 | 9 psig: 0.00105 | 10 psig: 0.00111 | 15 psig: 0.00136 | 20 psig: 0.00157 | 30 psig: 0.00192 | 40 psig: 0.00221 | 50 psig: 0.00247 | 60 psig: 0.00271 | 70 psig: 0.00293 | 80 psig: 0.00313 | 90 psig: 0.00332 | 100 psig: 0.00350
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0013 | 2 psig (13.8 kPag): 0.0019 | 3 psig (20.7 kPag): 0.0023 | 4 psig (27.6 kPag): 0.0026 | 5 psig (34.5 kPag): 0.0030 | 6 psig (41.4 kPag): 0.0030 | 7 psig (48.3 kPag): 0.0035 | 8 psig (55.2 kPag): 0.0037 | 9 psig (62.1 kPag): 0.0040 | 10 psig (69 kPag): 0.0042 | 15 psig (103.4 kPag): 0.0051 | 20 psig (137.9 kPag): 0.0059 | 30 psig (206.9 kPag): 0.0073 | 40 psig (275.8 kPag): 0.0084 | 50 psig (344.8 kPag): 0.0094 | 60 psig (413.7 kPag): 0.0103 | 70 psig (482.7 kPag): 0.0111 | 80 psig (551.6 kPag): 0.0119 | 90 psig (620.6 kPag): 0.0126 | 100 psig (689.5 kPag): 0.0132
Specifications Connection A
.0945" Press-Fit Insert
Specifications Cv
0.00035
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
4
Specifications Screened
None
