Precision Metal Orifices - JIC 37 Degree Flare Adapter
$49.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - JIC 37 Degree Flare Adapter
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

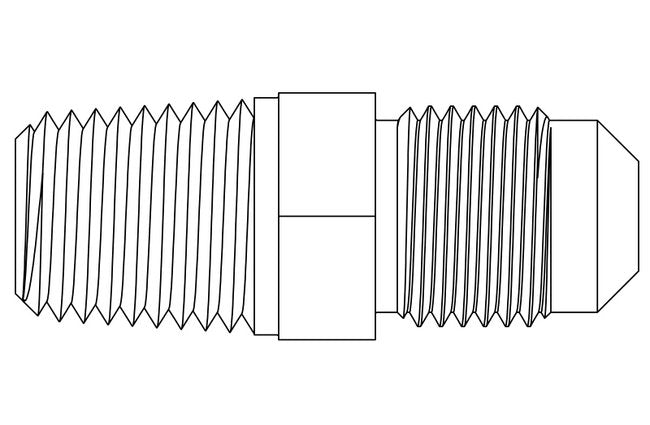

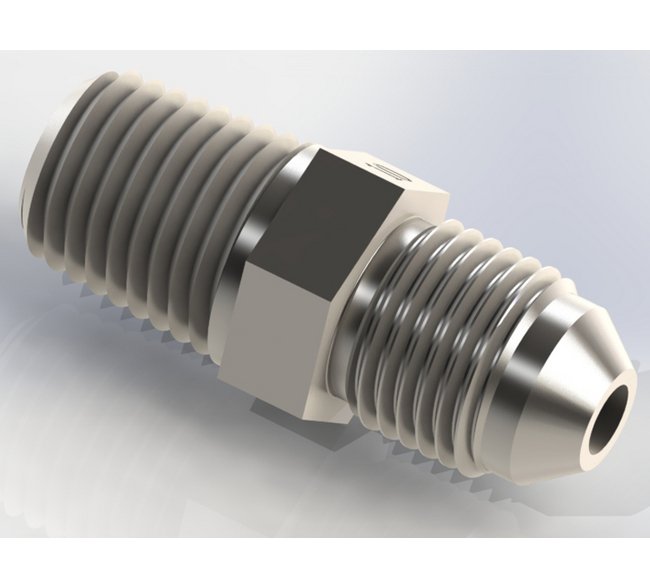

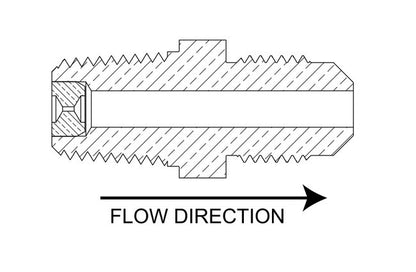

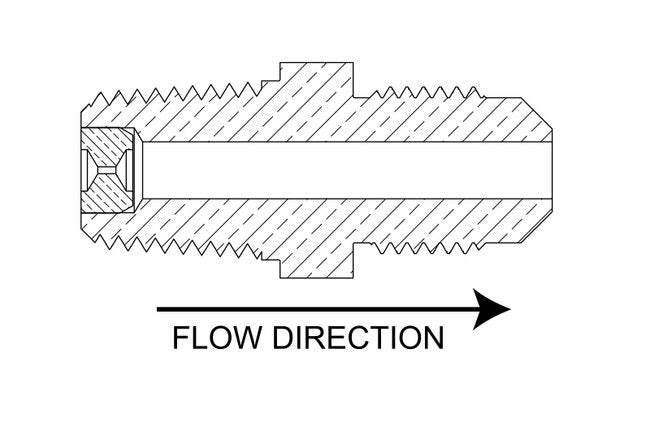

The Precision Metal Orifices - JIC 37 Degree Flare Adapter is meticulously engineered for seamless integration in process instruments and hydraulic systems. Crafted from high-grade 304 SS, this adapter boasts an orifice diameter of 0.031 in with an accuracy of ±0.0005 in, ensuring precise and repeatable flow rates up to 200 psig. Suitable for various connections including 1/4" NPT Male and SAE 37 DEG #4, it offers bi-directional flow, economical operation, and reliability in demanding industrial applications.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Orifice Diameter
0.031 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.42 in
Dimensions Width Across Flats Hex
9/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 5.62 | 5 psig: 12.4 | 10 psig: 18.3 | 15 psig: 22.5 | 20 psig: 26.3 | 25 psig: 30.1 | 30 psig: 33.7 | 40 psig: 41.1 | 50 psig: 48.5 | 60 psig: 55.9 | 70 psig: 63.6 | 80 psig: 71.2 | 90 psig: 78.8 | 100 psig: 86.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.65 | 5 psig (34.5 kPag): 5.86 | 10 psig (69.0 kPag): 8.63 | 15 psig (103.4 kPag): 10.6 | 20 psig (137.9 kPag): 12.4 | 25 psig (172.4 kPag): 14.2 | 30 psig (206.9 kPag): 15.9 | 40 psig (275.8 kPag): 19.4 | 50 psig (344.8 kPag): 22.9 | 60 psig (413.7 kPag): 26.4 | 70 psig (482.7 kPag): 30.0 | 80 psig (551.6 kPag): 33.6 | 90 psig (620.6 kPag): 37.2 | 100 psig (689.5 kPag): 40.9
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 10.7 | 20 In. Hg.: 10.7 | 30 In. Hg.: 10.7
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.05 | 20 In. Hg. (508 Mm. Hg.): 5.05 | 30 In. Hg. (762 Mm. Hg.): 5.05
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 8.01 | 10 In. Hg.: 10.1
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 3.78 | 10 In. Hg. (254 Mm. Hg.): 4.77
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.022 | 2 psig: 0.031 | 3 psig: 0.038 | 4 psig: 0.044 | 5 psig: 0.049 | 6 psig: 0.054 | 7 psig: 0.058 | 8 psig: 0.062 | 9 psig: 0.066 | 10 psig: 0.070 | 15 psig: 0.085 | 20 psig: 0.098 | 30 psig: 0.120 | 40 psig: 0.139 | 50 psig: 0.156 | 60 psig: 0.170 | 70 psig: 0.184 | 80 psig: 0.197 | 90 psig: 0.209 | 100 psig: 0.220
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.083 | 2 psig (13.8 kPag): 0.118 | 3 psig (20.7 kPag): 0.144 | 4 psig (27.6 kPag): 0.167 | 5 psig (34.5 kPag): 0.186 | 6 psig (41.4 kPag): 0.186 | 7 psig (48.3 kPag): 0.220 | 8 psig (55.2 kPag): 0.236 | 9 psig (62.1 kPag): 0.250 | 10 psig (69 kPag): 0.263 | 15 psig (103.4 kPag): 0.323 | 20 psig (137.9 kPag): 0.372 | 30 psig (206.9 kPag): 0.456 | 40 psig (275.8 kPag): 0.527 | 50 psig (344.8 kPag): 0.589 | 60 psig (413.7 kPag): 0.645 | 70 psig (482.7 kPag): 0.697 | 80 psig (551.6 kPag): 0.745 | 90 psig (620.6 kPag): 0.790 | 100 psig (689.5 kPag): 0.833
Specifications Connection A
1/4" NPT Male
Specifications Connection B
SAE 37 DEG #4; 7/16"-20 Male
Specifications Cv
0.022
Specifications Material
304 SS
Specifications Maximum Operating Pressure
200 psig
Specifications Nominal Orifice Size
31
Specifications Screened
None
