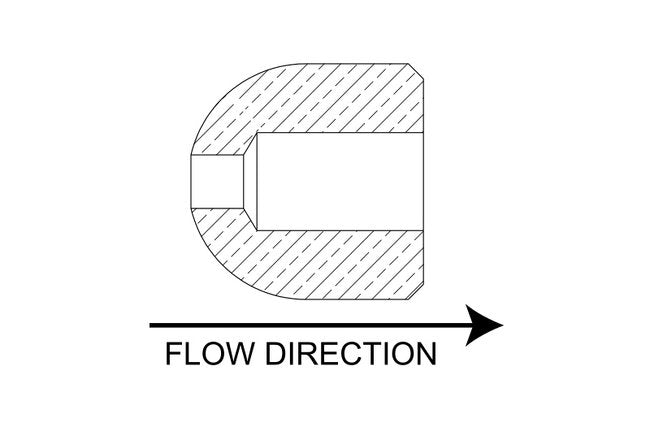

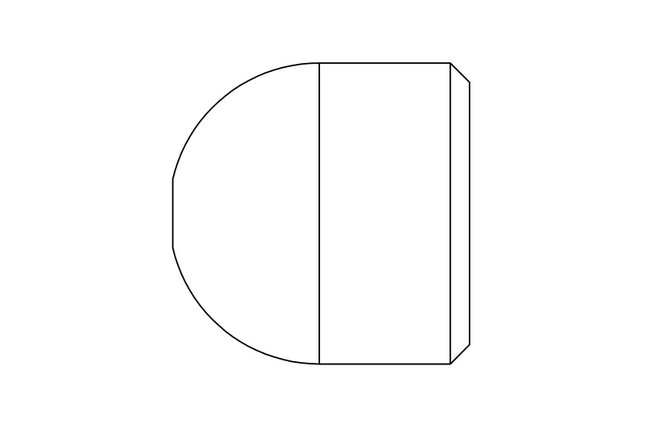

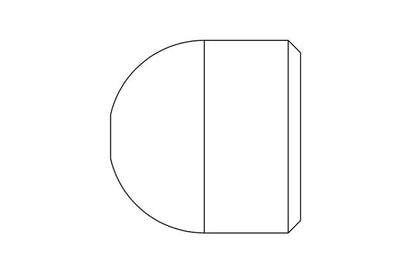

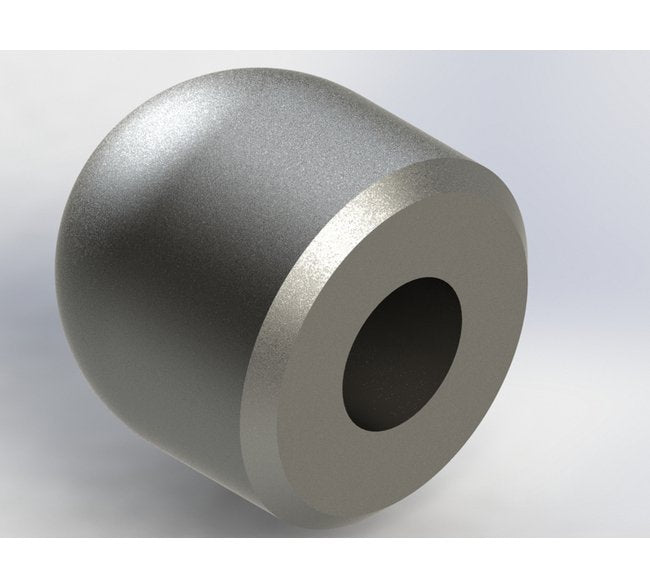

The Precision Metal Orifices - Press-Fit Inserts with a precise Orifice Diameter of 0.061" are expertly designed for accurate press-fitting into fittings, manifolds, and custom parts. Crafted from high-grade 303 SS material, these inserts ensure reliable control of liquid or gas flow rates up to 4000 psig. With exceptional accuracy (+/- 0.0005 in) and a CV of 0.008, these orifices cater to institutional requirements for exacting flow control tasks, making them ideal for custom assemblies requiring precision machining and press-fit installations.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.0625 in
Dimensions Minimum Outside Diameter
0.0615 in
Dimensions Orifice Diameter
0.019 in | 0.48 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0605 to 0.0610 in
Dimensions Total Length
0.062 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.03 | 5 psig: 4.70 | 10 psig: 6.00 | 15 psig: 7.56 | 20 psig: 9.03 | 25 psig: 10.4 | 30 psig: 11.8 | 40 psig: 14.5 | 50 psig: 17.3 | 60 psig: 20.0 | 70 psig: 22.9 | 80 psig: 25.6 | 90 psig: 28.4 | 100 psig: 31.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.96 | 5 psig (34.5 kPag): 2.22 | 10 psig (69.0 kPag): 2.83 | 15 psig (103.4 kPag): 3.57 | 20 psig (137.9 kPag): 4.26 | 25 psig (172.4 kPag): 4.91 | 30 psig (206.9 kPag): 5.56 | 40 psig (275.8 kPag): 6.85 | 50 psig (344.8 kPag): 8.15 | 60 psig (413.7 kPag): 9.46 | 70 psig (482.7 kPag): 10.8 | 80 psig (551.6 kPag): 12.1 | 90 psig (620.6 kPag): 13.4 | 100 psig (689.5 kPag): 14.7
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.11 | 20 In. Hg.: 4.11 | 30 In. Hg.: 4.11
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.94 | 20 In. Hg. (508 Mm. Hg.): 1.94 | 30 In. Hg. (762 Mm. Hg.): 1.94
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.99 | 10 In. Hg.: 3.79
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.41 | 10 In. Hg. (254 Mm. Hg.): 1.79
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0080 | 2 psig: 0.0113 | 3 psig: 0.0139 | 4 psig: 0.0160 | 5 psig: 0.0179 | 6 psig: 0.0196 | 7 psig: 0.0212 | 8 psig: 0.0226 | 9 psig: 0.0240 | 10 psig: 0.0253 | 15 psig: 0.0310 | 20 psig: 0.0358 | 30 psig: 0.0438 | 40 psig: 0.0506 | 50 psig: 0.0566 | 60 psig: 0.0620 | 70 psig: 0.0669 | 80 psig: 0.0716 | 90 psig: 0.0759 | 100 psig: 0.0800
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0303 | 2 psig (13.8 kPag): 0.0428 | 3 psig (20.7 kPag): 0.0525 | 4 psig (27.6 kPag): 0.0606 | 5 psig (34.5 kPag): 0.0677 | 6 psig (41.4 kPag): 0.0677 | 7 psig (48.3 kPag): 0.0801 | 8 psig (55.2 kPag): 0.0857 | 9 psig (62.1 kPag): 0.0908 | 10 psig (69 kPag): 0.0958 | 15 psig (103.4 kPag): 0.1173 | 20 psig (137.9 kPag): 0.1354 | 30 psig (206.9 kPag): 0.1659 | 40 psig (275.8 kPag): 0.1915 | 50 psig (344.8 kPag): 0.2141 | 60 psig (413.7 kPag): 0.2346 | 70 psig (482.7 kPag): 0.2534 | 80 psig (551.6 kPag): 0.2709 | 90 psig (620.6 kPag): 0.2873 | 100 psig (689.5 kPag): 0.3028
Specifications Connection A
.0615" Press-Fit Insert
Specifications Cv
0.008
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
19
Specifications Screened
None
