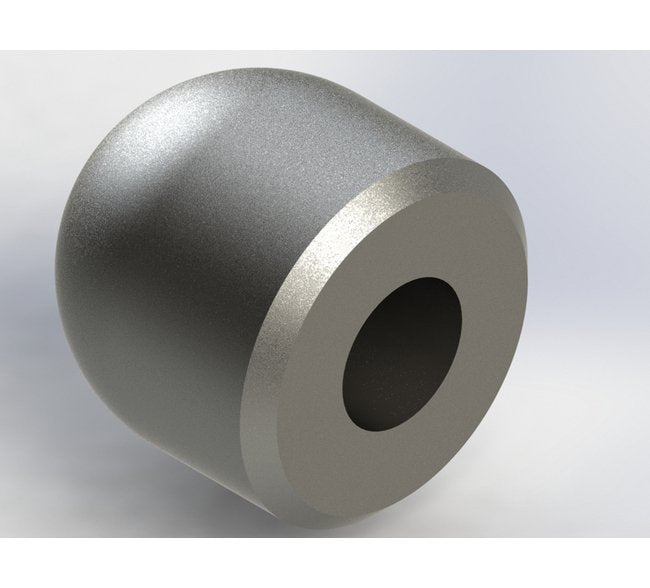

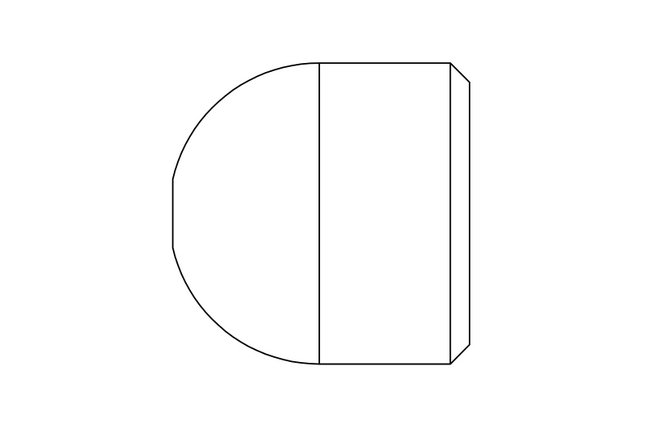

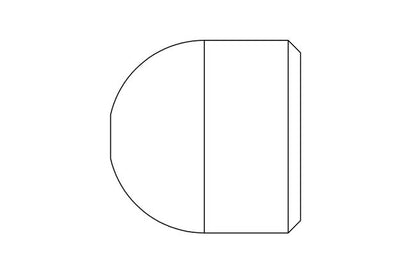

Precision Metal Orifices - Press-Fit Inserts 0.061in OD
Precision Metal Orifices - Press-Fit Inserts 0.061in OD
SKU:PRE-787ecc
Achieve precise fluid control with our durable Precision Metal Orifices. Press-fit inserts for reliable flow rate regulation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Press-Fit Inserts 0.061in OD
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts 0.061in OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

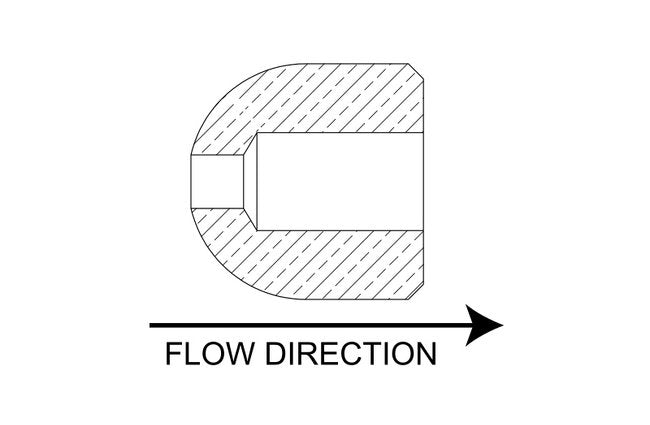

Enhance your fluid control systems with our Precision Metal Orifices - Press-Fit Inserts. Designed to seamlessly press-fit into accurately machined openings, these inserts ensure precise flow rate control for liquids or gases. Crafted from high-quality 303 SS, they offer exceptional durability and can withstand pressures of up to 4000 psig. Perfect for fittings, manifolds, and custom assemblies requiring reliable flow regulation. Upgrade your systems with confidence in performance and accuracy.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.0625 in
Dimensions Minimum Outside Diameter
0.0615 in
Dimensions Orifice Diameter
0.018 in | 0.46 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0605 to 0.0610 in
Dimensions Total Length
0.062 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.82 | 5 psig: 4.20 | 10 psig: 5.38 | 15 psig: 6.84 | 20 psig: 8.18 | 25 psig: 9.43 | 30 psig: 10.7 | 40 psig: 13.2 | 50 psig: 15.7 | 60 psig: 18.2 | 70 psig: 20.7 | 80 psig: 23.3 | 90 psig: 25.9 | 100 psig: 28.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.86 | 5 psig (34.5 kPag): 1.98 | 10 psig (69.0 kPag): 2.54 | 15 psig (103.4 kPag): 3.23 | 20 psig (137.9 kPag): 3.86 | 25 psig (172.4 kPag): 4.45 | 30 psig (206.9 kPag): 5.03 | 40 psig (275.8 kPag): 6.21 | 50 psig (344.8 kPag): 7.40 | 60 psig (413.7 kPag): 8.58 | 70 psig (482.7 kPag): 9.77 | 80 psig (551.6 kPag): 11.0 | 90 psig (620.6 kPag): 12.2 | 100 psig (689.5 kPag): 13.4
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 3.71 | 20 In. Hg.: 3.71 | 30 In. Hg.: 3.71
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.75 | 20 In. Hg. (508 Mm. Hg.): 1.75 | 30 In. Hg. (762 Mm. Hg.): 1.75
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.7 | 10 In. Hg.: 3.35
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.28 | 10 In. Hg. (254 Mm. Hg.): 1.58
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0073 | 2 psig: 0.0103 | 3 psig: 0.0126 | 4 psig: 0.0146 | 5 psig: 0.0163 | 6 psig: 0.0179 | 7 psig: 0.0193 | 8 psig: 0.0206 | 9 psig: 0.0219 | 10 psig: 0.0231 | 15 psig: 0.0283 | 20 psig: 0.0326 | 30 psig: 0.0400 | 40 psig: 0.0462 | 50 psig: 0.0516 | 60 psig: 0.0565 | 70 psig: 0.0611 | 80 psig: 0.0653 | 90 psig: 0.0693 | 100 psig: 0.0730
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0276 | 2 psig (13.8 kPag): 0.0391 | 3 psig (20.7 kPag): 0.0479 | 4 psig (27.6 kPag): 0.0553 | 5 psig (34.5 kPag): 0.0618 | 6 psig (41.4 kPag): 0.0618 | 7 psig (48.3 kPag): 0.0731 | 8 psig (55.2 kPag): 0.0782 | 9 psig (62.1 kPag): 0.0829 | 10 psig (69 kPag): 0.0874 | 15 psig (103.4 kPag): 0.1070 | 20 psig (137.9 kPag): 0.1236 | 30 psig (206.9 kPag): 0.1514 | 40 psig (275.8 kPag): 0.1748 | 50 psig (344.8 kPag): 0.1954 | 60 psig (413.7 kPag): 0.2140 | 70 psig (482.7 kPag): 0.2312 | 80 psig (551.6 kPag): 0.2472 | 90 psig (620.6 kPag): 0.2622 | 100 psig (689.5 kPag): 0.2763
Specifications Connection A
.0615" Press-Fit Insert
Specifications Cv
0.0073
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
18
Specifications Screened
None
