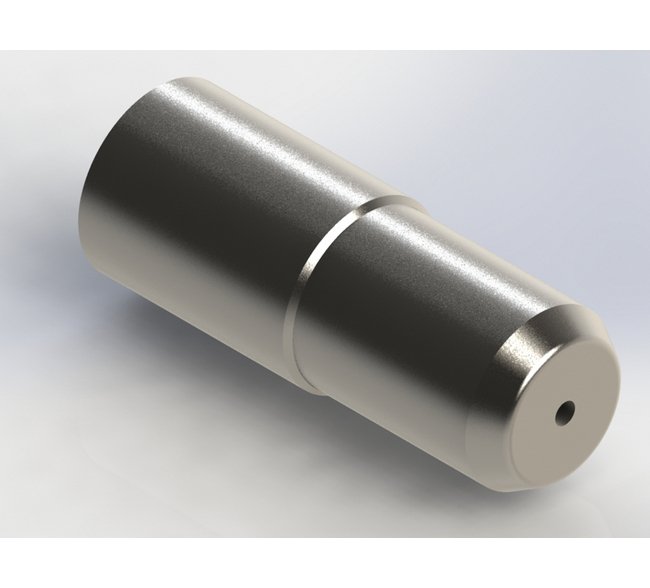

Enhance fluid control efficiency with our Precision Metal Orifices - Press-Fit Inserts. Made of high-grade 303 SS, these inserts ensure precise orifice diameter accuracy of ±0.0005 in. With a CV of 0.013 and a maximum operating pressure of 4000 psig, they provide reliable flow rate control. Ideal for fittings, manifolds, and custom parts, these orifices offer exceptional performance in managing liquid and gas flow. The inserts feature dimensions meticulously designed for seamless press-fit installation, guaranteeing optimal functionality and longevity.
Product Specifications
Application 0

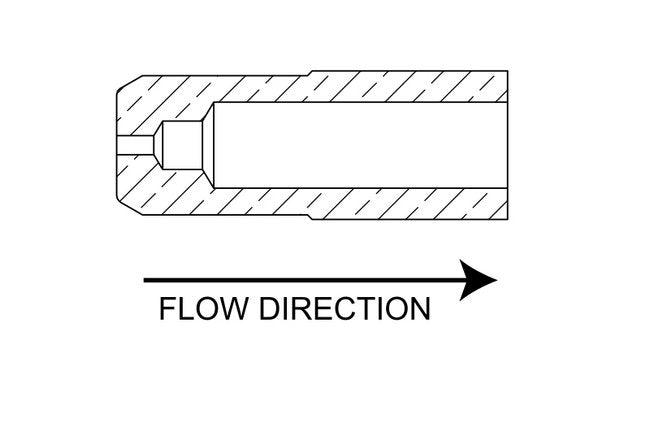

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

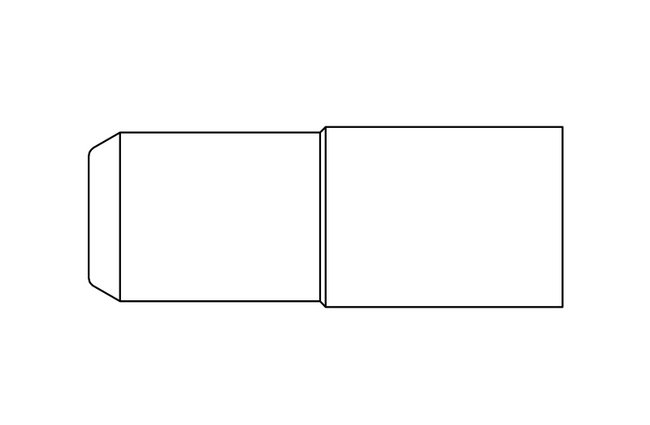

Dimensions Maximum Outside Diameter
0.0950 in
Dimensions Minimum Outside Diameter
0.0945 in
Dimensions Orifice Diameter
0.024 in | 0.61 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0930 to 0.0940 in
Dimensions Shank Length
0.125 in
Dimensions Total Length
0.25 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 3.26 | 5 psig: 7.48 | 10 psig: 11.0 | 15 psig: 13.6 | 20 psig: 16.1 | 25 psig: 18.3 | 30 psig: 20.7 | 40 psig: 25.4 | 50 psig: 30.1 | 60 psig: 34.7 | 70 psig: 39.2 | 80 psig: 43.9 | 90 psig: 48.5 | 100 psig: 53.2
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.54 | 5 psig (34.5 kPag): 3.53 | 10 psig (69.0 kPag): 5.18 | 15 psig (103.4 kPag): 6.43 | 20 psig (137.9 kPag): 7.58 | 25 psig (172.4 kPag): 8.65 | 30 psig (206.9 kPag): 9.75 | 40 psig (275.8 kPag): 12.0 | 50 psig (344.8 kPag): 14.2 | 60 psig (413.7 kPag): 16.4 | 70 psig (482.7 kPag): 18.5 | 80 psig (551.6 kPag): 20.7 | 90 psig (620.6 kPag): 22.9 | 100 psig (689.5 kPag): 25.1
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 6.61 | 20 In. Hg.: 6.61 | 30 In. Hg.: 6.61
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.12 | 20 In. Hg. (508 Mm. Hg.): 3.12 | 30 In. Hg. (762 Mm. Hg.): 3.12
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.87 | 10 In. Hg.: 6.12
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.30 | 10 In. Hg. (254 Mm. Hg.): 2.89
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.013 | 2 psig: 0.018 | 3 psig: 0.023 | 4 psig: 0.026 | 5 psig: 0.029 | 6 psig: 0.032 | 7 psig: 0.034 | 8 psig: 0.037 | 9 psig: 0.039 | 10 psig: 0.041 | 15 psig: 0.050 | 20 psig: 0.058 | 30 psig: 0.071 | 40 psig: 0.082 | 50 psig: 0.092 | 60 psig: 0.101 | 70 psig: 0.109 | 80 psig: 0.116 | 90 psig: 0.123 | 100 psig: 0.130
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.049 | 2 psig (13.8 kPag): 0.070 | 3 psig (20.7 kPag): 0.085 | 4 psig (27.6 kPag): 0.098 | 5 psig (34.5 kPag): 0.110 | 6 psig (41.4 kPag): 0.110 | 7 psig (48.3 kPag): 0.130 | 8 psig (55.2 kPag): 0.139 | 9 psig (62.1 kPag): 0.148 | 10 psig (69 kPag): 0.156 | 15 psig (103.4 kPag): 0.191 | 20 psig (137.9 kPag): 0.220 | 30 psig (206.9 kPag): 0.270 | 40 psig (275.8 kPag): 0.311 | 50 psig (344.8 kPag): 0.348 | 60 psig (413.7 kPag): 0.381 | 70 psig (482.7 kPag): 0.412 | 80 psig (551.6 kPag): 0.440 | 90 psig (620.6 kPag): 0.467 | 100 psig (689.5 kPag): 0.492
Specifications Connection A
.0945" Press-Fit Insert
Specifications Cv
0.013
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
24
Specifications Screened
None
