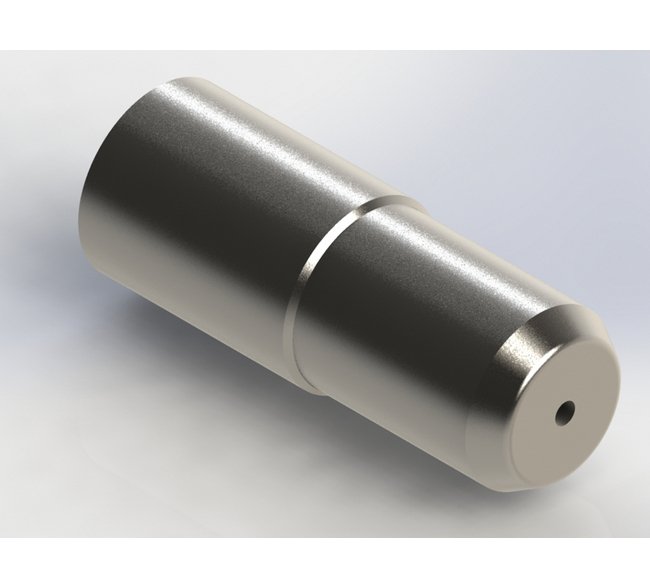

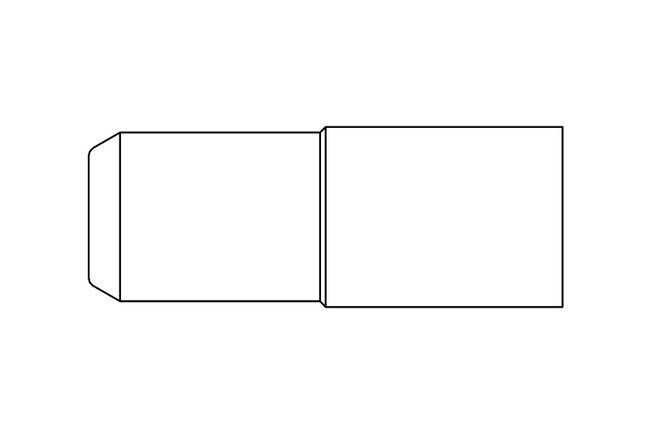

Precision Metal Orifices - Press-Fit Inserts 0.094" OD, 303 SS
Precision Metal Orifices - Press-Fit Inserts 0.094" OD, 303 SS
SKU:PRE-f7a958
Enhance fluid control precision with our Stainless Steel Orifice Inserts - Ideal for gas and liquid flow control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Press-Fit Inserts 0.094" OD, 303 SS
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts 0.094" OD, 303 SS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control systems with our Precision Metal Orifices - Press-Fit Inserts. Designed for accurate press-fitting into custom parts, manifolds, and fittings, these inserts offer control over liquids or gases. Made from high-grade 303 stainless steel, with precise dimensions and tight orifice diameter accuracy, ensuring reliable performance up to 4000 psig. Experience superior flow rate control and compatibility with various fluid types.

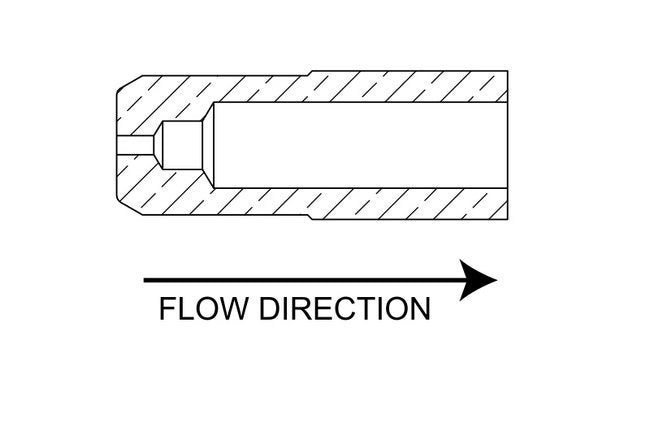

Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.0950 in
Dimensions Minimum Outside Diameter
0.0945 in
Dimensions Orifice Diameter
0.019 in | 0.48 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0930 to 0.0940 in
Dimensions Shank Length
0.125 in
Dimensions Total Length
0.25 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.03 | 5 psig: 4.70 | 10 psig: 6.00 | 15 psig: 7.56 | 20 psig: 9.03 | 25 psig: 10.4 | 30 psig: 11.8 | 40 psig: 14.5 | 50 psig: 17.3 | 60 psig: 20.0 | 70 psig: 22.9 | 80 psig: 25.6 | 90 psig: 28.4 | 100 psig: 31.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.96 | 5 psig (34.5 kPag): 2.22 | 10 psig (69.0 kPag): 2.83 | 15 psig (103.4 kPag): 3.57 | 20 psig (137.9 kPag): 4.26 | 25 psig (172.4 kPag): 4.91 | 30 psig (206.9 kPag): 5.56 | 40 psig (275.8 kPag): 6.85 | 50 psig (344.8 kPag): 8.15 | 60 psig (413.7 kPag): 9.46 | 70 psig (482.7 kPag): 10.8 | 80 psig (551.6 kPag): 12.1 | 90 psig (620.6 kPag): 13.4 | 100 psig (689.5 kPag): 14.7
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.11 | 20 In. Hg.: 4.11 | 30 In. Hg.: 4.11
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.94 | 20 In. Hg. (508 Mm. Hg.): 1.94 | 30 In. Hg. (762 Mm. Hg.): 1.94
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.99 | 10 In. Hg.: 3.79
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.41 | 10 In. Hg. (254 Mm. Hg.): 1.79
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0080 | 2 psig: 0.0113 | 3 psig: 0.0139 | 4 psig: 0.0160 | 5 psig: 0.0179 | 6 psig: 0.0196 | 7 psig: 0.0212 | 8 psig: 0.0226 | 9 psig: 0.0240 | 10 psig: 0.0253 | 15 psig: 0.0310 | 20 psig: 0.0358 | 30 psig: 0.0438 | 40 psig: 0.0506 | 50 psig: 0.0566 | 60 psig: 0.0620 | 70 psig: 0.0669 | 80 psig: 0.0716 | 90 psig: 0.0759 | 100 psig: 0.0800
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0303 | 2 psig (13.8 kPag): 0.0428 | 3 psig (20.7 kPag): 0.0525 | 4 psig (27.6 kPag): 0.0606 | 5 psig (34.5 kPag): 0.0677 | 6 psig (41.4 kPag): 0.0677 | 7 psig (48.3 kPag): 0.0801 | 8 psig (55.2 kPag): 0.0857 | 9 psig (62.1 kPag): 0.0908 | 10 psig (69 kPag): 0.0958 | 15 psig (103.4 kPag): 0.1173 | 20 psig (137.9 kPag): 0.1354 | 30 psig (206.9 kPag): 0.1659 | 40 psig (275.8 kPag): 0.1915 | 50 psig (344.8 kPag): 0.2141 | 60 psig (413.7 kPag): 0.2346 | 70 psig (482.7 kPag): 0.2534 | 80 psig (551.6 kPag): 0.2709 | 90 psig (620.6 kPag): 0.2873 | 100 psig (689.5 kPag): 0.3028
Specifications Connection A
.0945" Press-Fit Insert
Specifications Cv
0.008
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
19
Specifications Screened
None
