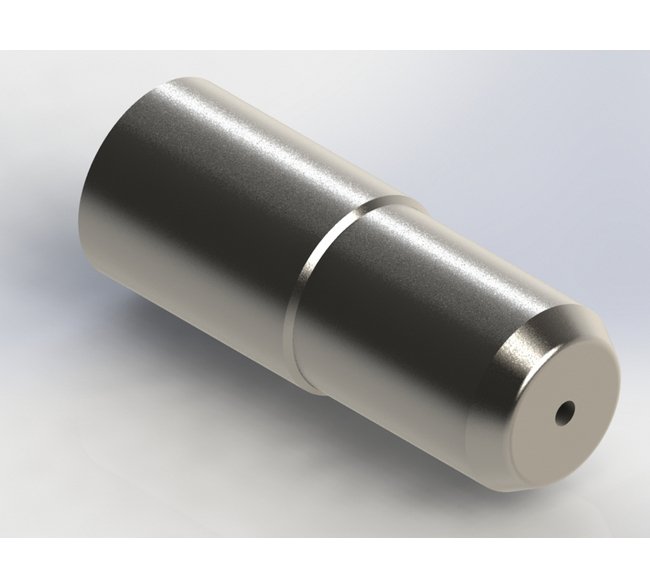

Precision Metal Orifices - Press-Fit Inserts 0.094' OD - 303 SS
Precision Metal Orifices - Press-Fit Inserts 0.094' OD - 303 SS
SKU:PRE-05b80a
Precision Metal Orifices - Press-Fit Inserts 0.094' OD. Achieve precise flow control with 303 SS inserts.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Press-Fit Inserts 0.094' OD - 303 SS
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts 0.094' OD - 303 SS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices, Press-Fit Inserts in 0.094' OD are meticulously designed to seamlessly press-fit into accurately machined openings in fittings, manifolds, and custom parts. Crafted from durable 303 SS, these inserts provide precise control over the flow rate of liquids or gases. With a maximum operating pressure of 4000 psig and a CV of 0.0028, these orifices offer reliable performance in a wide range of applications. Whether used in manifolds or custom assemblies, these orifices ensure optimal flow control and are ideal for meeting stringent procurement standards.
Product Specifications
Application 0

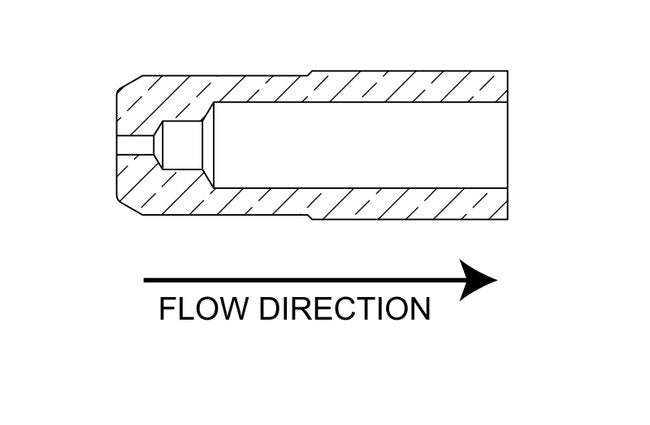

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

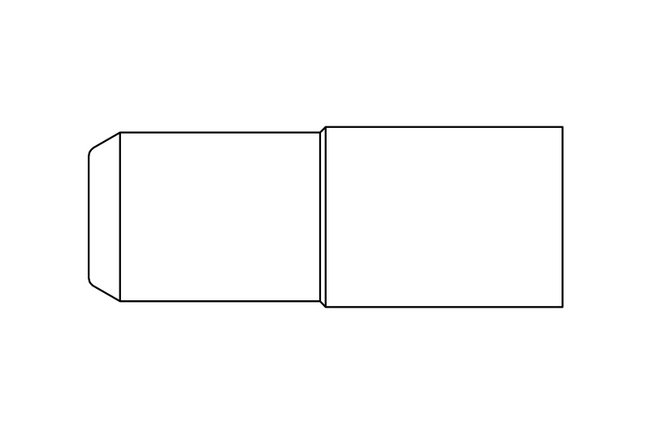

Dimensions Maximum Outside Diameter
0.0950 in
Dimensions Minimum Outside Diameter
0.0945 in
Dimensions Orifice Diameter
0.011 in | 0.28 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0930 to 0.0940 in
Dimensions Shank Length
0.125 in
Dimensions Total Length
0.25 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.653 | 5 psig: 1.51 | 10 psig: 2.14 | 15 psig: 2.67 | 20 psig: 3.16 | 25 psig: 3.62 | 30 psig: 4.09 | 40 psig: 5.02 | 50 psig: 5.93 | 60 psig: 6.84 | 70 psig: 7.76 | 80 psig: 8.67 | 90 psig: 9.56 | 100 psig: 10.5
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.308 | 5 psig (34.5 kPag): 0.71 | 10 psig (69.0 kPag): 1.01 | 15 psig (103.4 kPag): 1.26 | 20 psig (137.9 kPag): 1.49 | 25 psig (172.4 kPag): 1.71 | 30 psig (206.9 kPag): 1.93 | 40 psig (275.8 kPag): 2.37 | 50 psig (344.8 kPag): 2.80 | 60 psig (413.7 kPag): 3.23 | 70 psig (482.7 kPag): 3.66 | 80 psig (551.6 kPag): 4.09 | 90 psig (620.6 kPag): 4.51 | 100 psig (689.5 kPag): 4.94
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.30 | 20 In. Hg.: 1.30 | 30 In. Hg.: 1.30
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.614 | 20 In. Hg. (508 Mm. Hg.): 0.614 | 30 In. Hg. (762 Mm. Hg.): 0.614
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.953 | 10 In. Hg.: 1.20
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.450 | 10 In. Hg. (254 Mm. Hg.): 0.564
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0028 | 2 psig: 0.0040 | 3 psig: 0.0048 | 4 psig: 0.0056 | 5 psig: 0.0063 | 6 psig: 0.0069 | 7 psig: 0.0074 | 8 psig: 0.0079 | 9 psig: 0.0084 | 10 psig: 0.0089 | 15 psig: 0.0108 | 20 psig: 0.0125 | 30 psig: 0.0153 | 40 psig: 0.0177 | 50 psig: 0.0198 | 60 psig: 0.0217 | 70 psig: 0.0234 | 80 psig: 0.0250 | 90 psig: 0.0266 | 100 psig: 0.0280
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0106 | 2 psig (13.8 kPag): 0.0150 | 3 psig (20.7 kPag): 0.0184 | 4 psig (27.6 kPag): 0.0212 | 5 psig (34.5 kPag): 0.0237 | 6 psig (41.4 kPag): 0.0237 | 7 psig (48.3 kPag): 0.0280 | 8 psig (55.2 kPag): 0.0300 | 9 psig (62.1 kPag): 0.0318 | 10 psig (69 kPag): 0.0335 | 15 psig (103.4 kPag): 0.0411 | 20 psig (137.9 kPag): 0.0474 | 30 psig (206.9 kPag): 0.0581 | 40 psig (275.8 kPag): 0.0670 | 50 psig (344.8 kPag): 0.0749 | 60 psig (413.7 kPag): 0.0821 | 70 psig (482.7 kPag): 0.0887 | 80 psig (551.6 kPag): 0.0948 | 90 psig (620.6 kPag): 0.1006 | 100 psig (689.5 kPag): 0.1060
Specifications Connection A
.0945" Press-Fit Insert
Specifications Cv
0.0028
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
11
Specifications Screened
None
