Precision Metal Orifices - Press-Fit Inserts, 0.094" OD - 303 SS
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts, 0.094" OD - 303 SS
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

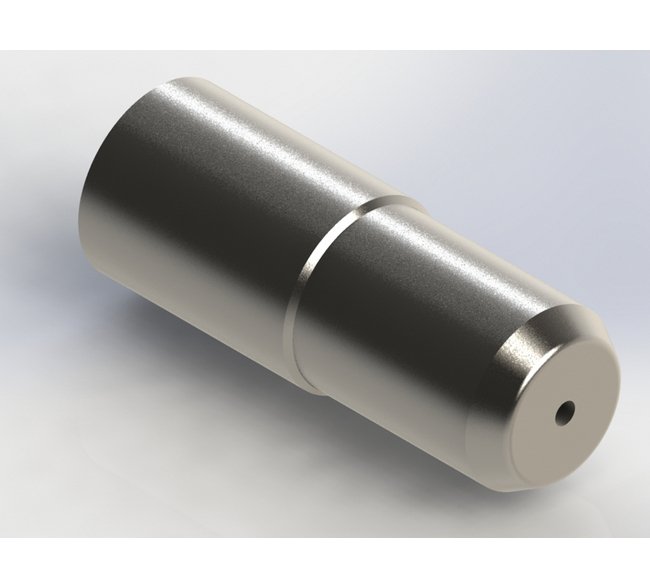

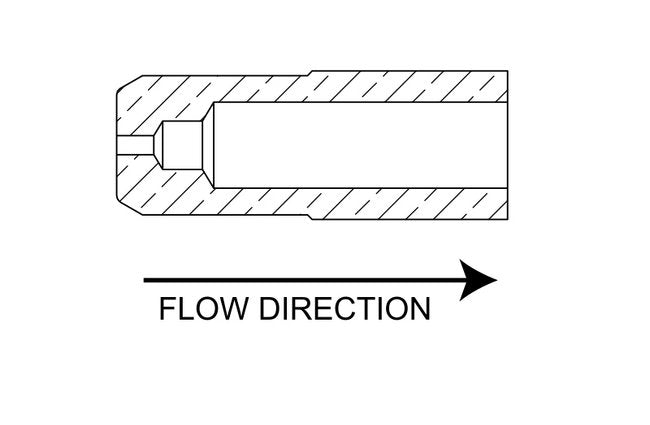

The Precision Metal Orifices - Press-Fit Inserts are meticulously engineered to seamlessly press-fit into accurately machined openings in fittings, manifolds, and custom parts. Crafted from high-grade 303 SS material, these inserts offer precision and durability for controlling liquid or gas flow rates. With an Orifice Diameter Accuracy of ±0.0005 inches and a Press Fit into Bore range of 0.0930 to 0.0940 inches, these orifices ensure reliable performance. Ideal for applications requiring maximum operating pressure of 4000 psig, these orifices guarantee exceptional flow control in fluid systems.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.0950 in
Dimensions Minimum Outside Diameter
0.0945 in
Dimensions Orifice Diameter
0.0142 in | 0.36 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0930 to 0.0940 in

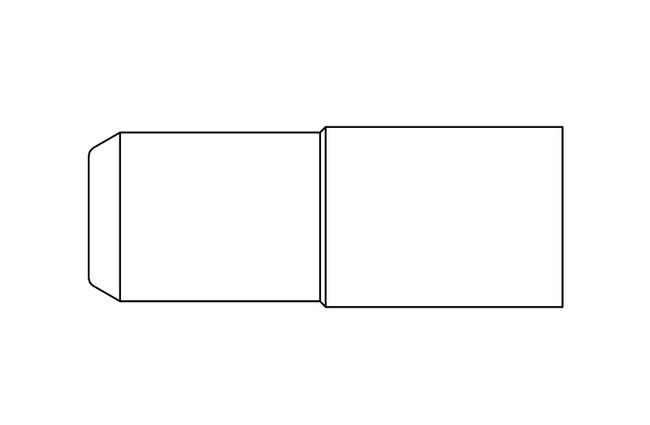

Dimensions Shank Length
0.125 in
Dimensions Total Length
0.25 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.11 | 5 psig: 2.56 | 10 psig: 3.56 | 15 psig: 4.45 | 20 psig: 5.28 | 25 psig: 6.06 | 30 psig: 6.80 | 40 psig: 8.33 | 50 psig: 9.83 | 60 psig: 11.3 | 70 psig: 12.8 | 80 psig: 14.3 | 90 psig: 15.9 | 100 psig: 17.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.52 | 5 psig (34.5 kPag): 1.21 | 10 psig (69.0 kPag): 1.68 | 15 psig (103.4 kPag): 2.10 | 20 psig (137.9 kPag): 2.49 | 25 psig (172.4 kPag): 2.86 | 30 psig (206.9 kPag): 3.21 | 40 psig (275.8 kPag): 3.93 | 50 psig (344.8 kPag): 4.64 | 60 psig (413.7 kPag): 5.34 | 70 psig (482.7 kPag): 6.05 | 80 psig (551.6 kPag): 6.77 | 90 psig (620.6 kPag): 7.49 | 100 psig (689.5 kPag): 8.21
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.26 | 20 In. Hg.: 2.26 | 30 In. Hg.: 2.26
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.07 | 20 In. Hg. (508 Mm. Hg.): 1.07 | 30 In. Hg. (762 Mm. Hg.): 1.07
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.64 | 10 In. Hg.: 2.06
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.773 | 10 In. Hg. (254 Mm. Hg.): 0.972
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0043 | 2 psig: 0.0061 | 3 psig: 0.0074 | 4 psig: 0.0086 | 5 psig: 0.0096 | 6 psig: 0.0105 | 7 psig: 0.0114 | 8 psig: 0.0122 | 9 psig: 0.0129 | 10 psig: 0.0136 | 15 psig: 0.0167 | 20 psig: 0.0192 | 30 psig: 0.0236 | 40 psig: 0.0272 | 50 psig: 0.0304 | 60 psig: 0.0333 | 70 psig: 0.0360 | 80 psig: 0.0385 | 90 psig: 0.0408 | 100 psig: 0.0430
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0163 | 2 psig (13.8 kPag): 0.0230 | 3 psig (20.7 kPag): 0.0282 | 4 psig (27.6 kPag): 0.0326 | 5 psig (34.5 kPag): 0.0364 | 6 psig (41.4 kPag): 0.0364 | 7 psig (48.3 kPag): 0.0431 | 8 psig (55.2 kPag): 0.0460 | 9 psig (62.1 kPag): 0.0488 | 10 psig (69 kPag): 0.0515 | 15 psig (103.4 kPag): 0.0630 | 20 psig (137.9 kPag): 0.0728 | 30 psig (206.9 kPag): 0.0892 | 40 psig (275.8 kPag): 0.1029 | 50 psig (344.8 kPag): 0.1151 | 60 psig (413.7 kPag): 0.1261 | 70 psig (482.7 kPag): 0.1362 | 80 psig (551.6 kPag): 0.1456 | 90 psig (620.6 kPag): 0.1544 | 100 psig (689.5 kPag): 0.1628
Specifications Connection A
.0945" Press-Fit Insert
Specifications Cv
0.0043
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
14
Specifications Screened
None
