Precision Metal Orifices - Press-Fit Inserts 0.124" OD
Precision Metal Orifices - Press-Fit Inserts 0.124" OD
SKU:PRE-5290d4
Enhance fluid control with Precision Metal Orifices - Press-Fit Inserts 0.124" OD for precise flow rate management in fittings and manifolds.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Press-Fit Inserts 0.124" OD
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts 0.124" OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

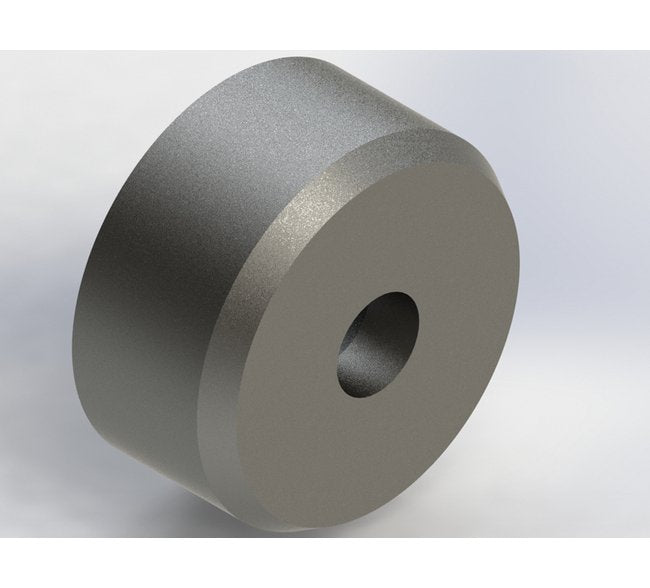

Enhance fluid control in fittings, manifolds, and custom parts with our Precision Metal Orifices - Press-Fit Inserts. These inserts, meticulously machined for precise press-fitting, offer a choice of sizes and durable 303 SS construction. With an accurate orifice diameter of 0.124" (+/- 0.0005"), maximum operating pressure of 4000 psig, and optimal CV of 0.0019, these inserts ensure reliable flow rate control of liquids or gases. Compatible with a variety of fittings, our orifices guarantee efficiency and accuracy in fluid handling applications.
Product Specifications
Application 0

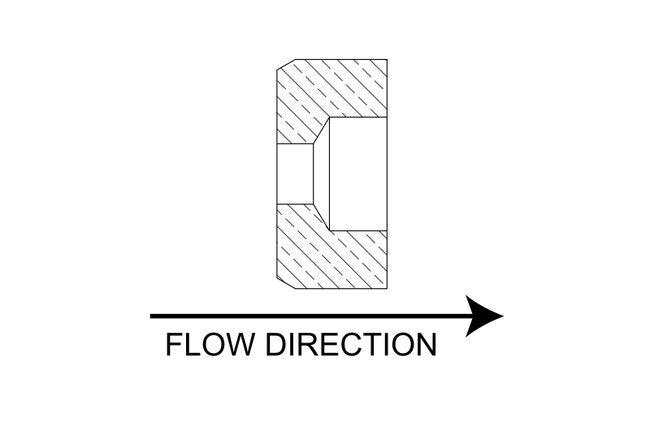

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.1250 in
Dimensions Minimum Outside Diameter
0.1240 in
Dimensions Orifice Diameter
0.0091 in | 0.23 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.1230 to 0.1235 in
Dimensions Total Length
0.060 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.479 | 5 psig: 1.10 | 10 psig: 1.57 | 15 psig: 1.97 | 20 psig: 2.33 | 25 psig: 2.69 | 30 psig: 3.03 | 40 psig: 3.75 | 50 psig: 4.45 | 60 psig: 5.13 | 70 psig: 5.83 | 80 psig: 6.53 | 90 psig: 7.20 | 100 psig: 7.88
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.226 | 5 psig (34.5 kPag): 0.52 | 10 psig (69.0 kPag): 0.74 | 15 psig (103.4 kPag): 0.93 | 20 psig (137.9 kPag): 1.10 | 25 psig (172.4 kPag): 1.27 | 30 psig (206.9 kPag): 1.43 | 40 psig (275.8 kPag): 1.77 | 50 psig (344.8 kPag): 2.10 | 60 psig (413.7 kPag): 2.42 | 70 psig (482.7 kPag): 2.75 | 80 psig (551.6 kPag): 3.08 | 90 psig (620.6 kPag): 3.40 | 100 psig (689.5 kPag): 3.72
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.964 | 20 In. Hg.: 0.964 | 30 In. Hg.: 0.964
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.455 | 20 In. Hg. (508 Mm. Hg.): 0.455 | 30 In. Hg. (762 Mm. Hg.): 0.455
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.703 | 10 In. Hg.: 0.892
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.332 | 10 In. Hg. (254 Mm. Hg.): 0.421
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0019 | 2 psig: 0.0027 | 3 psig: 0.0033 | 4 psig: 0.0038 | 5 psig: 0.0042 | 6 psig: 0.0047 | 7 psig: 0.0050 | 8 psig: 0.0054 | 9 psig: 0.0057 | 10 psig: 0.0060 | 15 psig: 0.0074 | 20 psig: 0.0085 | 30 psig: 0.0104 | 40 psig: 0.0120 | 50 psig: 0.0134 | 60 psig: 0.0147 | 70 psig: 0.0159 | 80 psig: 0.0170 | 90 psig: 0.0180 | 100 psig: 0.0190
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0072 | 2 psig (13.8 kPag): 0.0102 | 3 psig (20.7 kPag): 0.0125 | 4 psig (27.6 kPag): 0.0144 | 5 psig (34.5 kPag): 0.0161 | 6 psig (41.4 kPag): 0.0161 | 7 psig (48.3 kPag): 0.0190 | 8 psig (55.2 kPag): 0.0203 | 9 psig (62.1 kPag): 0.0216 | 10 psig (69 kPag): 0.0227 | 15 psig (103.4 kPag): 0.0279 | 20 psig (137.9 kPag): 0.0322 | 30 psig (206.9 kPag): 0.0394 | 40 psig (275.8 kPag): 0.0455 | 50 psig (344.8 kPag): 0.0509 | 60 psig (413.7 kPag): 0.0557 | 70 psig (482.7 kPag): 0.0602 | 80 psig (551.6 kPag): 0.0643 | 90 psig (620.6 kPag): 0.0682 | 100 psig (689.5 kPag): 0.0719
Specifications Connection A
.124" Press-Fit Insert
Specifications Cv
0.0019
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
9
Specifications Screened
None
