Precision Metal Orifices - Press-Fit Inserts 0.124" OD, 303 SS
Precision Metal Orifices - Press-Fit Inserts 0.124" OD, 303 SS
SKU:PRE-d49096
Enhance fluid flow control with Precision Metal Orifices - Press-Fit Inserts in 0.124" OD. Made from high-quality 303 SS for precise fits and superior flow regulation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Press-Fit Inserts 0.124" OD, 303 SS
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts 0.124" OD, 303 SS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

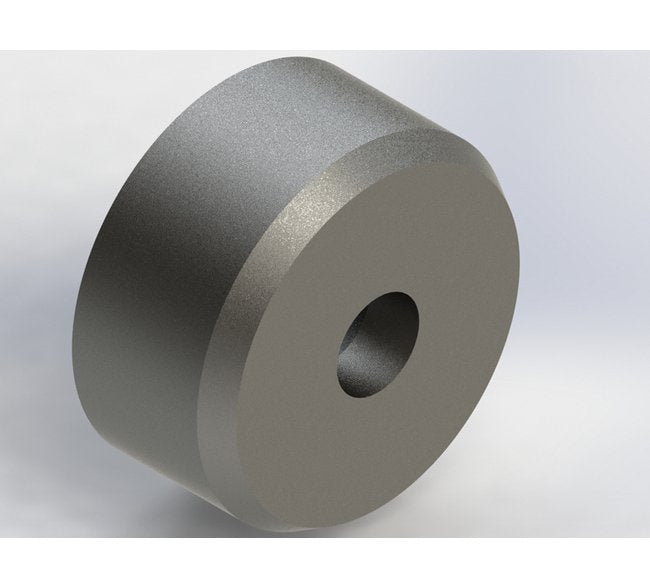

The Precision Metal Orifices - Press-Fit Inserts are expertly designed for precise press-fitting into fittings, manifolds, and custom parts. Crafted from high-grade 303 stainless steel, these inserts offer superior dimensional accuracy with an orifice diameter of 0.124 inches, ensuring optimal flow control for liquids or gases. Ideal for applications requiring meticulous flow rate management, these orifices guarantee reliable performance and durability in diverse institutional settings.
Product Specifications
Application 0

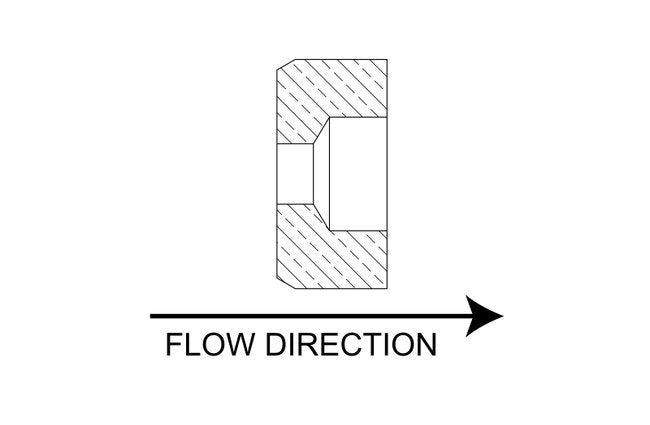

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.1250 in
Dimensions Minimum Outside Diameter
0.1240 in
Dimensions Orifice Diameter
0.015 in | 0.38 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.1230 to 0.1235 in
Dimensions Total Length
0.060 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.30 | 5 psig: 2.99 | 10 psig: 4.13 | 15 psig: 5.17 | 20 psig: 6.08 | 25 psig: 6.95 | 30 psig: 7.82 | 40 psig: 9.56 | 50 psig: 11.3 | 60 psig: 13.0 | 70 psig: 14.7 | 80 psig: 16.5 | 90 psig: 18.3 | 100 psig: 20.0
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.61 | 5 psig (34.5 kPag): 1.41 | 10 psig (69.0 kPag): 1.95 | 15 psig (103.4 kPag): 2.44 | 20 psig (137.9 kPag): 2.87 | 25 psig (172.4 kPag): 3.28 | 30 psig (206.9 kPag): 3.69 | 40 psig (275.8 kPag): 4.51 | 50 psig (344.8 kPag): 5.31 | 60 psig (413.7 kPag): 6.13 | 70 psig (482.7 kPag): 6.96 | 80 psig (551.6 kPag): 7.79 | 90 psig (620.6 kPag): 8.62 | 100 psig (689.5 kPag): 9.46
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.59 | 20 In. Hg.: 2.59 | 30 In. Hg.: 2.59
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.22 | 20 In. Hg. (508 Mm. Hg.): 1.22 | 30 In. Hg. (762 Mm. Hg.): 1.22
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.9 | 10 In. Hg.: 2.37
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.899 | 10 In. Hg. (254 Mm. Hg.): 1.12
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0050 | 2 psig: 0.0071 | 3 psig: 0.0087 | 4 psig: 0.0100 | 5 psig: 0.0112 | 6 psig: 0.0122 | 7 psig: 0.0132 | 8 psig: 0.0141 | 9 psig: 0.0150 | 10 psig: 0.0158 | 15 psig: 0.0194 | 20 psig: 0.0224 | 30 psig: 0.0274 | 40 psig: 0.0316 | 50 psig: 0.0354 | 60 psig: 0.0387 | 70 psig: 0.0418 | 80 psig: 0.0447 | 90 psig: 0.0474 | 100 psig: 0.0500
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0189 | 2 psig (13.8 kPag): 0.0268 | 3 psig (20.7 kPag): 0.0328 | 4 psig (27.6 kPag): 0.0379 | 5 psig (34.5 kPag): 0.0423 | 6 psig (41.4 kPag): 0.0423 | 7 psig (48.3 kPag): 0.0501 | 8 psig (55.2 kPag): 0.0535 | 9 psig (62.1 kPag): 0.0568 | 10 psig (69 kPag): 0.0599 | 15 psig (103.4 kPag): 0.0733 | 20 psig (137.9 kPag): 0.0846 | 30 psig (206.9 kPag): 0.1037 | 40 psig (275.8 kPag): 0.1197 | 50 psig (344.8 kPag): 0.1338 | 60 psig (413.7 kPag): 0.1466 | 70 psig (482.7 kPag): 0.1584 | 80 psig (551.6 kPag): 0.1693 | 90 psig (620.6 kPag): 0.1796 | 100 psig (689.5 kPag): 0.1893
Specifications Connection A
.124" Press-Fit Insert
Specifications Cv
0.005
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
15
Specifications Screened
None
