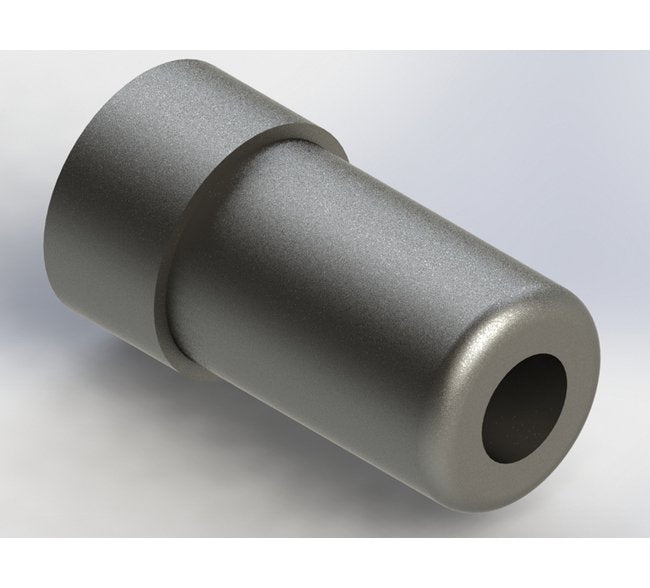

Precision Metal Orifices - Press-Fit Inserts 0.128"
Precision Metal Orifices - Press-Fit Inserts 0.128"
SKU:PRE-2d0669
High-precision metal orifices for accurate flow control in fittings and manifolds. Constructed with 303 SS material for durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Press-Fit Inserts 0.128"
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts 0.128"
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices - Press-Fit Inserts with 0.128" OD are expertly designed for precise press-fitting into fittings, manifolds, and custom parts, ensuring accurate control of liquid and gas flow rates. Constructed with high-quality 303 SS material, these orifices offer a CV of 0.0055 and can withstand a maximum operating pressure of 4000 psig. With orifice diameter accuracy of ±0.0005 in, they guarantee optimal performance. Ideal for applications requiring meticulous flow rate control, these orifices excel in accuracy and durability.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.129 in
Dimensions Minimum Outside Diameter
0.128 in
Dimensions Orifice Diameter
0.016 in | 0.41 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.126 to 0.127 in
Dimensions Shank Length
0.196 in
Dimensions Total Length
0.276 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.40 | 5 psig: 3.26 | 10 psig: 4.26 | 15 psig: 5.30 | 20 psig: 6.29 | 25 psig: 7.25 | 30 psig: 8.20 | 40 psig: 10.1 | 50 psig: 12.1 | 60 psig: 14.0 | 70 psig: 16 | 80 psig: 17.9 | 90 psig: 19.9 | 100 psig: 21.8
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.66 | 5 psig (34.5 kPag): 1.54 | 10 psig (69.0 kPag): 2.01 | 15 psig (103.4 kPag): 2.50 | 20 psig (137.9 kPag): 2.97 | 25 psig (172.4 kPag): 3.42 | 30 psig (206.9 kPag): 3.87 | 40 psig (275.8 kPag): 4.78 | 50 psig (344.8 kPag): 5.70 | 60 psig (413.7 kPag): 6.61 | 70 psig (482.7 kPag): 7.53 | 80 psig (551.6 kPag): 8.46 | 90 psig (620.6 kPag): 9.38 | 100 psig (689.5 kPag): 10.3
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.86 | 20 In. Hg.: 2.86 | 30 In. Hg.: 2.86
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.35 | 20 In. Hg. (508 Mm. Hg.): 1.35 | 30 In. Hg. (762 Mm. Hg.): 1.35
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.07 | 10 In. Hg.: 2.62
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.977 | 10 In. Hg. (254 Mm. Hg.): 1.24
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0055 | 2 psig: 0.0078 | 3 psig: 0.0095 | 4 psig: 0.0110 | 5 psig: 0.0123 | 6 psig: 0.0135 | 7 psig: 0.0146 | 8 psig: 0.0156 | 9 psig: 0.0165 | 10 psig: 0.0174 | 15 psig: 0.0213 | 20 psig: 0.0246 | 30 psig: 0.0301 | 40 psig: 0.0348 | 50 psig: 0.0389 | 60 psig: 0.0426 | 70 psig: 0.0460 | 80 psig: 0.0492 | 90 psig: 0.0522 | 100 psig: 0.0550
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0208 | 2 psig (13.8 kPag): 0.0294 | 3 psig (20.7 kPag): 0.0361 | 4 psig (27.6 kPag): 0.0416 | 5 psig (34.5 kPag): 0.0466 | 6 psig (41.4 kPag): 0.0466 | 7 psig (48.3 kPag): 0.0551 | 8 psig (55.2 kPag): 0.0589 | 9 psig (62.1 kPag): 0.0625 | 10 psig (69 kPag): 0.0658 | 15 psig (103.4 kPag): 0.0806 | 20 psig (137.9 kPag): 0.0931 | 30 psig (206.9 kPag): 0.1140 | 40 psig (275.8 kPag): 0.1317 | 50 psig (344.8 kPag): 0.1472 | 60 psig (413.7 kPag): 0.1613 | 70 psig (482.7 kPag): 0.1742 | 80 psig (551.6 kPag): 0.1862 | 90 psig (620.6 kPag): 0.1975 | 100 psig (689.5 kPag): 0.2082
Specifications Connection A
.128" Press-Fit Insert
Specifications Cv
0.0055
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
16
Specifications Screened
None
