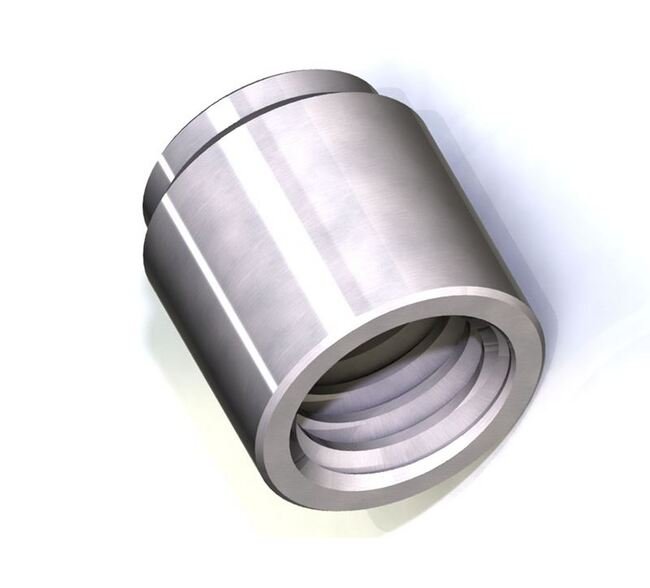

Precision Metal Orifices - Press-Fit Inserts 0.249" OD
Precision Metal Orifices - Press-Fit Inserts 0.249" OD
SKU:PRE-83dd46
Achieve precise fluid control with our high-grade Precision Metal Orifices - Press-Fit Inserts for industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Press-Fit Inserts 0.249" OD
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts 0.249" OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control systems with our Precision Metal Orifices - Press-Fit Inserts. Expertly designed to press-fit into fittings, manifolds, or custom parts, these inserts offer precise flow rate control for liquids or gases. Constructed from high-grade 303 SS, with an orifice diameter accuracy of ±0.0005", and a maximum operating pressure of 4000 psig, these orifices ensure reliability and durability in demanding industrial environments. Whether for fittings or custom assemblies, these precision inserts enhance performance and efficiency.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.2495 in
Dimensions Minimum Outside Diameter
0.2490 in
Dimensions Orifice Diameter
0.024 in | 0.61 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.2475 to 0.2485 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 3.26 | 5 psig: 7.48 | 10 psig: 11.0 | 15 psig: 13.6 | 20 psig: 16.1 | 25 psig: 18.3 | 30 psig: 20.7 | 40 psig: 25.4 | 50 psig: 30.1 | 60 psig: 34.7 | 70 psig: 39.2 | 80 psig: 43.9 | 90 psig: 48.5 | 100 psig: 53.2
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.54 | 5 psig (34.5 kPag): 3.53 | 10 psig (69.0 kPag): 5.18 | 15 psig (103.4 kPag): 6.43 | 20 psig (137.9 kPag): 7.58 | 25 psig (172.4 kPag): 8.65 | 30 psig (206.9 kPag): 9.75 | 40 psig (275.8 kPag): 12.0 | 50 psig (344.8 kPag): 14.2 | 60 psig (413.7 kPag): 16.4 | 70 psig (482.7 kPag): 18.5 | 80 psig (551.6 kPag): 20.7 | 90 psig (620.6 kPag): 22.9 | 100 psig (689.5 kPag): 25.1
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 6.61 | 20 In. Hg.: 6.61 | 30 In. Hg.: 6.61
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.12 | 20 In. Hg. (508 Mm. Hg.): 3.12 | 30 In. Hg. (762 Mm. Hg.): 3.12
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.87 | 10 In. Hg.: 6.12
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.30 | 10 In. Hg. (254 Mm. Hg.): 2.89
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.013 | 2 psig: 0.018 | 3 psig: 0.023 | 4 psig: 0.026 | 5 psig: 0.029 | 6 psig: 0.032 | 7 psig: 0.034 | 8 psig: 0.037 | 9 psig: 0.039 | 10 psig: 0.041 | 15 psig: 0.050 | 20 psig: 0.058 | 30 psig: 0.071 | 40 psig: 0.082 | 50 psig: 0.092 | 60 psig: 0.101 | 70 psig: 0.109 | 80 psig: 0.116 | 90 psig: 0.123 | 100 psig: 0.130
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.049 | 2 psig (13.8 kPag): 0.070 | 3 psig (20.7 kPag): 0.085 | 4 psig (27.6 kPag): 0.098 | 5 psig (34.5 kPag): 0.110 | 6 psig (41.4 kPag): 0.110 | 7 psig (48.3 kPag): 0.130 | 8 psig (55.2 kPag): 0.139 | 9 psig (62.1 kPag): 0.148 | 10 psig (69 kPag): 0.156 | 15 psig (103.4 kPag): 0.191 | 20 psig (137.9 kPag): 0.220 | 30 psig (206.9 kPag): 0.270 | 40 psig (275.8 kPag): 0.311 | 50 psig (344.8 kPag): 0.348 | 60 psig (413.7 kPag): 0.381 | 70 psig (482.7 kPag): 0.412 | 80 psig (551.6 kPag): 0.440 | 90 psig (620.6 kPag): 0.467 | 100 psig (689.5 kPag): 0.492
Specifications Connection A
.249" Press-Fit Insert
Specifications Cv
0.013
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
24
Specifications Screened
None
