Precision Metal Orifices - Press-Fit Inserts, 0.258" OD
Precision Metal Orifices - Press-Fit Inserts, 0.258" OD
SKU:PRE-8a7cbc
Ensure precise fluid control with our Precision Metal Orifices - Press-Fit Inserts, crafted from durable 303 SS material for accurate flow rate management in various applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision Metal Orifices - Press-Fit Inserts, 0.258" OD
$39.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts, 0.258" OD
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

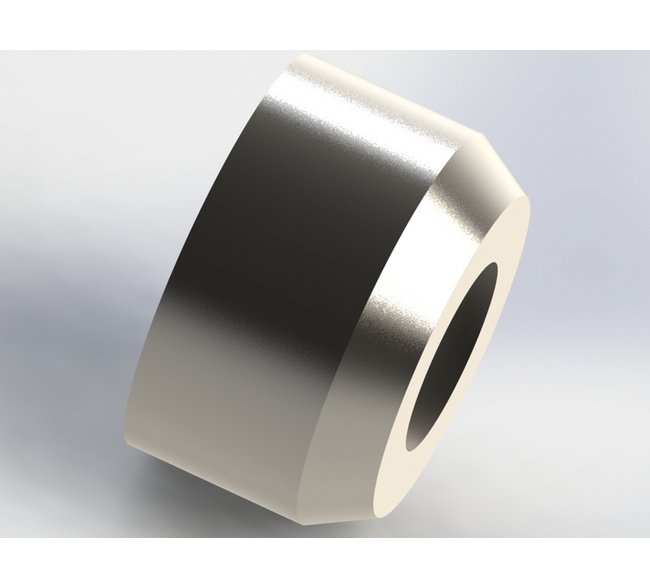

The Precision Metal Orifices - Press-Fit Inserts, 0.258" OD are expertly crafted to seamlessly press-fit into accurately machined openings in various fittings, manifolds, and custom parts. Crafted from resilient 303 SS material, these inserts ensure precise flow control of liquids or gases within a wide range of pressure, supported by a CV of 0.031 and a maximum operating pressure of 4000 psig. These orifices offer exceptional durability and accuracy in flow rate control applications, making them ideal for applications requiring meticulous fluid control. Choose these inserts for guaranteed precision and reliability in your critical systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.259 in
Dimensions Minimum Outside Diameter
0.258 in
Dimensions Orifice Diameter
0.037 in | 0.94 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.256 to 0.257 in
Dimensions Total Length
0.156 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 8.12 | 5 psig: 18.0 | 10 psig: 25.0 | 15 psig: 30.7 | 20 psig: 36.0 | 25 psig: 41.5 | 30 psig: 47.0 | 40 psig: 58.1 | 50 psig: 69.1 | 60 psig: 80.5 | 70 psig: 91.7 | 80 psig: 103 | 90 psig: 115 | 100 psig: 126
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.83 | 5 psig (34.5 kPag): 8.48 | 10 psig (69.0 kPag): 11.8 | 15 psig (103.4 kPag): 14.5 | 20 psig (137.9 kPag): 17 | 25 psig (172.4 kPag): 19.6 | 30 psig (206.9 kPag): 22.2 | 40 psig (275.8 kPag): 27.4 | 50 psig (344.8 kPag): 32.6 | 60 psig (413.7 kPag): 38 | 70 psig (482.7 kPag): 43.3 | 80 psig (551.6 kPag): 48.7 | 90 psig (620.6 kPag): 54.2 | 100 psig (689.5 kPag): 59.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 15.2 | 20 In. Hg.: 15.2 | 30 In. Hg.: 15.2
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 7.17 | 20 In. Hg. (508 Mm. Hg.): 7.17 | 30 In. Hg. (762 Mm. Hg.): 7.17
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 11.4 | 10 In. Hg.: 14.4
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 5.4 | 10 In. Hg. (254 Mm. Hg.): 6.78
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.031 | 2 psig: 0.044 | 3 psig: 0.054 | 4 psig: 0.062 | 5 psig: 0.069 | 6 psig: 0.076 | 7 psig: 0.082 | 8 psig: 0.088 | 9 psig: 0.093 | 10 psig: 0.098 | 15 psig: 0.120 | 20 psig: 0.139 | 30 psig: 0.170 | 40 psig: 0.196 | 50 psig: 0.219 | 60 psig: 0.240 | 70 psig: 0.259 | 80 psig: 0.277 | 90 psig: 0.294 | 100 psig: 0.310
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.117 | 2 psig (13.8 kPag): 0.166 | 3 psig (20.7 kPag): 0.203 | 4 psig (27.6 kPag): 0.235 | 5 psig (34.5 kPag): 0.262 | 6 psig (41.4 kPag): 0.287 | 7 psig (48.3 kPag): 0.310 | 8 psig (55.2 kPag): 0.332 | 9 psig (62.1 kPag): 0.352 | 10 psig (69 kPag): 0.371 | 15 psig (103.4 kPag): 0.454 | 20 psig (137.9 kPag): 0.525 | 30 psig (206.9 kPag): 0.643 | 40 psig (275.8 kPag): 0.742 | 50 psig (344.8 kPag): 0.83 | 60 psig (413.7 kPag): 0.909 | 70 psig (482.7 kPag): 0.982 | 80 psig (551.6 kPag): 1.050 | 90 psig (620.6 kPag): 1.113 | 100 psig (689.5 kPag): 1.173
Specifications Connection A
.258" Press-Fit Insert
Specifications Cv
0.031
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
37
Specifications Screened
None
