Precision Metal Orifices - Press-Fit Inserts 0.380"
Precision Metal Orifices - Press-Fit Inserts 0.380"
SKU:PRE-09e023
Enhance flow control with Precision Metal Orifices - Press-Fit Inserts 0.380". High-grade 303 SS construction for precise press-fit compatibility and optimal flow rate control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Press-Fit Inserts 0.380"
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts 0.380"
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

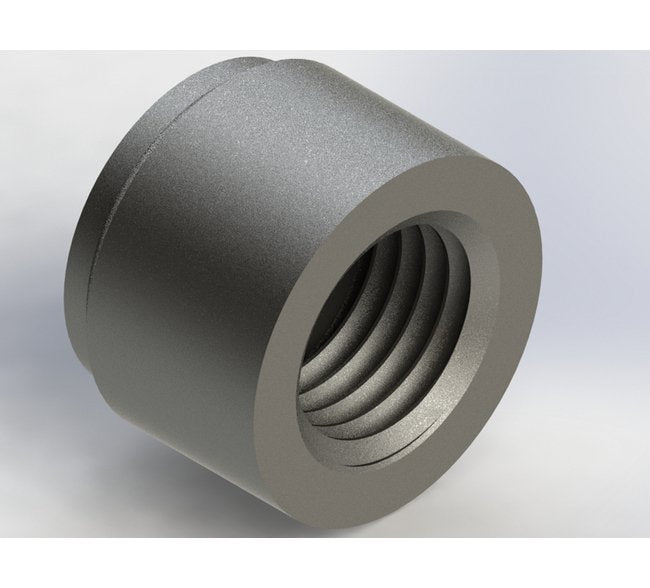

The Precision Metal Orifices - Press-Fit Inserts 0.380" are meticulously crafted to seamlessly press-fit into various machined openings within fittings, manifolds, and custom parts. Constructed from high-grade 303 SS, these inserts offer precise control over flow rates for liquids or gases. With an orifice diameter accuracy of ±0.0005 inches and a maximum operating pressure of 4000 psig, these inserts guarantee exceptional performance and reliability in industrial applications. They can be seamlessly integrated into a wide range of assemblies, ensuring optimal flow rate control and efficiency.
Product Specifications
Application 0

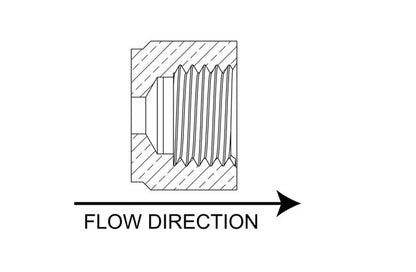

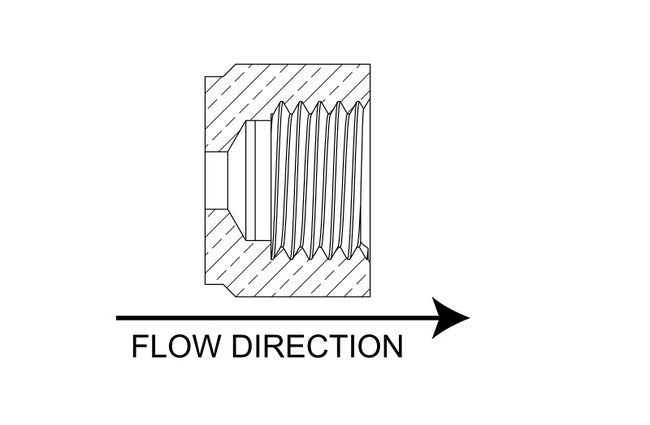

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

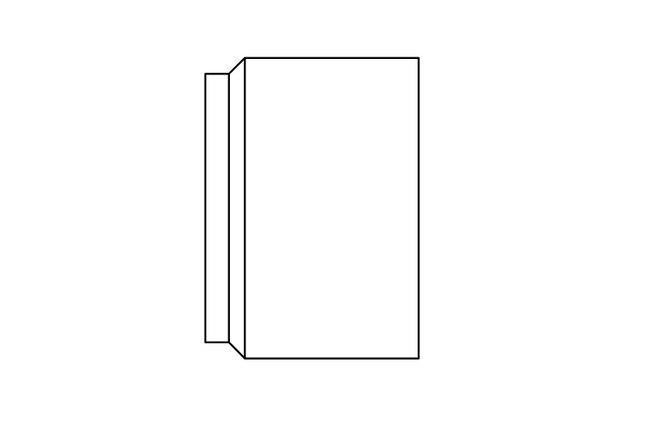

Dimensions Maximum Outside Diameter
0.3805 in
Dimensions Minimum Outside Diameter
0.3800 in
Dimensions Orifice Diameter
0.0700 in | 1.78 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.3785 to 0.3795 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 33.6 | 5 psig: 71.6 | 10 psig: 96.6 | 15 psig: 117 | 20 psig: 138 | 25 psig: 158 | 30 psig: 179 | 40 psig: 220 | 50 psig: 261 | 60 psig: 301 | 70 psig: 343 | 80 psig: 384 | 90 psig: 424 | 100 psig: 468
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 15.9 | 5 psig (34.5 kPag): 33.8 | 10 psig (69.0 kPag): 45.6 | 15 psig (103.4 kPag): 55.3 | 20 psig (137.9 kPag): 65 | 25 psig (172.4 kPag): 74.7 | 30 psig (206.9 kPag): 84.3 | 40 psig (275.8 kPag): 104 | 50 psig (344.8 kPag): 123 | 60 psig (413.7 kPag): 142 | 70 psig (482.7 kPag): 162 | 80 psig (551.6 kPag): 181 | 90 psig (620.6 kPag): 200 | 100 psig (689.5 kPag): 221
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 60.2 | 20 In. Hg.: 60.2 | 30 In. Hg.: 60.2
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 28.4 | 20 In. Hg. (508 Mm. Hg.): 28.4 | 30 In. Hg. (762 Mm. Hg.): 28.4
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 47.7 | 10 In. Hg.: 57.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 22.5 | 10 In. Hg. (254 Mm. Hg.): 27.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.110 | 2 psig: 0.156 | 3 psig: 0.191 | 4 psig: 0.220 | 5 psig: 0.246 | 6 psig: 0.269 | 7 psig: 0.291 | 8 psig: 0.311 | 9 psig: 0.330 | 10 psig: 0.348 | 15 psig: 0.426 | 20 psig: 0.492 | 30 psig: 0.602 | 40 psig: 0.696 | 50 psig: 0.778 | 60 psig: 0.852 | 70 psig: 0.920 | 80 psig: 0.984 | 90 psig: 1.044 | 100 psig: 1.100
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.416 | 2 psig (13.8 kPag): 0.589 | 3 psig (20.7 kPag): 0.721 | 4 psig (27.6 kPag): 0.833 | 5 psig (34.5 kPag): 0.931 | 6 psig (41.4 kPag): 1.020 | 7 psig (48.3 kPag): 1.102 | 8 psig (55.2 kPag): 1.178 | 9 psig (62.1 kPag): 1.249 | 10 psig (69 kPag): 1.317 | 15 psig (103.4 kPag): 1.613 | 20 psig (137.9 kPag): 1.862 | 30 psig (206.9 kPag): 2.281 | 40 psig (275.8 kPag): 2.634 | 50 psig (344.8 kPag): 2.944 | 60 psig (413.7 kPag): 3.225 | 70 psig (482.7 kPag): 3.484 | 80 psig (551.6 kPag): 3.724 | 90 psig (620.6 kPag): 3.95 | 100 psig (689.5 kPag): 4.164
Specifications Connection A
.380" Press-Fit Insert
Specifications Cv
0.110
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
70
Specifications Screened
None
