The Precision Metal Orifices - Press-Fit Inserts are meticulously engineered to ensure precise press-fitting into fittings, manifolds, and custom parts, offering superior control over the flow rate of liquids and gases. Crafted from high-quality 303 SS, these inserts boast an orifice diameter accuracy of ±0.0005 inches and can withstand a maximum operating pressure of 4000 psig. Ideal for a wide range of applications requiring accurate flow control, these inserts guarantee reliability and efficiency in fluid management systems.
Product Specifications
Application 0

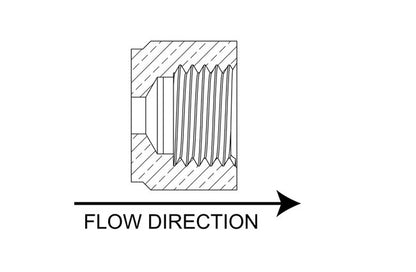

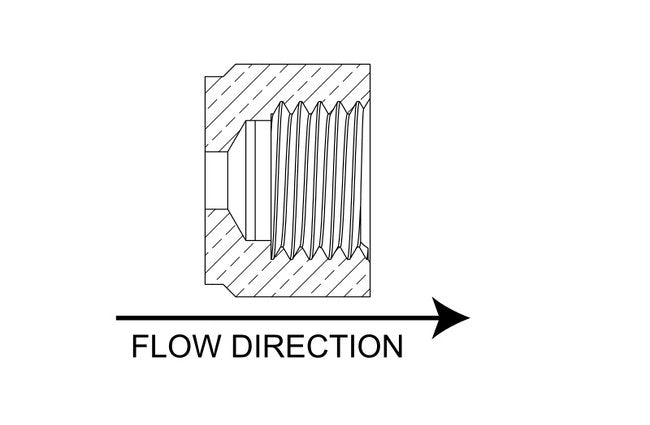

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

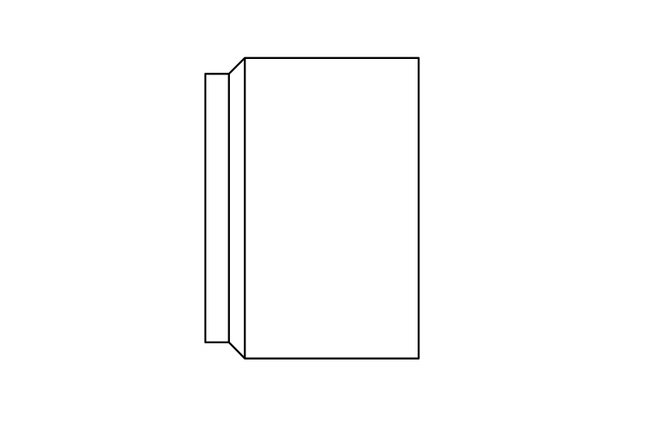

Dimensions Maximum Outside Diameter
0.3805 in
Dimensions Minimum Outside Diameter
0.3800 in
Dimensions Orifice Diameter
0.1090 in | 2.77 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.3785 to 0.3795 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 83.9 | 5 psig: 180 | 10 psig: 237 | 15 psig: 286 | 20 psig: 335 | 25 psig: 381 | 30 psig: 432 | 40 psig: 532 | 50 psig: 634 | 60 psig: 735 | 70 psig: 839 | 80 psig: 943 | 90 psig: 1042 | 100 psig: 1153
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 39.6 | 5 psig (34.5 kPag): 84.8 | 10 psig (69.0 kPag): 112 | 15 psig (103.4 kPag): 135 | 20 psig (137.9 kPag): 158 | 25 psig (172.4 kPag): 180 | 30 psig (206.9 kPag): 204 | 40 psig (275.8 kPag): 251 | 50 psig (344.8 kPag): 299 | 60 psig (413.7 kPag): 347 | 70 psig (482.7 kPag): 396 | 80 psig (551.6 kPag): 445 | 90 psig (620.6 kPag): 492 | 100 psig (689.5 kPag): 544
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 148 | 20 In. Hg.: 148 | 30 In. Hg.: 148
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 70.1 | 20 In. Hg. (508 Mm. Hg.): 70.1 | 30 In. Hg. (762 Mm. Hg.): 70.1
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 114 | 10 In. Hg.: 142
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 53.9 | 10 In. Hg. (254 Mm. Hg.): 67.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.270 | 2 psig: 0.382 | 3 psig: 0.468 | 4 psig: 0.540 | 5 psig: 0.604 | 6 psig: 0.661 | 7 psig: 0.714 | 8 psig: 0.764 | 9 psig: 0.810 | 10 psig: 0.854 | 15 psig: 1.046 | 20 psig: 1.207 | 30 psig: 1.479 | 40 psig: 1.708 | 50 psig: 1.909 | 60 psig: 2.091 | 70 psig: 2.259 | 80 psig: 2.415 | 90 psig: 2.561 | 100 psig: 2.700
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 1.022 | 2 psig (13.8 kPag): 1.445 | 3 psig (20.7 kPag): 1.770 | 4 psig (27.6 kPag): 2.044 | 5 psig (34.5 kPag): 2.285 | 6 psig (41.4 kPag): 2.504 | 7 psig (48.3 kPag): 2.704 | 8 psig (55.2 kPag): 2.891 | 9 psig (62.1 kPag): 3.066 | 10 psig (69 kPag): 3.232 | 15 psig (103.4 kPag): 3.958 | 20 psig (137.9 kPag): 4.571 | 30 psig (206.9 kPag): 5.598 | 40 psig (275.8 kPag): 6.464 | 50 psig (344.8 kPag): 7.227 | 60 psig (413.7 kPag): 7.917 | 70 psig (482.7 kPag): 8.551 | 80 psig (551.6 kPag): 9.142 | 90 psig (620.6 kPag): 9.696 | 100 psig (689.5 kPag): 10.221
Specifications Connection A
.380" Press-Fit Insert
Specifications Cv
0.270
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
109
Specifications Screened
None
