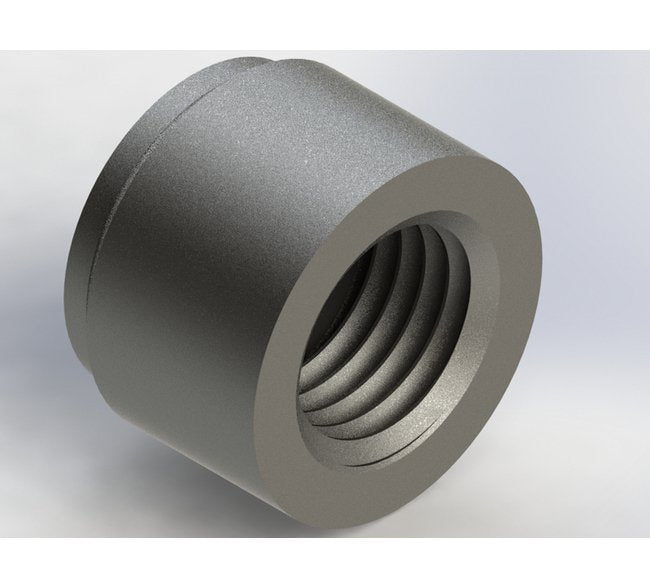

The Precision Metal Orifices - Press-Fit Inserts with a 0.380" OD are meticulously designed for precise press-fitting into fittings, manifolds, and custom parts, offering control over liquid or gas flow rates. Made from high-quality 303 SS, these inserts meet demanding institutional standards for optimal performance and durability. With an orifice diameter accuracy of ±0.0005 inches and a maximum operating pressure of 4000 psig, these inserts ensure reliable flow control in various applications.
Product Specifications
Application 0

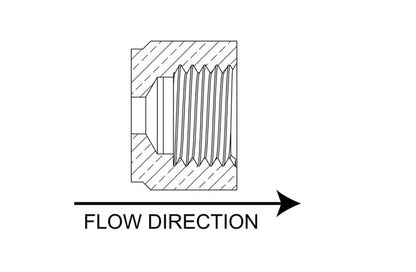

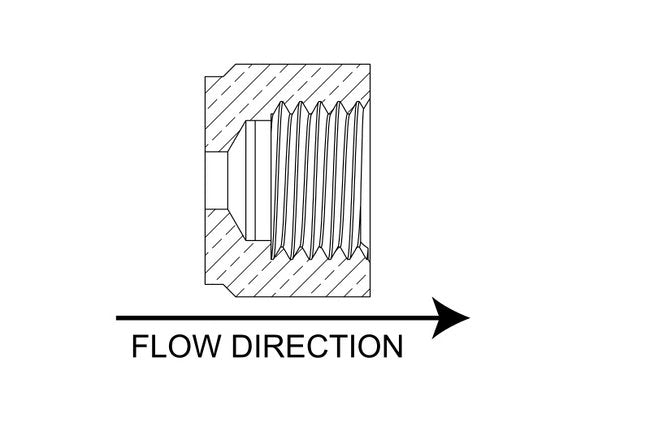

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

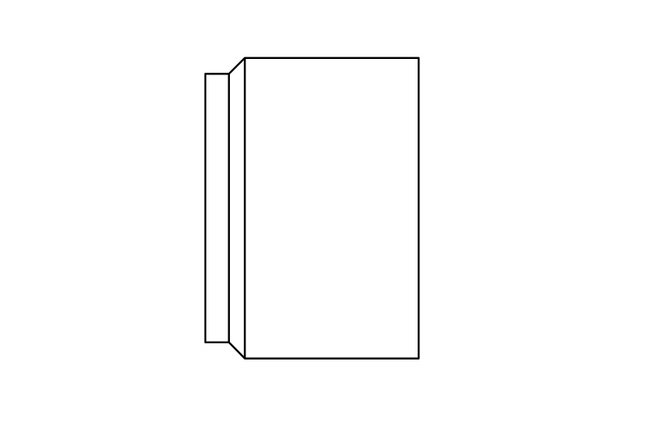

Dimensions Maximum Outside Diameter
0.3805 in
Dimensions Minimum Outside Diameter
0.3800 in
Dimensions Orifice Diameter
0.1130 in | 2.87 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.3785 to 0.3795 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 91.4 | 5 psig: 195 | 10 psig: 250 | 15 psig: 303 | 20 psig: 354 | 25 psig: 405 | 30 psig: 458 | 40 psig: 566 | 50 psig: 672 | 60 psig: 780 | 70 psig: 892 | 80 psig: 1000 | 90 psig: 1106 | 100 psig: 1225
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 43.1 | 5 psig (34.5 kPag): 92.1 | 10 psig (69.0 kPag): 118 | 15 psig (103.4 kPag): 143 | 20 psig (137.9 kPag): 167 | 25 psig (172.4 kPag): 191 | 30 psig (206.9 kPag): 216 | 40 psig (275.8 kPag): 267 | 50 psig (344.8 kPag): 317 | 60 psig (413.7 kPag): 368 | 70 psig (482.7 kPag): 421 | 80 psig (551.6 kPag): 472 | 90 psig (620.6 kPag): 522 | 100 psig (689.5 kPag): 578
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 160 | 20 In. Hg.: 160 | 30 In. Hg.: 160
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 75.3 | 20 In. Hg. (508 Mm. Hg.): 75.3 | 30 In. Hg. (762 Mm. Hg.): 75.3
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 123 | 10 In. Hg.: 153
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 57.9 | 10 In. Hg. (254 Mm. Hg.): 72.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.310 | 2 psig: 0.438 | 3 psig: 0.537 | 4 psig: 0.620 | 5 psig: 0.693 | 6 psig: 0.759 | 7 psig: 0.820 | 8 psig: 0.877 | 9 psig: 0.930 | 10 psig: 0.980 | 15 psig: 1.201 | 20 psig: 1.386 | 30 psig: 1.698 | 40 psig: 1.961 | 50 psig: 2.192 | 60 psig: 2.401 | 70 psig: 2.594 | 80 psig: 2.773 | 90 psig: 2.941 | 100 psig: 3.100
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 1.173 | 2 psig (13.8 kPag): 1.660 | 3 psig (20.7 kPag): 2.033 | 4 psig (27.6 kPag): 2.347 | 5 psig (34.5 kPag): 2.624 | 6 psig (41.4 kPag): 2.874 | 7 psig (48.3 kPag): 3.105 | 8 psig (55.2 kPag): 3.319 | 9 psig (62.1 kPag): 3.52 | 10 psig (69 kPag): 3.711 | 15 psig (103.4 kPag): 4.545 | 20 psig (137.9 kPag): 5.248 | 30 psig (206.9 kPag): 6.427 | 40 psig (275.8 kPag): 7.422 | 50 psig (344.8 kPag): 8.298 | 60 psig (413.7 kPag): 9.09 | 70 psig (482.7 kPag): 9.818 | 80 psig (551.6 kPag): 10.496 | 90 psig (620.6 kPag): 11.133 | 100 psig (689.5 kPag): 11.735
Specifications Connection A
.380" Press-Fit Insert
Specifications Cv
0.310
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
113
Specifications Screened
None
